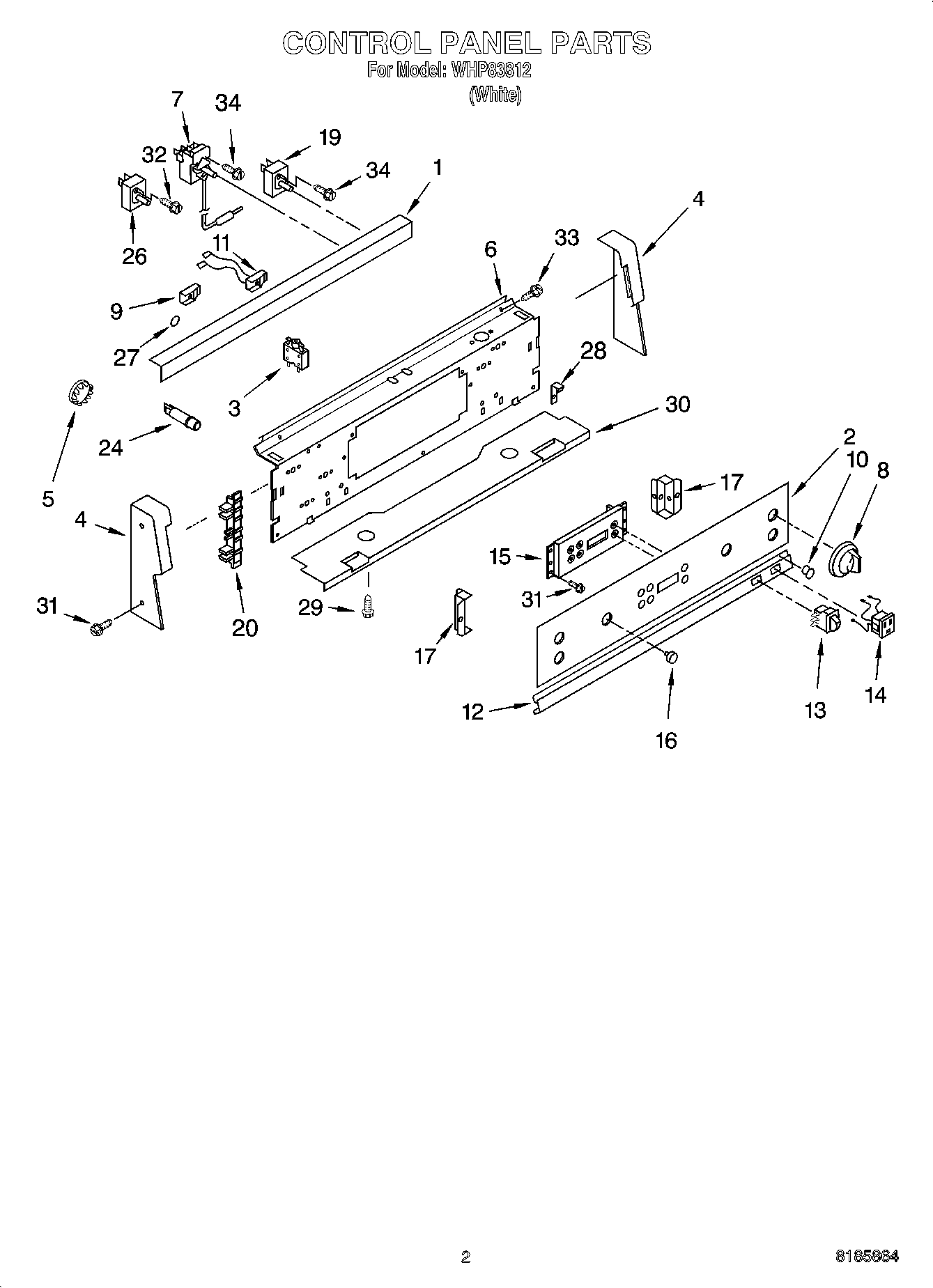

WHP83812 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Lamp Cover
2Console-Glass (Control Panel)
3Breaker, 15 Amp
4End Cap (Right)
4End Cap (Left)
5Button Plug (8 mm (2))
6Spacer, Timer
6Panel, Control
7Thermostat
8WP9752405FW Whirlpool Knob
9Light, Indicator (Surface Unit (2))
10Len`s Indicator (4)
11Light Module (2)
12Trim Strip
13Switch, Oven Light
14Outlet, Untimed
15Timer
16Knob, Timer (17) (White)
17WPL 9753304
19Infinite Switch (1800W)
19WP9750643 Whirlpool Infinite Switch
19WP9750646 Whirlpool Infinite Switch
20Insert (2) (White)
24Light, Pilot
26Switch, Selector
27WP9750343 Whirlpool Light Lens
28WPL 9753017
29WP3400832 Whirlpool Screw
30Base, Console
31WP4159387 Whirlpool Compactor Screw
32W11245710 Whirlpool Refrigerator Screw
33Panel, Control (Screw, (2) 8 x 3/8)
34WP3400882 Whirlpool Screw
