WHSE5240DCWW CONTROLS & BACKSPLASH

WHSE5240DCWW CONTROLS & BACKSPLASH

Written by

in

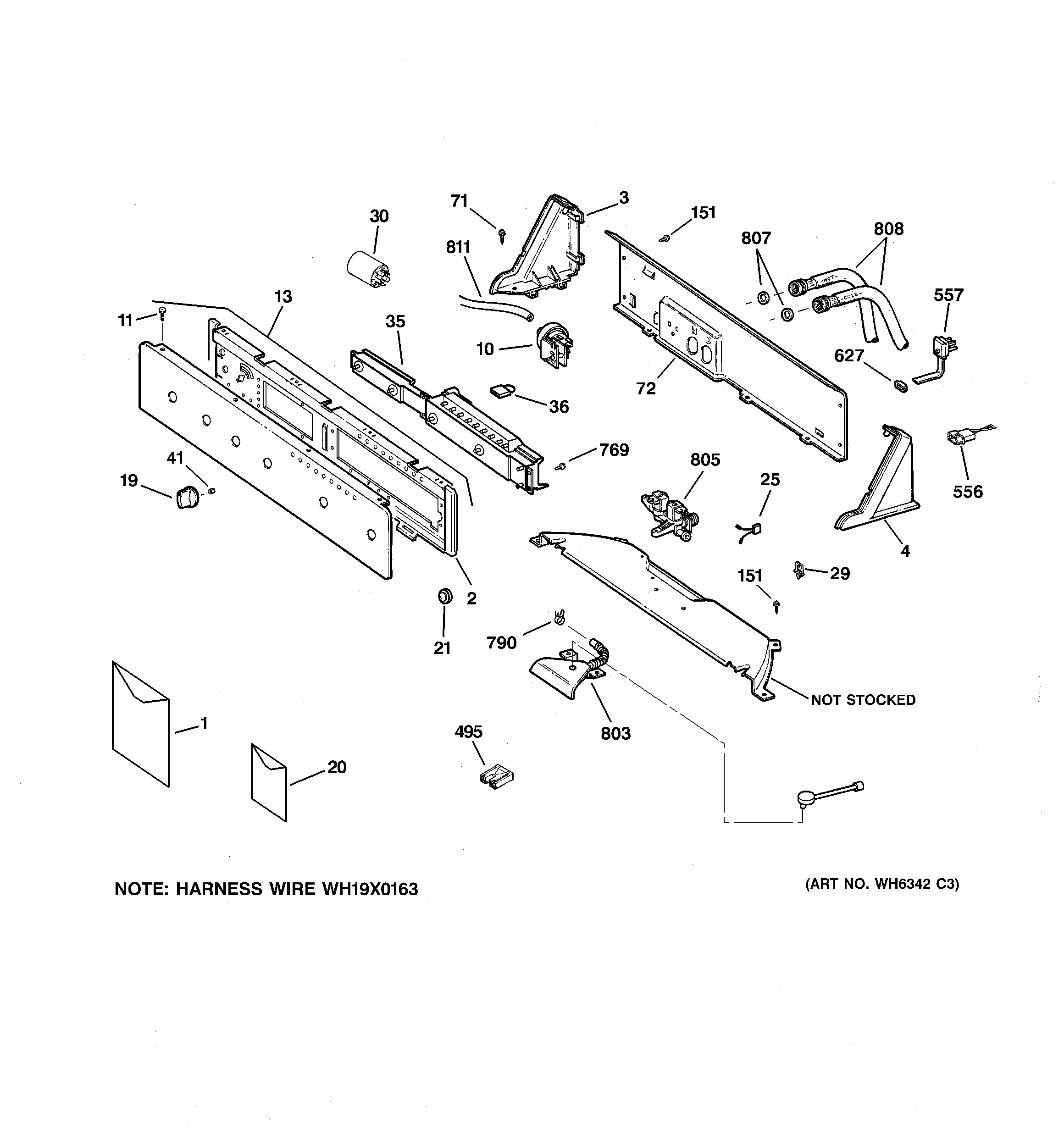

WHSE5240DCWW CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 49-90249
1GEN 31-15441
1GEN 31-15596
2GEN WH46X10096
3GEN WH42X2397
4GEN WH42X2398
10WH12X10093 GE Press Switch
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10512
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
20GEN WH49X10041
21WH01X10088 GE Start/stop Switch Button
25GEN WH12X10233
29GEN WH02X10054
30WH12X10408 GE Power Line Filter
35GEN WH12X10270
36HARNESS
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10118
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
495WD21X10355 GE Dishwasher Water Valve Housing Special
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10208
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803GEN WH41X10078
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
