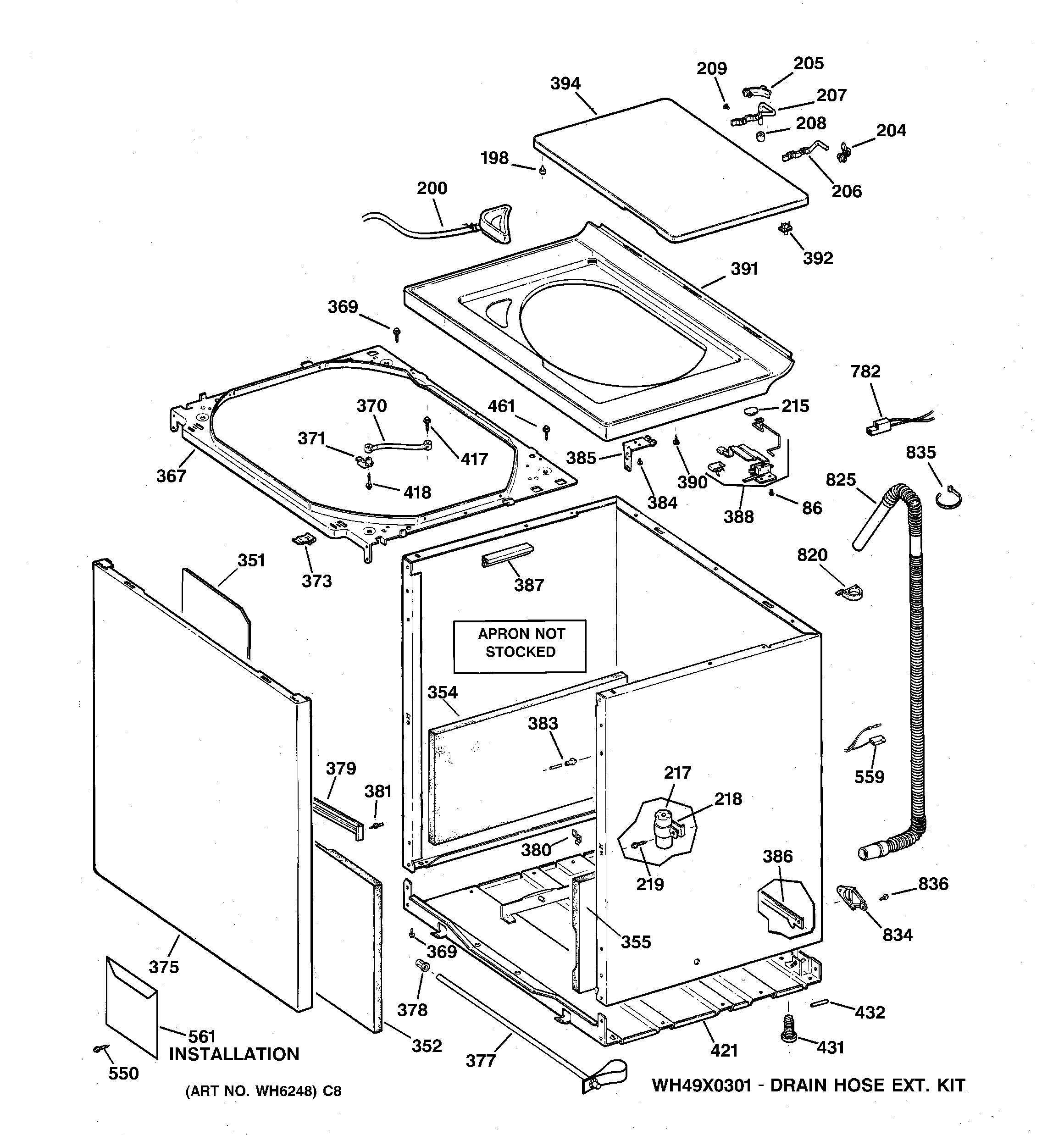

WISQ416AT8WW CABINET, COVER & FRONT PANEL

WISQ416AT8WW CABINET, COVER & FRONT PANEL

Written by

in

WISQ416AT8WW CABINET, COVER & FRONT PANEL

Products

PositionProduct
86GEN WH02X0940
198WH1X2722 GE Lid Bumper
200WH49X10010 GE Tub Cover Kit
204WH1X2741 GE BSHNG Hinge
205WH01X10025 GE Hinge Bushing
206WH1X2740 GE Hinge Wire Frame
207GEN WH01X2743
208GEN WH01X2742
209WH2X1211 GE Screw
215GEN WH01X2089
217GEN WH12X1041
218GEN WH01X2758
219GEN WH02X1220
351WH46X353 GE Front Panel Damper
352GEN WH46X10013
354GEN WH46X10022
355WH46X356 GE Left Side Panel
367GEN WH46X0364
369WH2X1217 GE Screw Assembly
370WH1X2727 GE Washer Tub Support Strap
371WH1X2726 GE Retaining Strap
373WH02X10279 GE Washer Locking Clip
375GEN WH46X0365
377SHIPPING BAR ASM
378WH1X2745 GE Plug Button
379GEN WH16X0540
380GEN WH02X1207
381WH2X1190 GE Ground Stud
383WH2X1189 GE Alignment Pin
384WH01X10423 GE Screw 6-20 B TRT 3/8 S
385WH01X10422 GE Cover Clip
386WH46X10094 GE Self-Leveling Bar
387WH41X10036 GE Conduit Preset
388GEN WH12X1043
390GEN WH01X2724
391GEN WH44X1235
392GEN WH01X2734
394GEN WH44X1232
417GEN WH02X0694
418WH02X10282 GE Screw 8-18 B IHW 1 S
421GEN WH46X10024
431WH2X1187 GE Leveling Assembly
432GEN WH02X1188
461WZ5X158D GE Screw Package of 12
550GEN WE02X0281
559GEN WH12X0538
561GEN WH49X0308
782WB17X5060 GE Oven Block Assembly
820WH1X2725 GE Antenna Clip
825WH41X10096 GE Washer Drain Hose
834WH16X513 GE Washer Drain Hose Clip
835WH1X2594 GE Tie Strap
836WH02X10002 GE Screw
