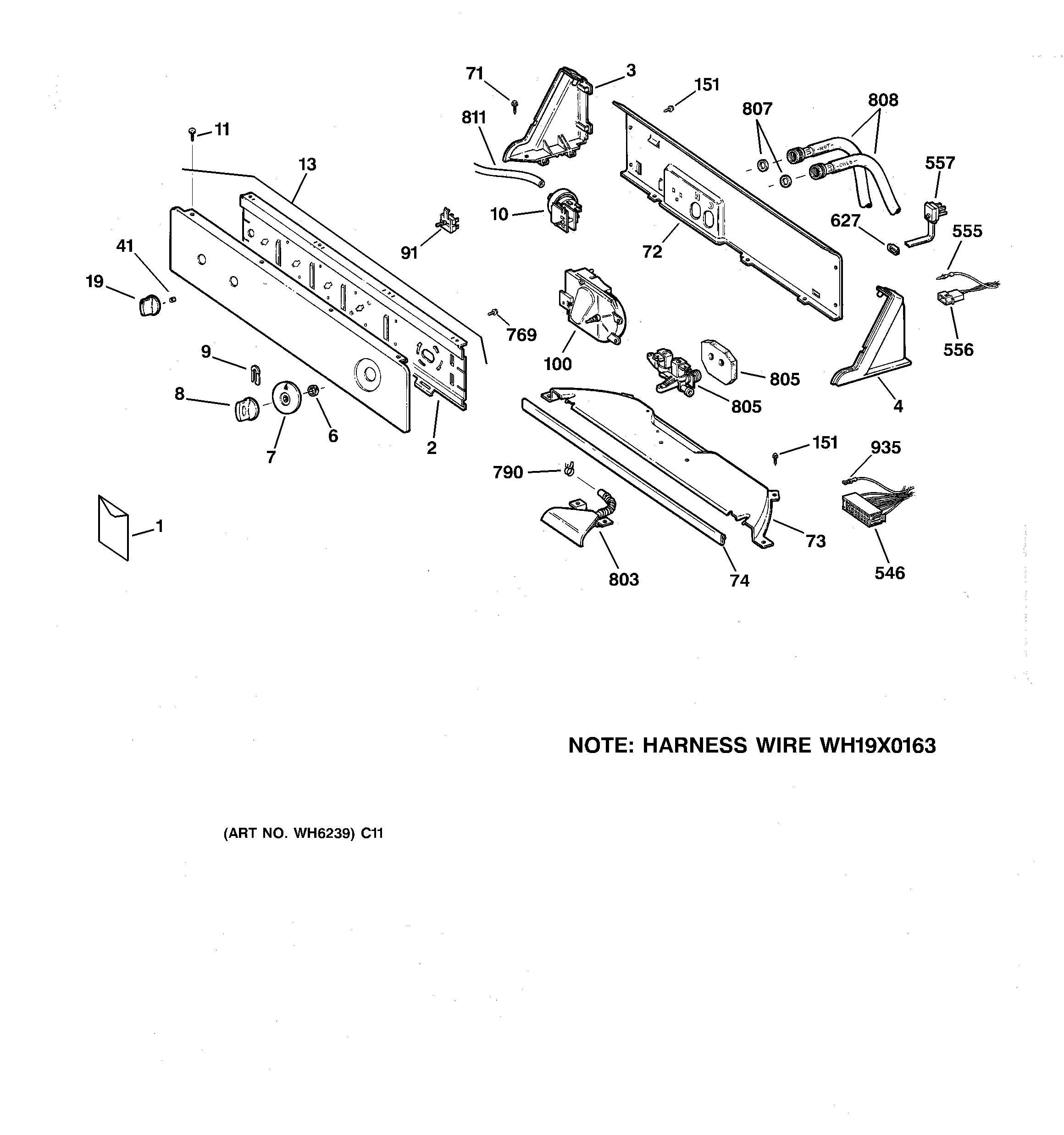

WISR106HT8WW CONTROLS & BACKSPLASH

WISR106HT8WW CONTROLS & BACKSPLASH

Written by

in

WISR106HT8WW CONTROLS & BACKSPLASH

Products

PositionProduct
1INSTRUCTION INSTALL
1GEN 31-15097
1MANUAL USE CARE
2GEN WH46X10019
3GEN WH42X2397
4GEN WH42X2398
6GEN WH02X0650
7WH11X10015 GE Timer Dial
8WH1X2754 GE Dryer Timer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10065 GE Washer Water Level Pressure Switch
11GEN WH02X1206
13GEN WH42X10030
19WH1X2721 GE Dryer Control Knob
41GEN WE01X0980?
71WH2X1205 GE Screw 8-18
72GEN WH42X2513
73GEN WH46X0341
74GEN WH08X0379
91WH12X10498 GE Washer Rotary Switch
100GEN WH12X10029
217GEN WH12X1041
218GEN WH01X2758
219GEN WH02X1220
546GEN WH12X0870
555GEN WB17X5053
556GEN WH12X0497
557GEN WH19X10005
627GEN WR01X1930
741WR1X1779 GE Refrigerator Stud Mounting Compressor
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
