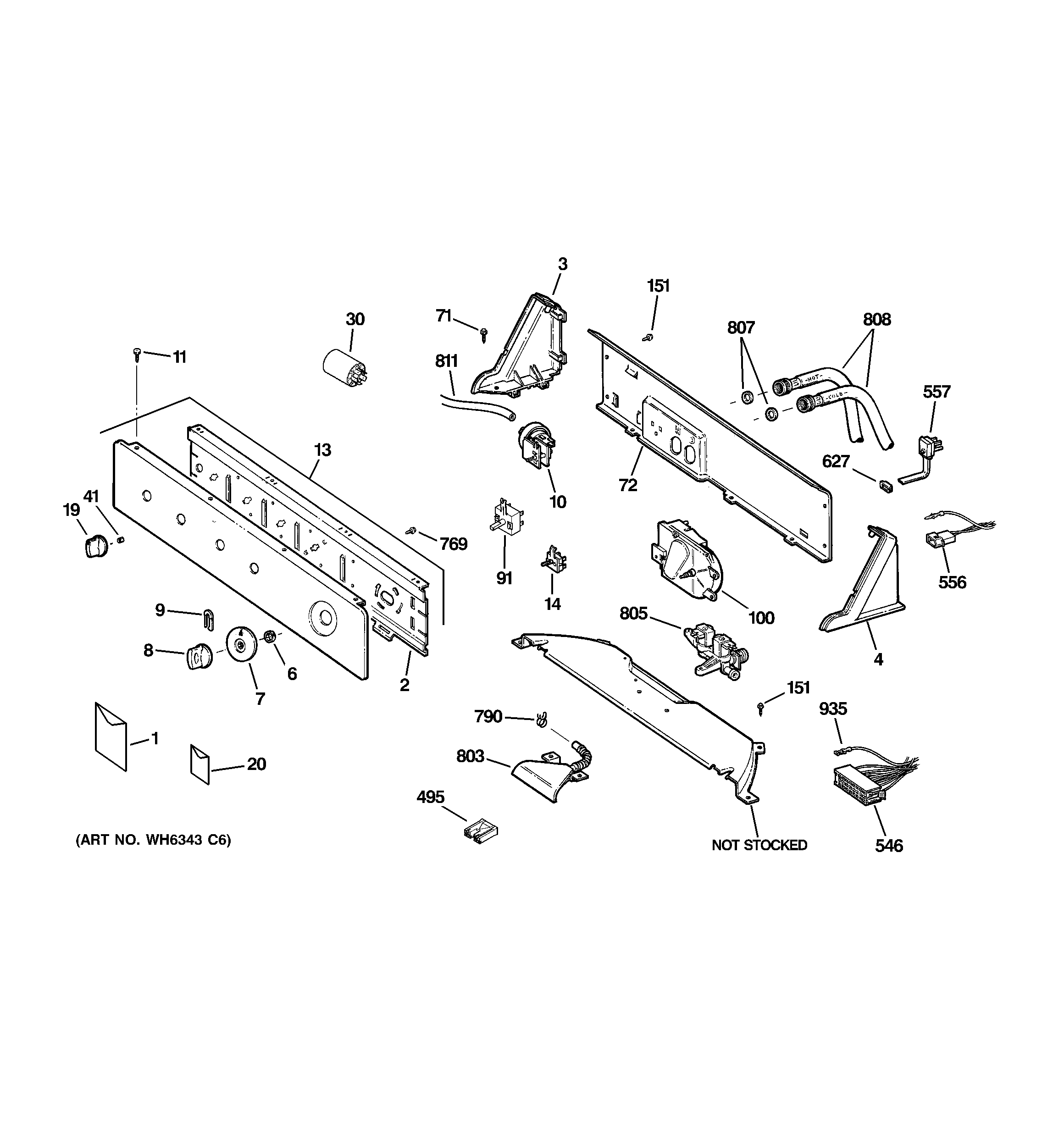

WJRR4170E6CC CONTROLS & BACKSPLASH

WJRR4170E6CC CONTROLS & BACKSPLASH

Written by

in

WJRR4170E6CC CONTROLS & BACKSPLASH

Products

PositionProduct
1GEN 31-15441
1GEN 31-15594
1PM MANUAL U&C P49-90296
2GEN WH46X10081
3GEN WH42X10311
4GEN WH42X10312
6WH02X10093 GE Washer Compression Ring
7GEN WH11X10039
8GEN WH01X10136
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10076 GE Washer Water Pressure Switch
11SCREW 8-18 AB FLT 9/16 S
13GEN WH42X10572
14GEN WH12X1007
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
20GEN WH49X10041
30WH12X10408 GE Power Line Filter
41GEN WH01X10106
71WH2X1205 GE Screw 8-18
72GEN WH46X10118
91WH12X10498 GE Washer Rotary Switch
100GEN WH12X10297
151WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
495WD21X10355 GE Dishwasher Water Valve Housing Special
546GEN WH12X10205
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10208
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
