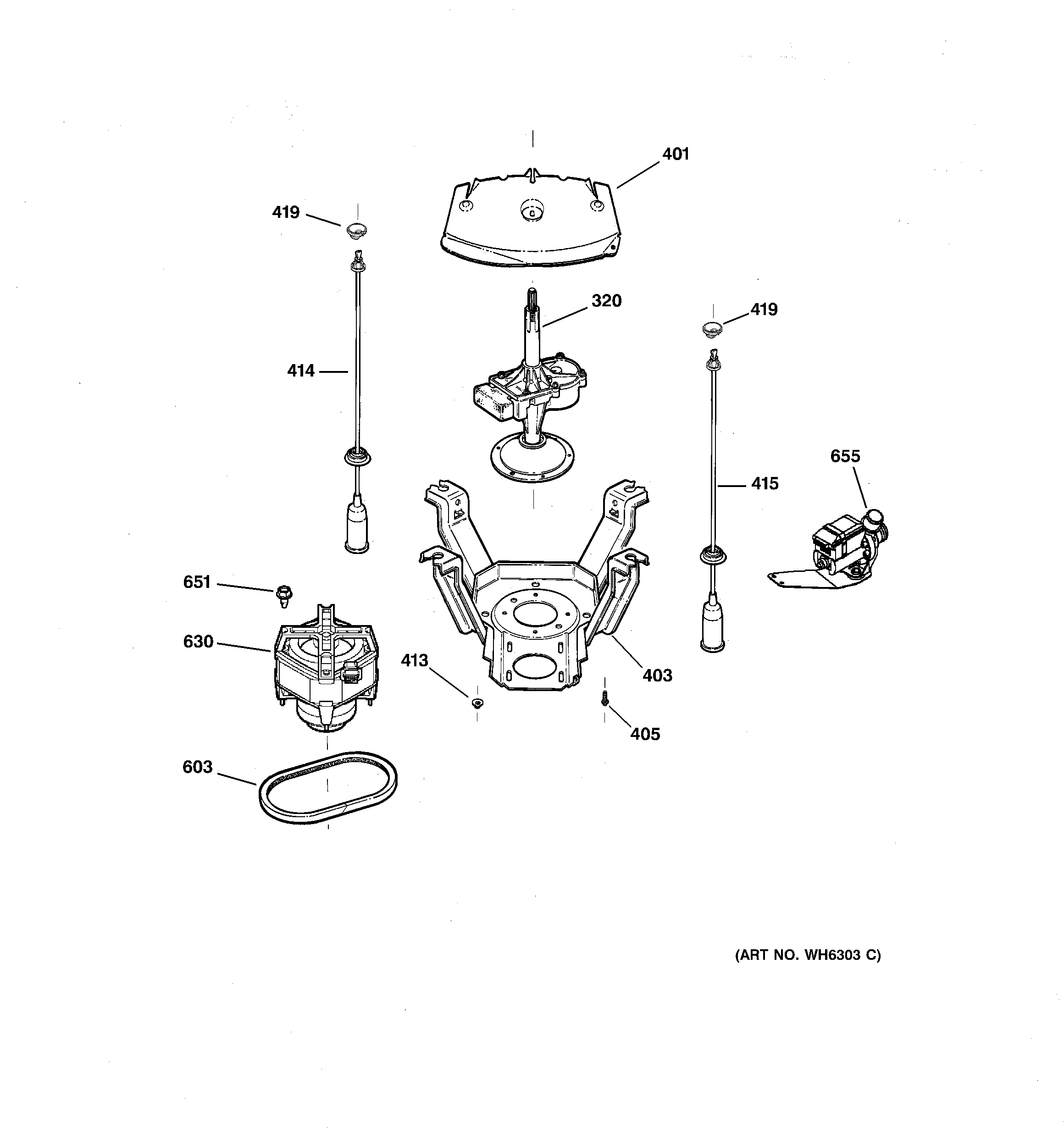

WJSE4150B2CC SUSPENSION, PUMP & DRIVE COMPONENTS

WJSE4150B2CC SUSPENSION, PUMP & DRIVE COMPONENTS

Written by

in

WJSE4150B2CC SUSPENSION, PUMP & DRIVE COMPONENTS

Products

PositionProduct
320GEN WH38X10002
401WH45X10046 GE Tub Shield
403GEN WH17X10003
405WH2X1201 GE 1/4-20 Screw
413GEN WH02X1204
414ROD/SPRING BLK
415WH16X543 GE Dryer Suspension Rod and Spring Yellow
419WH01X10001 GE Washer Support Socket Tub Suspension Rod
603WH1X2026 GE Washer Drive Belt
630WH20X10019 GE Motor 2-Speed Clutchless
651WH02X10123 GE Screw 1/4-20 TPT
655WH23X10030 GE Washer Drain Pump
