WJSR2080V3WW CONTROLS & BACKSPLASH

WJSR2080V3WW CONTROLS & BACKSPLASH

Written by

in

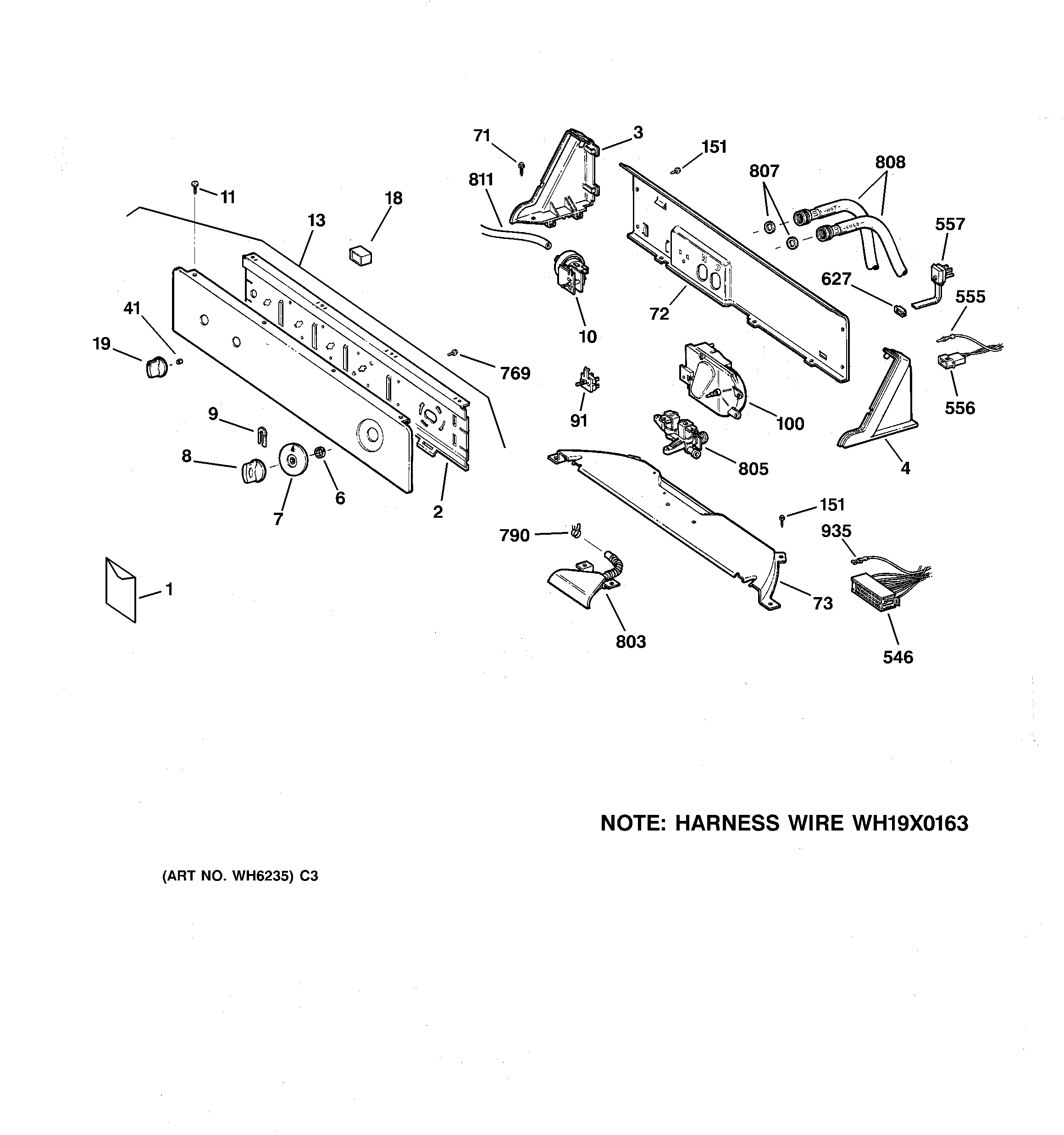

WJSR2080V3WW CONTROLS & BACKSPLASH

Products

PositionProduct
1MANUAL USE & CARE
1INSTRUCTION INSTALL
1GEN 31-15420
2GEN WH46X10019
3GEN WH42X2397
4GEN WH42X2398
6GEN WH02X0650
7WH11X10015 GE Timer Dial
8WH1X2754 GE Dryer Timer Control Knob
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10065 GE Washer Water Level Pressure Switch
11GEN WH02X1206
13GEN WH42X10123
18GEN WH12X10090
19WH1X2721 GE Dryer Control Knob
41GEN WE01X0980?
71WH2X1205 GE Screw 8-18
72GEN WH46X10035
73GEN WH46X10040
91WH12X10498 GE Washer Rotary Switch
100GEN WH12X10062
389GEN WH01X10070
546GEN WH12X0870
555GEN WB17X5053
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10025
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
