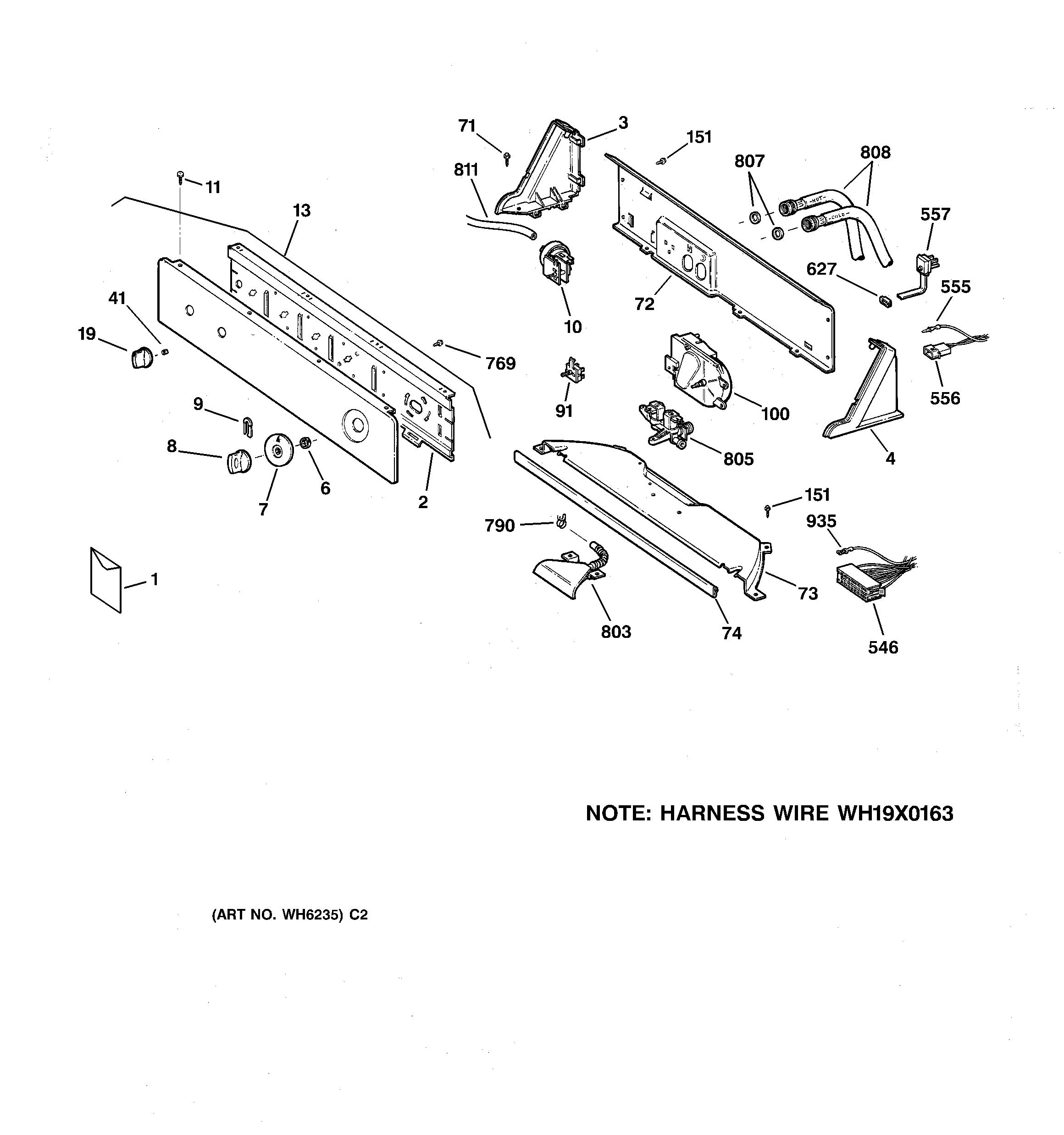

WJXR2080V0AA CONTROLS & BACKSPLASH

WJXR2080V0AA CONTROLS & BACKSPLASH

Written by

in

WJXR2080V0AA CONTROLS & BACKSPLASH

Products

PositionProduct
1INSTRUCTION INSTALL
1GEN 49-9959
1GEN 31-15240
2GEN WH46X10019
3END CAP LH AD
4END CAP RH AD
6GEN WH02X0650
7GEN WH11X0140
8GEN WH01X2755
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10065 GE Washer Water Level Pressure Switch
11GEN WE01X1270
13GEN WH42X10034
19WH1X2721 GE Dryer Control Knob
41GEN WE01X0980?
71WH2X1205 GE Screw 8-18
72GEN WH46X0337
73GEN WH46X0341
74GEN WH08X0379
91WH12X10498 GE Washer Rotary Switch
100WH12X1031 GE Dryer Timer Assembly
546GEN WH12X0870
555GEN WB17X5053
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10025
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
