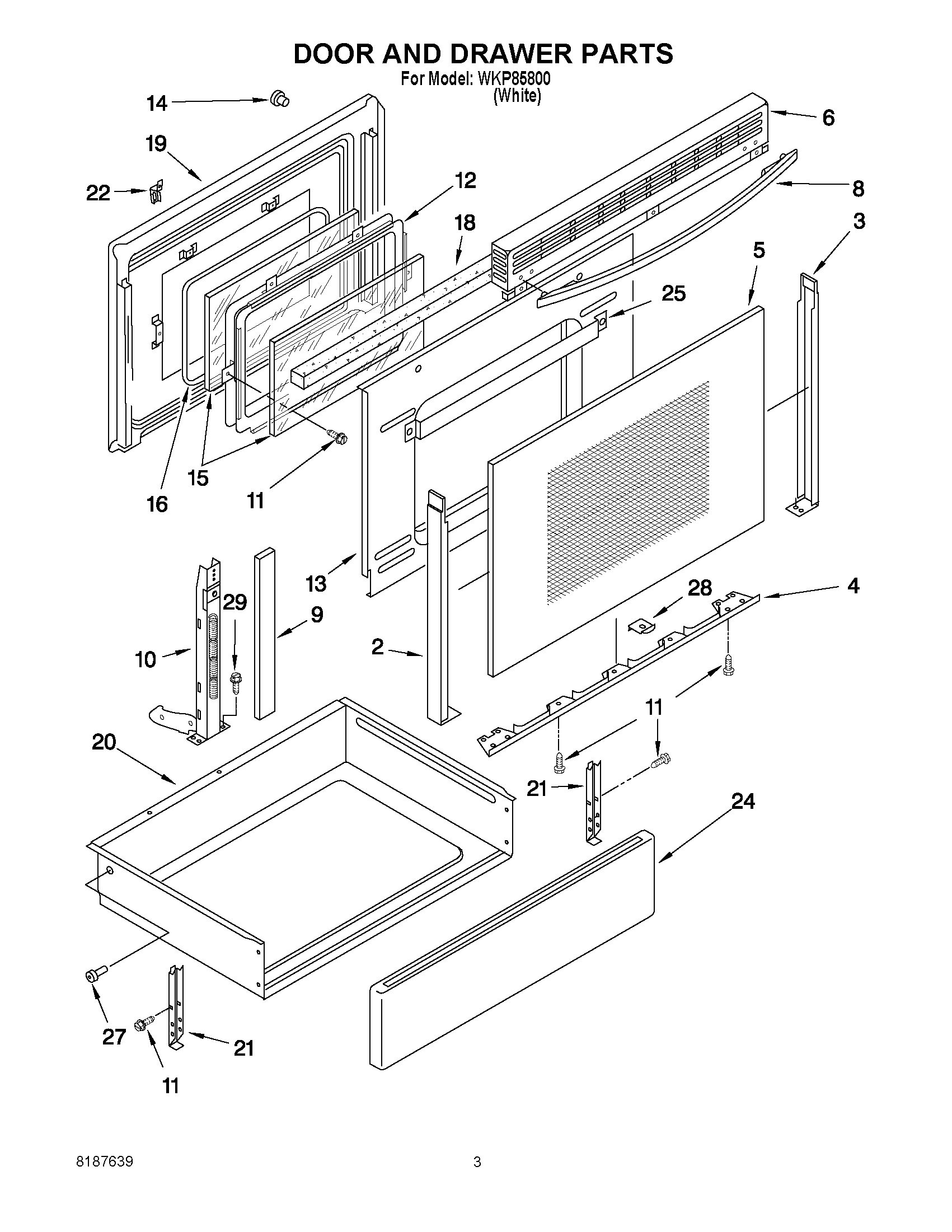

WKP85800 03 – DOOR AND DRAWER PARTS

WKP85800 03 – DOOR AND DRAWER PARTS

Written by

in

WKP85800 03 – DOOR AND DRAWER PARTS

Products

PositionProduct
2Trim, Door-Left (White)
3Trim, Door-Right (White)
4Trim, Door Bottom (White)
5Glass, Door Front
6Vent, Door (Gasket, Vent)
6Vent, Door (White)
8Handle, Door
9Gasket, Door Glass
10WP9782033 Whirlpool Door Hinge
11WP4159387 Whirlpool Compactor Screw
12Frame, Window
13Shield, Door
14238614 Whirlpool Bumper Hinge
15WP9781654 Whirlpool Door Glass
16WP9755177 Whirlpool Wind Gasket
18Insulation, Door
19Liner, Door
20Drawer & Roller
21Bracket, Drawer
22Retainer, Glass
24Front, Drawer (White)
25Channel, Heat
27814229 Whirlpool Primary Roller
27WP90296 Whirlpool Clip
28Spacer, Door (8)
29Screw (4) 10 x 1/2
