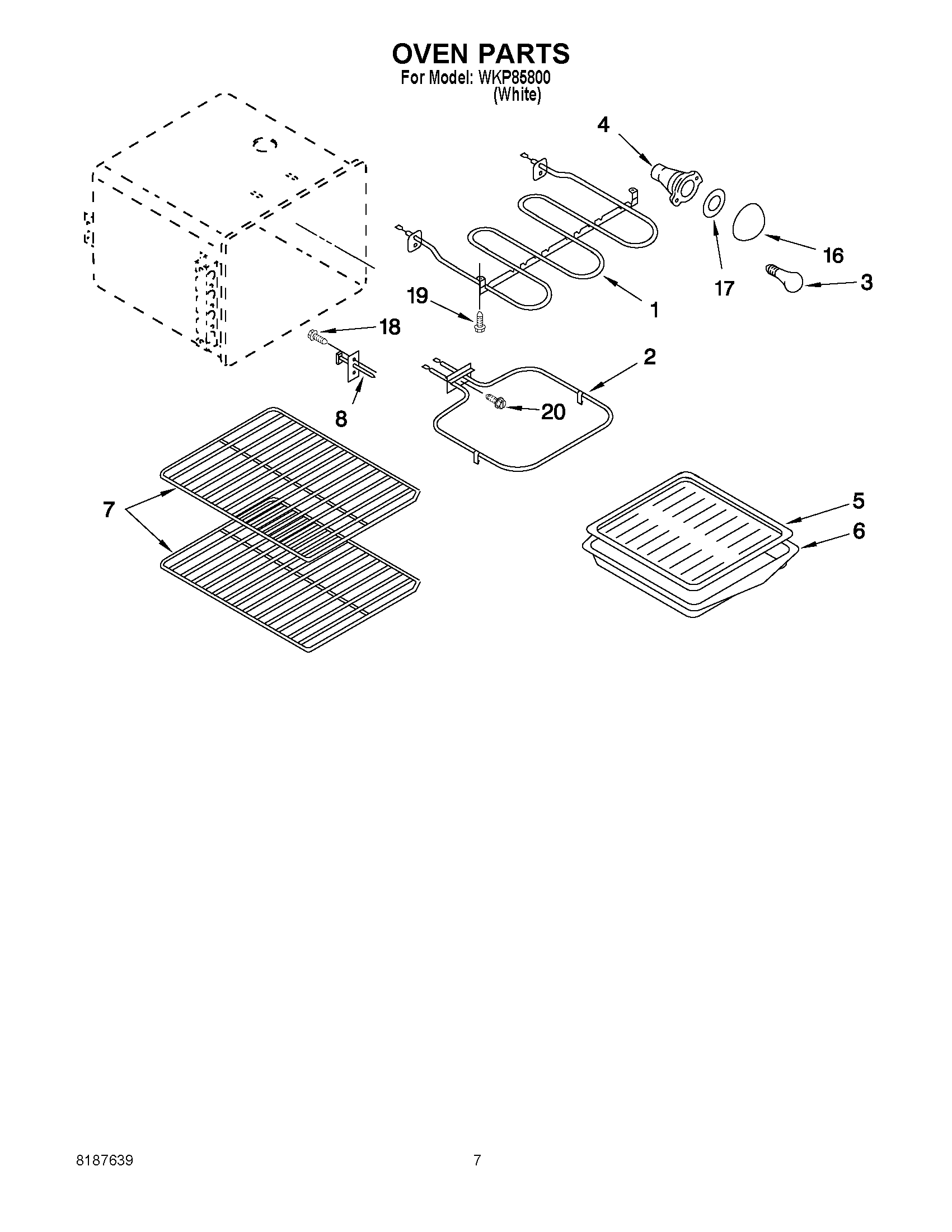

WKP85800 05 – OVEN PARTS

Written by

Products

Position	Product
1	Element, Broil
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
6	4396923 Whirlpool Broil Pan Set Gray Porcelain
7	Rack, Standard
8	Sensor
16	WP9781049 Whirlpool Light Lens
17	WP3184533 Whirlpool Range Light Lens Gasket
18	WP4159387 Whirlpool Compactor Screw
19	Screw
20	340184 Whirlpool Screw
