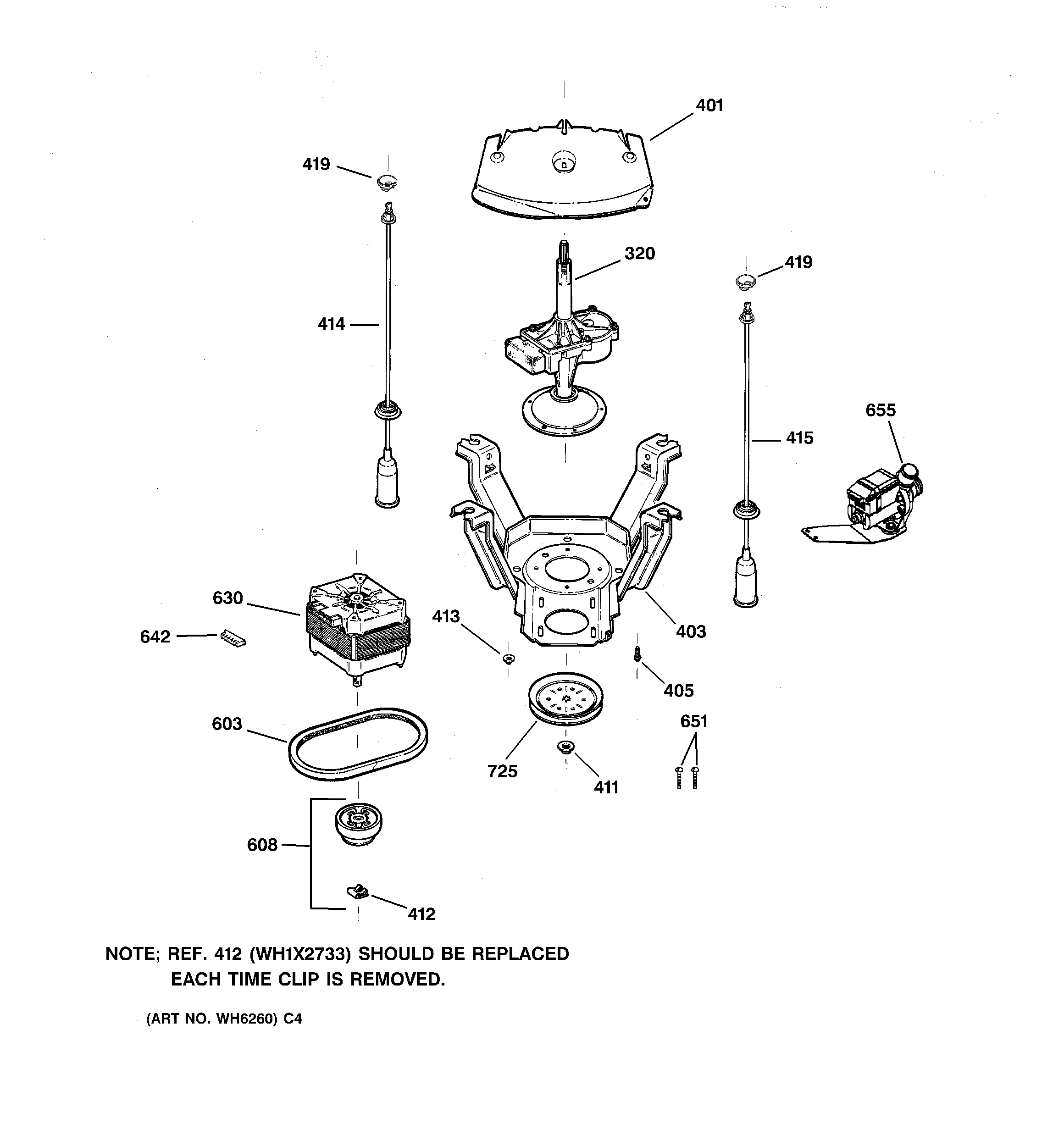

WKSE6280B3WW SUSPENSION, PUMP & DRIVE COMPONENTS

WKSE6280B3WW SUSPENSION, PUMP & DRIVE COMPONENTS

Written by

in

WKSE6280B3WW SUSPENSION, PUMP & DRIVE COMPONENTS

Products

PositionProduct
320GEN WH38X10002
401WH45X10046 GE Tub Shield
403GEN WH17X10003
405WH2X1201 GE 1/4-20 Screw
411WH2X1203 GE Pulley Nut
412GEN WH01X2733
413GEN WH02X1204
414ROD/SPRING BLK
415WH16X543 GE Dryer Suspension Rod and Spring Yellow
419WH01X10001 GE Washer Support Socket Tub Suspension Rod
603WH1X2026 GE Washer Drive Belt
608GEN WH05X0253
630WH49X10035 GE Washer Drive Motor Kit
642GEN WH12X1059
651WH02X10123 GE Screw 1/4-20 TPT
655WH23X10030 GE Washer Drain Pump
725GEN WH07X0126
