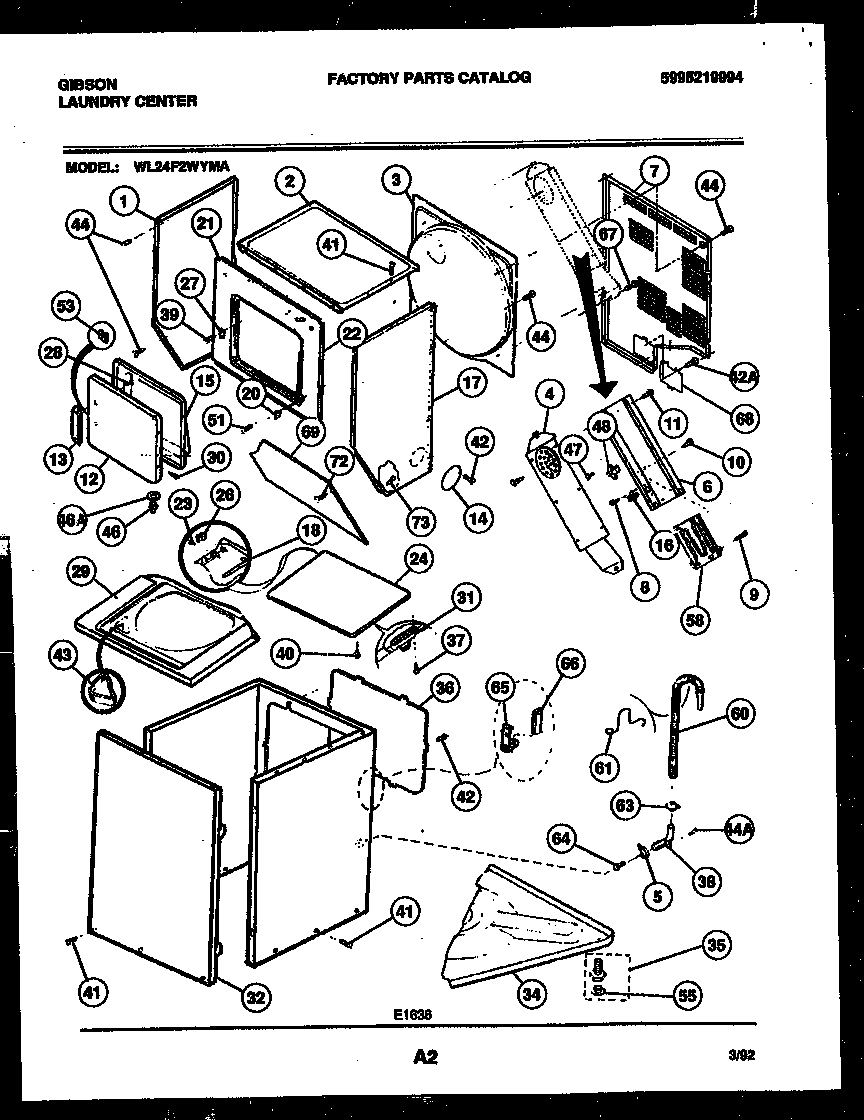

WL24F2WYMA 02 – CABINET PARTS

Products

Position	Product
*47773	WCI 5303937030
*47774	134890500 Frigidaire Spring
1	PANEL – SIDE LH – ALMD
1	WCI 5303209761
2	WCI 3204948
2	WCI 3204949
3	WCI 3017111
4	PANEL-FRONT
6	WCI 3205055
7	PANEL-VENT
9	SCREW (2)
11	WCI 3017890
12	WCI 3016429
12	WCI 3016427
13	WCI 5303285455
14	WCI 3204952
14	WCI 3204953
15	WCI 3016433
15	WCI 3016435
16	WCI 08015853
17	WCI 5303209764
17	WCI 5303209763
18	HINGE BAR-LH
20	HINGE-DOOR
21	WCI 3204961
21	PANEL-FRONT (ALMOND)
22	WCI 5303206877
23	SCREW
24	WCI 3204965
24	LID (ALMOND)
26	5303208743 Frigidaire Grommet
27	WCI 3016439
28	131205100 Frigidaire Screw
29	PANEL-TOP (ALMOND)
29	WCI 5303207099
30	SCREW (8)
31	131390000 Frigidaire Door Catch-Strike
32	WCI 3204973
32	PANEL-FRONT (ALMOND)
34	WCI 5303283018
35	134548800 Frigidaire Washer Leg Levelling
36	PANEL-REAR ACCESS
37	3204368 Frigidaire Screw-Strike
38	COUPLER – DRAIN HOSE
39	WCI 3161237
40	WCI 3204981
41	SCREW
42	131302800 Frigidaire Drum Vane Screw
42A	131168200 Frigidaire Dryer Screw
43	WCI 3204983
44A	WCI 5303209461
44	WCI 08011280
46A	WCI 5303208633
46	WCI 3016440
47	WCI 3204269
48	WCI 5303208647
51	WCI 5303285467
53	PLATE-STRIKE
55	PAD-LEG
57	WCI 5303161185
58	WCI 08015795
60	WCI 3205414
61	RETAINER
63A	WCI 3161250
63	WCI 5364154013
64	3204375 Frigidaire Check Valve
65	WCI 5303161252
66	WCI 5308014903
68	WCI 5303212087
69	WCI 3204991
69	PANEL-ACCESS (ALMOND)
72	WCI 5308011318
73	SCREW (2)
