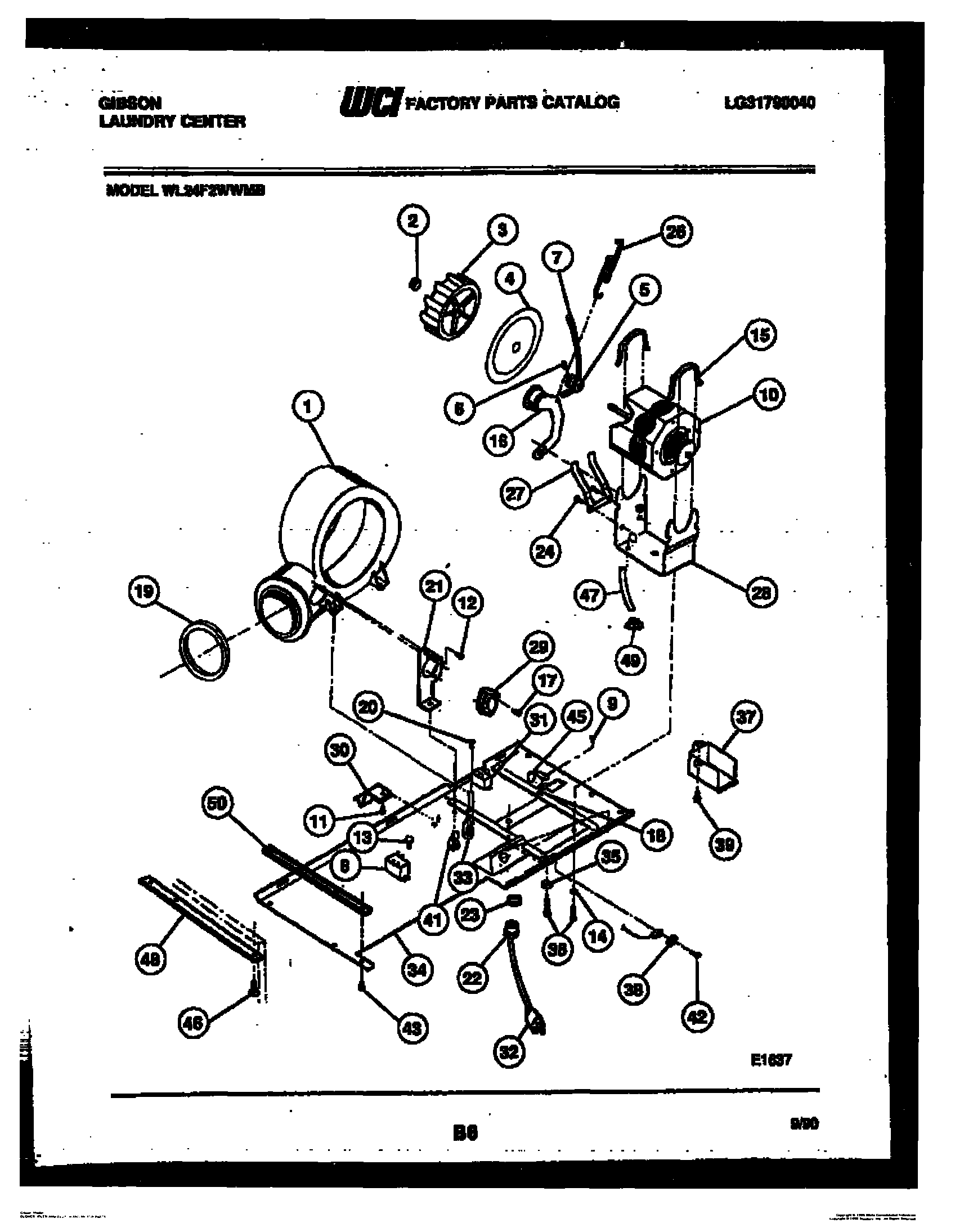

WL24F2WYMB 04 – BLOWER, IDLER ARM CLUTCH AND MOTOR

Products

Position	Product
*50463	WCI 5306598047
1	WCI 5303209767
2	WCI 5308001875
3	WCI 5303209769
4	PLATE - HOUSING
5	WCI 5303211473
6	WCI 5308027520
7	WCI 5303161099
8	WCI 3205062
9	SCREW (2)
10	WCI 5303209771
13	WCI 5303209426
14	WCI 5363602000
15	WCI 5308002293
16	WCI 5303161103
17	131168200 Frigidaire Dryer Screw
18	WCI 5379171000
19	WCI 5303209442
20	WCI 08011280
21	WCI 3016464
22	5303209428 Frigidaire Serv.Cord Bushing
23	WCI 3205063
26	WCI 5308015828
27	WCI 08015824
28	CRADLE MOTOR
29	WCI 5308004644
31	WCI 5308004087
32	WCI 08004650
33	131205100 Frigidaire Screw
34	BASE-DRYER
35	WCI 5308002468
38	WCI 08001572
41	WCI 08004646
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
45	WCI 08006557
46	SCREW (2)
47	5304401845 Frigidaire Tube Pressure
48	BRACE
49	WCI 08006559
50	WCI 3016469
