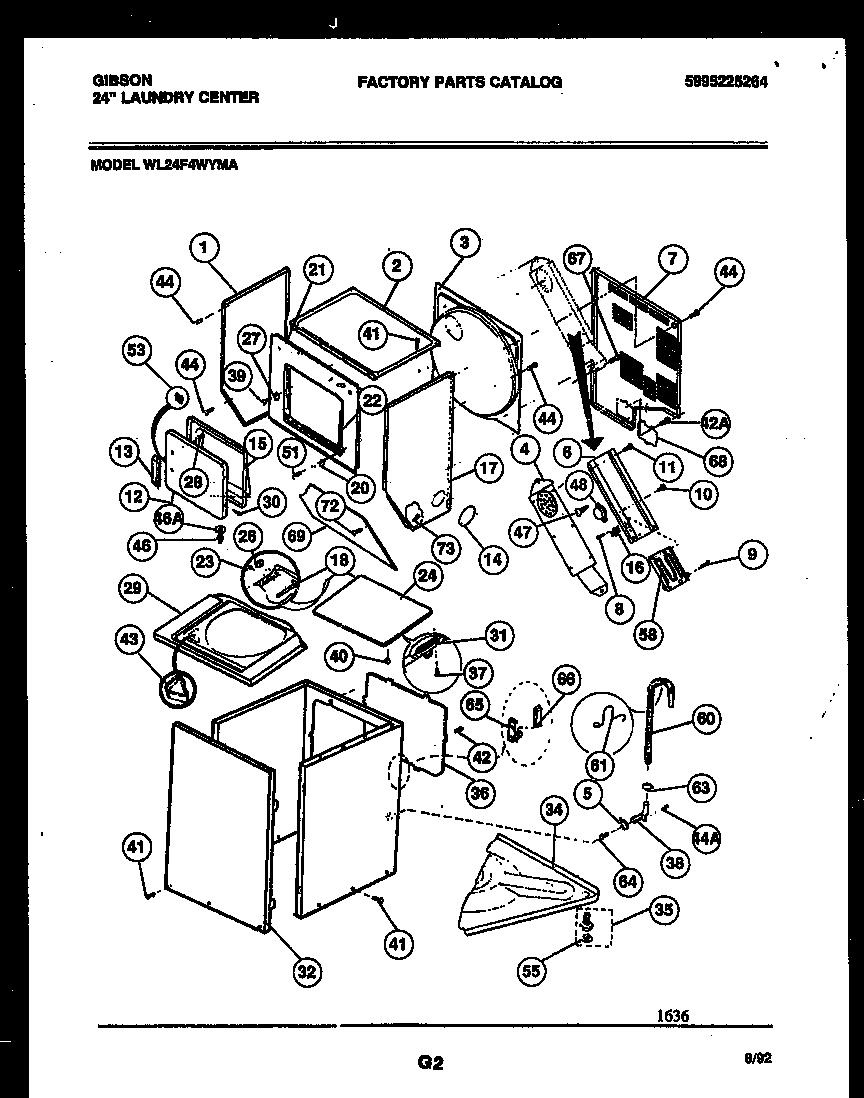

WL24F4WYMA 02 – CABINET PARTS

Products

Position	Product
*51905	WCI 5303937030
*51906	134890500 Frigidaire Spring
1A	PANEL – SIDE LH – ALMD
1	WCI 5303209761
2	WCI 3204949
2	WCI 3204948
3	WCI 3017111
4	PANEL-FRONT
6	WCI 3204951
7	PANEL-VENT
9	SCREW (2)
12	WCI 3016429
12	WCI 3016427
13	WCI 5303285455
14	WCI 3204953
14	WCI 3204952
15	WCI 3016433
15	WCI 3016435
16	WCI 5308015856
17	WCI 5303209763
17	WCI 5303209764
18	HINGE BAR-LH
20	HINGE-DOOR
21	PANEL-FRONT (ALMOND)
21	WCI 3204961
22	WCI 5303206877
23	SCREW
24	WCI 3204965
24	LID (ALMOND)
26	5303208743 Frigidaire Grommet
27	WCI 3016439
28	131205100 Frigidaire Screw
29	PANEL-TOP (ALMOND)
29	WCI 5303207099
30	SCREW (8)
31	131390000 Frigidaire Door Catch-Strike
32	PANEL-FRONT (ALMOND)
32	WCI 3204973
34	WCI 5303283018
35	134548800 Frigidaire Washer Leg Levelling
36	PANEL-REAR ACCESS
37	3204368 Frigidaire Screw-Strike
38	COUPLER – DRAIN HOSE
39	WCI 3161237
40	WCI 3204981
41	SCREW
42	131302800 Frigidaire Drum Vane Screw
43	WCI 3204983
44A	WCI 5303209461
44	WCI 08011280
46A	WCI 5303208633
46	WCI 3016440
47	WCI 3204269
48	WCI 5303211472
51	WCI 5303285467
53	PLATE-STRIKE
55	PAD-LEG
57	WCI 5303161185
58	WCI 5303161050
60	WCI 3205414
61	RETAINER
63	WCI 5364154013
64	3204375 Frigidaire Check Valve
65	WCI 5303161252
66	WCI 5308014903
67	131168200 Frigidaire Dryer Screw
68	WCI 5303212087
69	PANEL-ACCESS (ALMOND)
69	WCI 3204991
72	WCI 5308011318
73	SCREW (2)
