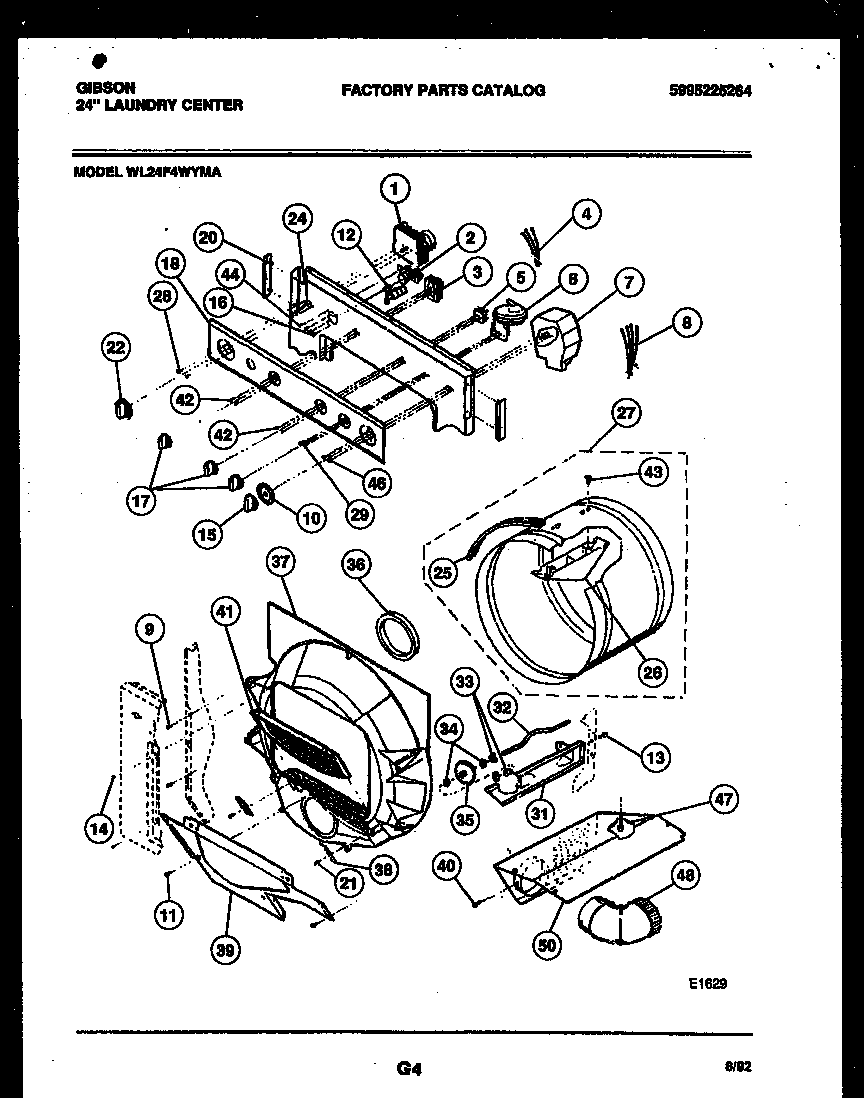

WL24F4WYMA 03 – CONTROL, DRUM AND BLOWER PARTS

Products

Position	Product
*51914	RESISTOR
*51913	WCI 08008454
*51913	WCI 5303208455
*51914	WCI 5303004951
*51913	Spacer,washer ,timer shaft
*51914	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	WCI 5393212526
2	WCI 5303209765
3	WCI 3204994
4	WCI 5303289658
5	WCI 5303017895
6	WCI 5303283044
7	WCI 5303283045
8	WCI 5303283046
10	WCI 3204999
11	131205100 Frigidaire Screw
12	WCI 3205000
13	WCI 08011280
14	WCI 5303285467
15	WCI 3205947
17	WCI 3205948
18	PANEL - CONTROL
20	WCI 3205006
21	216858001 Frigidaire Refrigerator Screw
22	KNOB & DIAL ASSY
24	WCI 3205008
25	WCI 5303286418
26	BAFFLE-DRUM (3)
27	WCI 3205010
31	WCI 5303161080
31	WCI 5303161081
32	WCI 5308004076
33	SNAP RING (4)
34	WCI 08012152
35	WCI 5308004077
36	WCI 5303209445
37	WCI 5303288388
38	GUIDE (2)
39	COVER-LINT HSG
40	SCREW (2)
41	WCI 3205015
42	WCI 3161259
44	WCI 08010804
46	WCI 08001544
47	WCI 3205016
48	WCI 3205017
50	WCI 3205018
