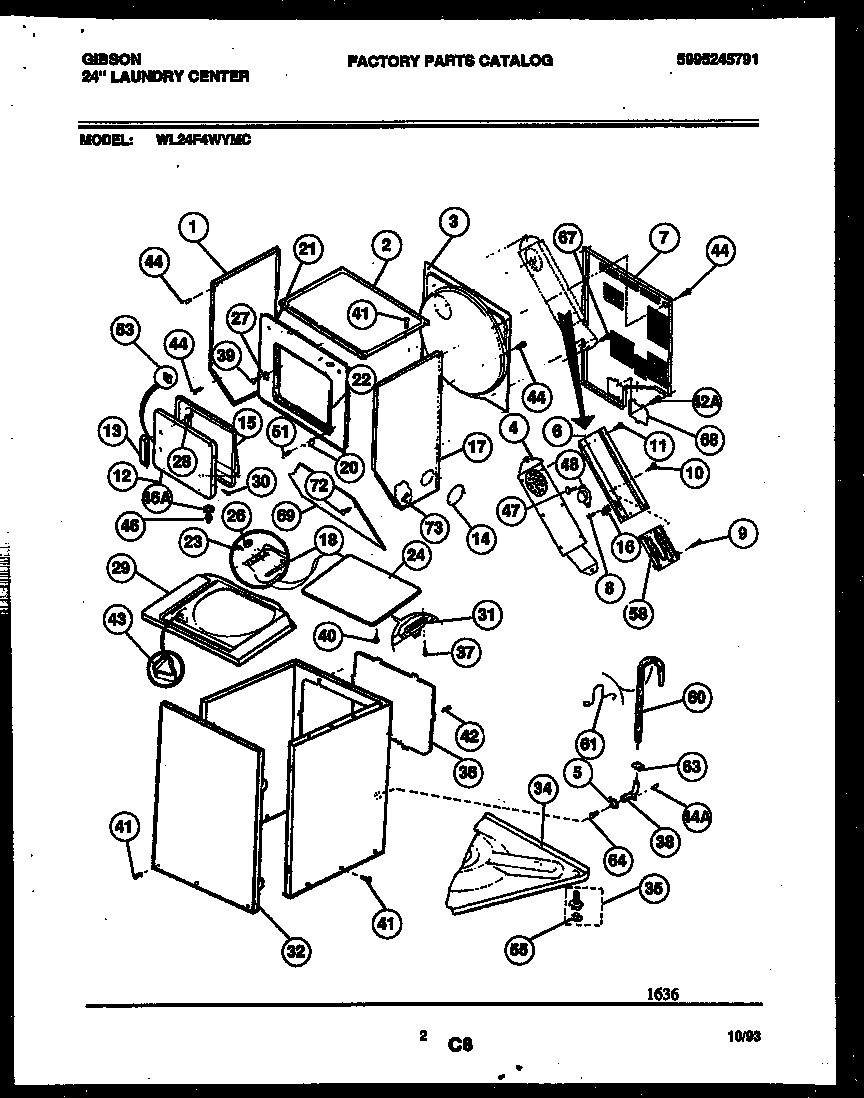

WL24F4WYMC 02 – CABINET PARTS

Products

Position	Product
*66325	134890500 Frigidaire Spring
*66325	WCI 5303937030
*66326	WCI 08027621
*66326	WCI 3204957
1	PANEL - SIDE LH - ALMD
1	WCI 5303209761
2	WCI 3204949
2	WCI 3204948
3	WCI 3017111
4	PANEL-FRONT
5	WCI 5364154013
6	WCI 3204951
7	PANEL-VENT
9	SCREW (2)
12	WCI 3016427
12	WCI 3016429
13	WCI 5303285455
14	WCI 3204952
14	WCI 3204953
15	WCI 3016435
15	WCI 3016433
16	WCI 5308015856
17	WCI 5303209764
17	WCI 5303209763
18	HINGE BAR-LH
20	HINGE-DOOR
21	PANEL-FRONT (ALMOND)
21	WCI 3204961
22	WCI 5303206877
23	SCREW
24	LID (ALMOND)
24	WCI 3204965
26	5303208743 Frigidaire Grommet
27	WCI 5303292720
28	131205100 Frigidaire Screw
29	WCI 5303207099
29	PANEL-TOP (ALMOND)
30	SCREW (8)
31	131390000 Frigidaire Door Catch-Strike
32	WCI 3204973
32	PANEL-FRONT (ALMOND)
34	WCI 131157606
35	134548800 Frigidaire Washer Leg Levelling
36	PANEL-REAR ACCESS
37	3204368 Frigidaire Screw-Strike
38	WCI 5308015078
39	WCI 3161237
40	WCI 3204981
41	SCREW
42	131302800 Frigidaire Drum Vane Screw
43	WCI 3204983
44A	WCI 3204984
44	WCI 08011280
46	WCI 3016440
46A	WCI 5303208633
47	WCI 3204269
48	WCI 5303209894
51	WCI 5303285467
53	PLATE-STRIKE
55	PAD-LEG
57	WCI 5303161185
58	WCI 5303161050
60	WCI 5303292372
61	RETAINER
63	WCI F140887026
64	WCI 5308014555
67	131168200 Frigidaire Dryer Screw
68	WCI 5303212087
69	PANEL-ACCESS (ALMOND)
69	WCI 3204991
72	WCI 5308011318
73	SCREW (2)
