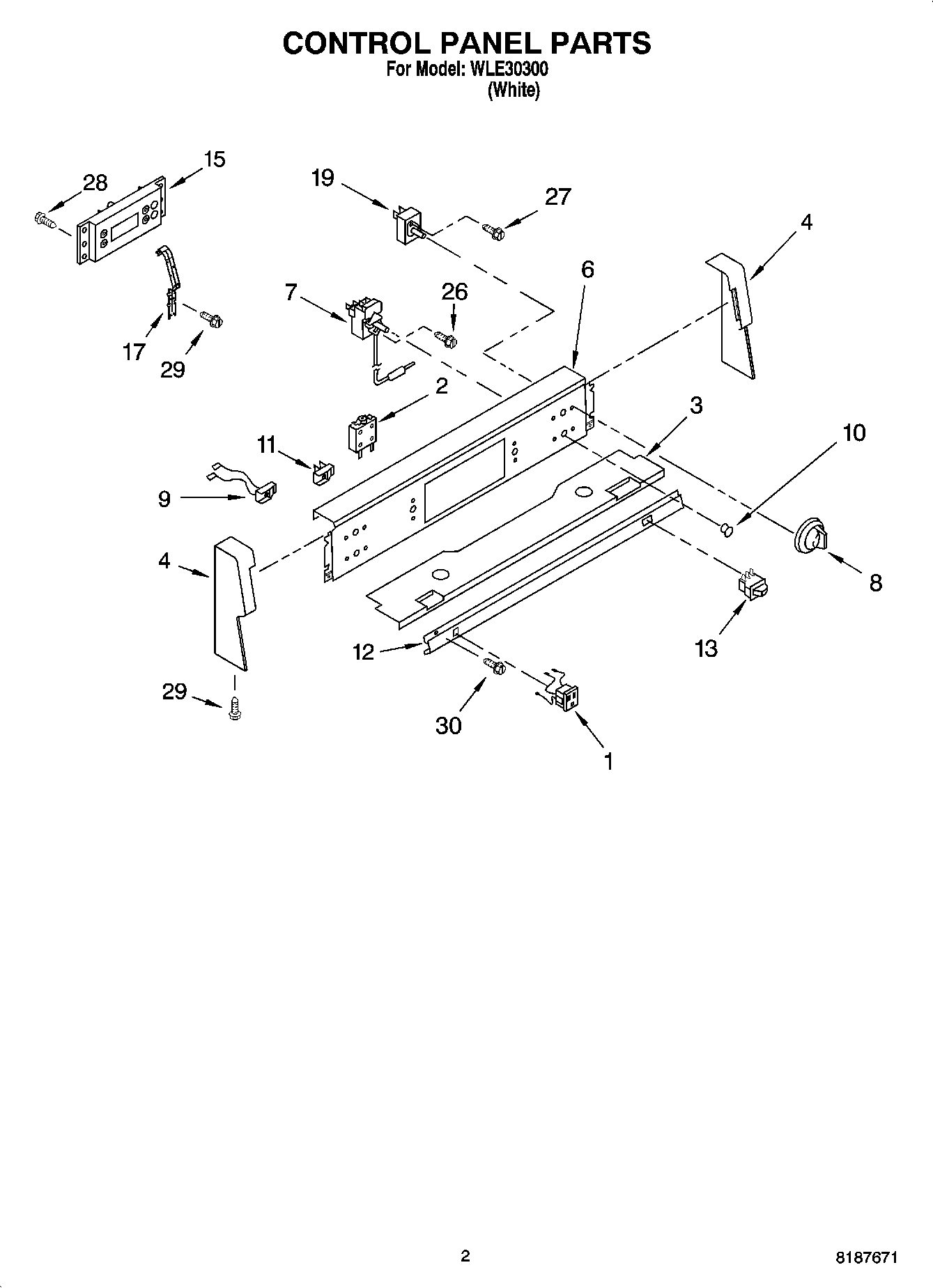

WLE30300 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Outlet, Untimed
2	Breaker, 15 Amp
3	Base, Console
4	End Cap (Left)
4	End Cap (Right)
6	Panel, Control
7	Thermostat
8	WP9752405FW Whirlpool Knob
9	Light, Indicator (Oven - Thermostat)
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator (Surface Unit (2))
12	Trim Strip
13	Switch, Oven Light
15	Timer
17	Bracket, Timer
19	WP9750641 Whirlpool Infinite Switch
19	WP9750638 Whirlpool Infinite Switch
26	Screw (2)
27	WP3400882 Whirlpool Screw
28	Screw (4) 10 x 1/2
29	WP4159387 Whirlpool Compactor Screw
30	WP3400832 Whirlpool Screw
