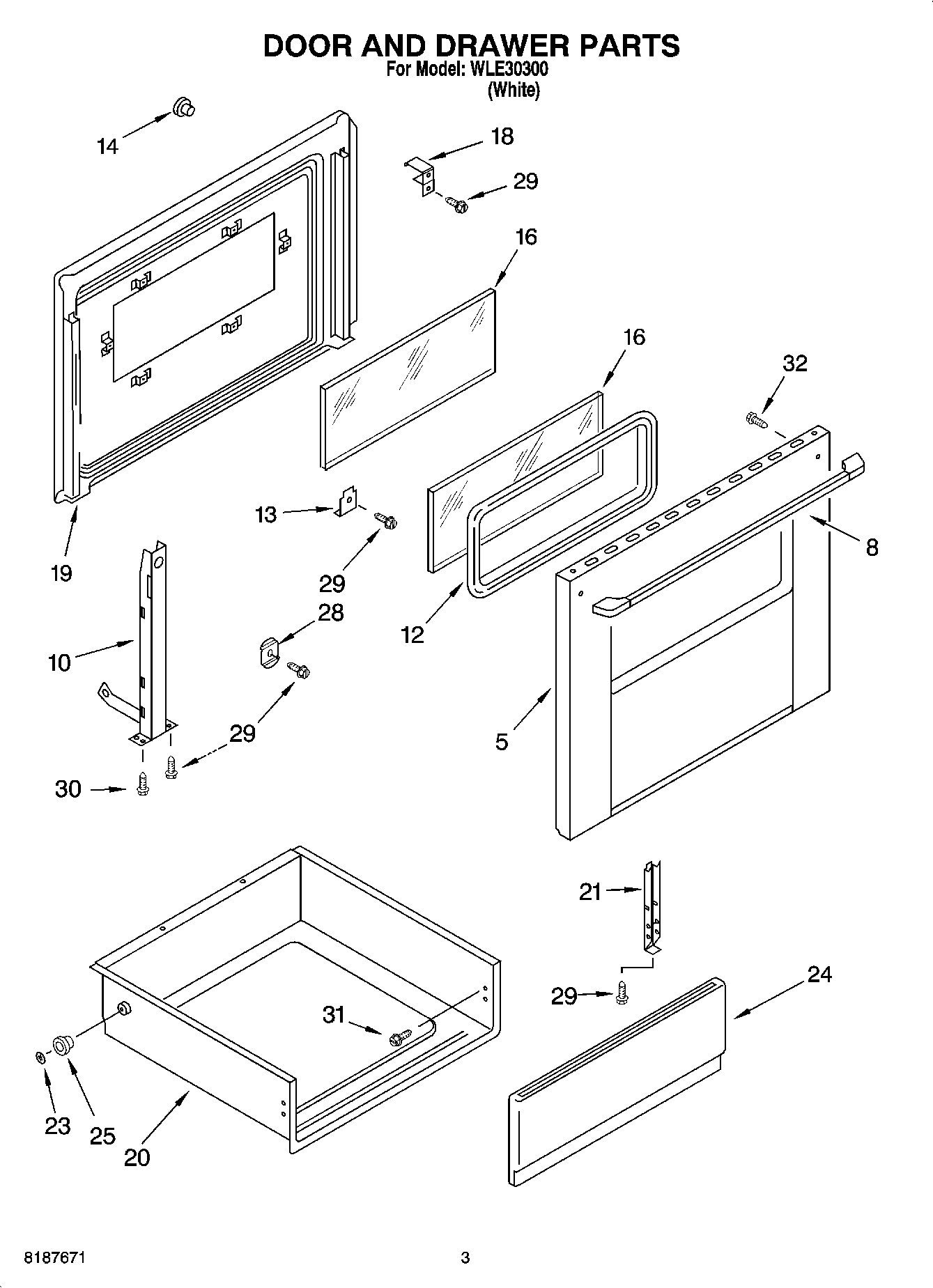

WLE30300 03 – DOOR AND DRAWER PARTS

Products

PositionProduct
5Panel, Door
8Handle, Door (White)
10Hinge, Door R or L
12Gasket, glass
13Retainer, Glass (4)
14238614 Whirlpool Bumper Hinge
16Inner Glass, Clear
18Retainer, Glass
19Liner, Door
20Drawer & Roller
21Bracket, Drawer
23WP90296 Whirlpool Clip
24Front, Drawer (White)
25814229 Whirlpool Primary Roller
28Spacer, Door (8)
29WP4159387 Whirlpool Compactor Screw
30Back Splash (Screw (4) 10AB x 1/2“)
31Screw (4) 10 x 1/2
32WPW10001180 Whirlpool Refrigerator Screw
