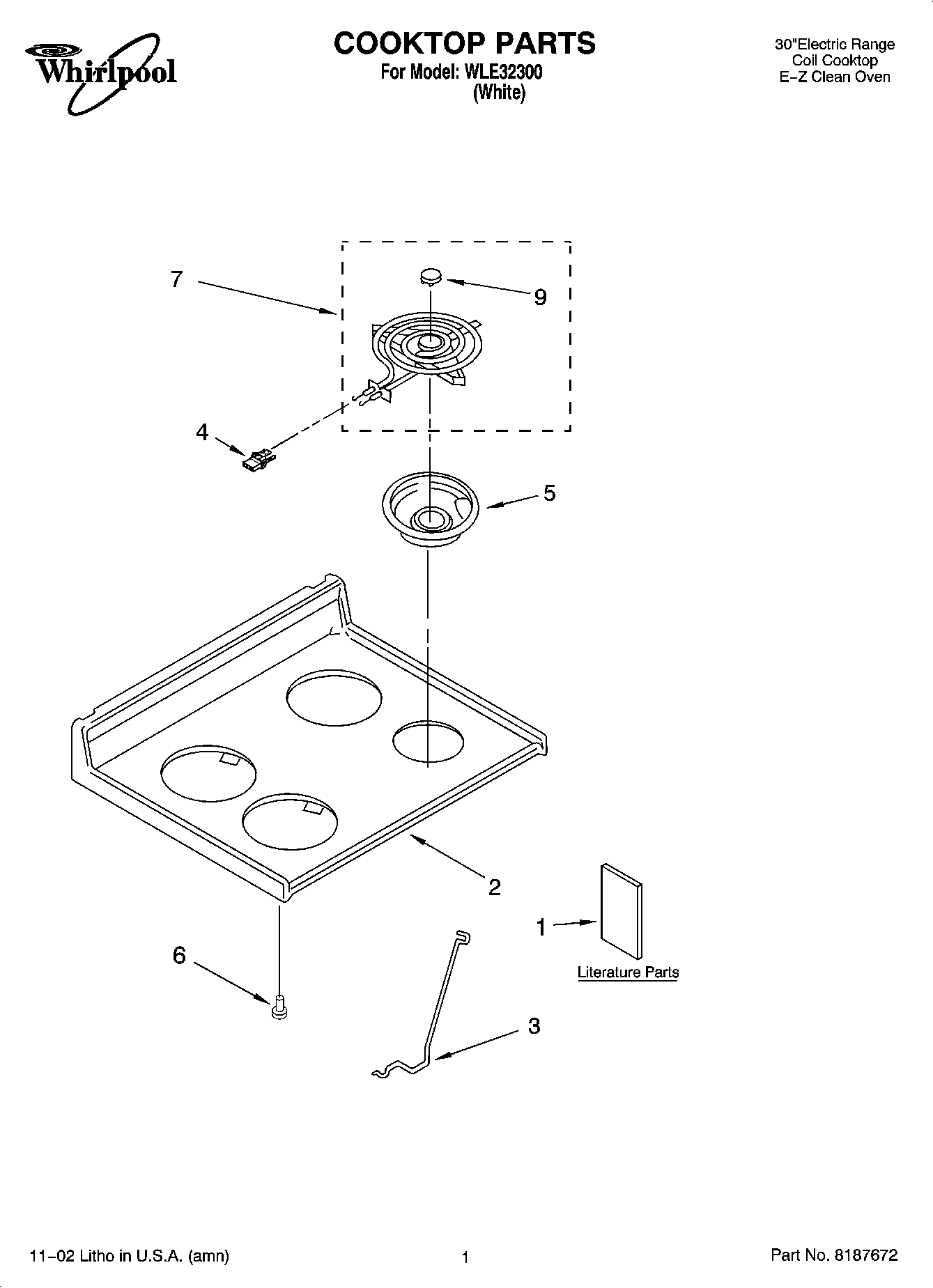

WLE32300 01 – COOKTOP PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Service Instructions)
1	Literature Parts (Installation Instructions)
1	WPL LIT9752767
1	WPL LIT9752776
2	Cooktop, Coil
3	Cooktop Rod
4	Receptacle, Clip
4	WP313808 Whirlpool Screw
5	WPW10290350 Whirlpool Stove Drip Bowl
5	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6	238614 Whirlpool Bumper Hinge
7	Element, Surface (Coil, 6“ LR (Accu Simmer))
7	Element, Surface (Coil, 8“ LF-RR)
7	Element, Surface (Coil, 6“ RF)
9	Medallion, (1) (Accu-Simmer)
9	Medallion, (4)
