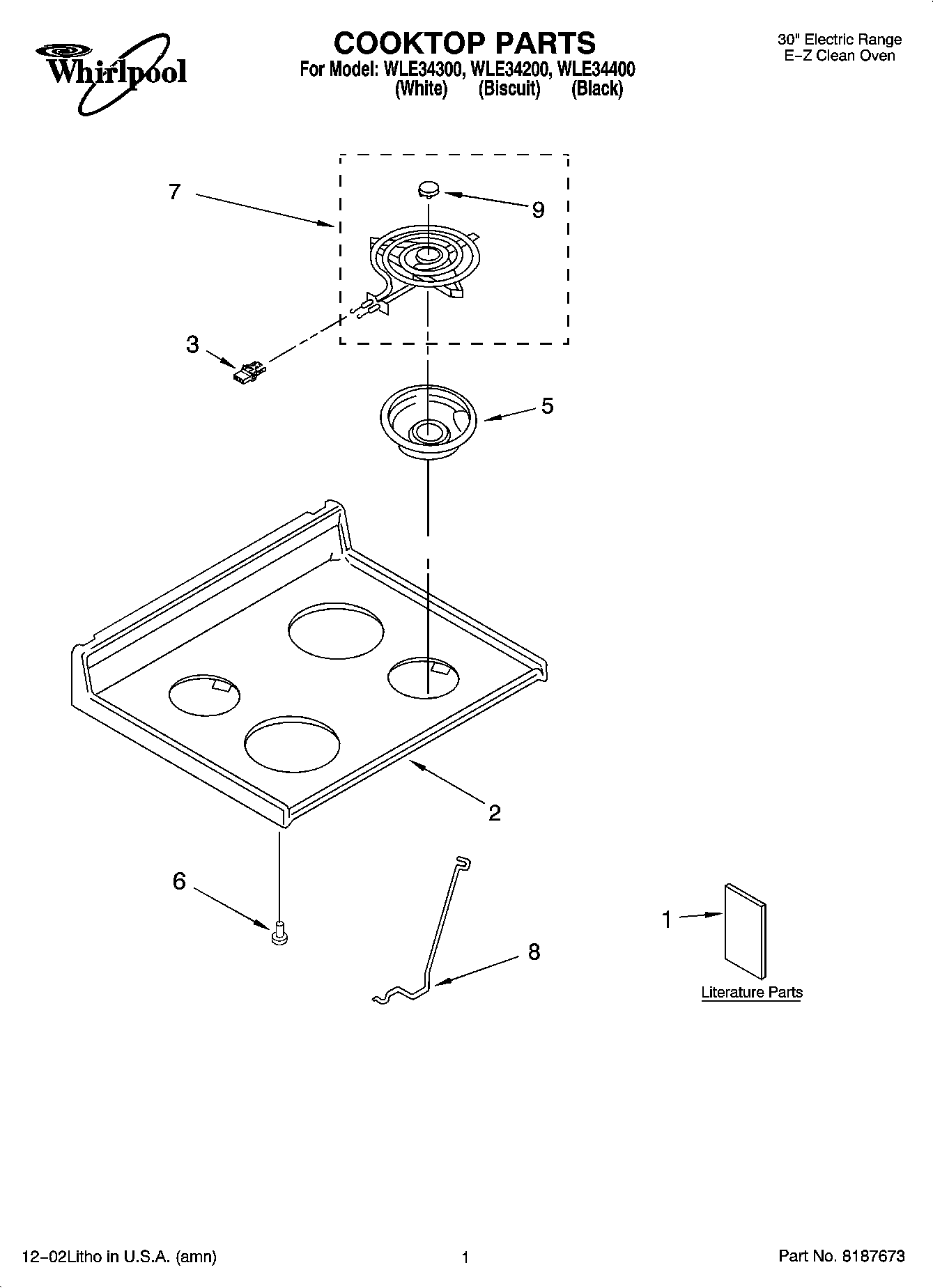

WLE34200 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1WPL LIT9752776
1Literature Parts (Use & Care Guide)
1Literature Parts (Service Instructions)
1Literature Parts (Installation Instructions)
2Cooktop, Coil (Biscuit)
2Cooktop, Coil (Black)
2Cooktop, Coil
3Receptacle, Clip
3WP313808 Whirlpool Screw
5WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
5WPW10290350 Whirlpool Stove Drip Bowl
6238614 Whirlpool Bumper Hinge
7Element, Surface (Coil, 6“ RF)
7Element, Surface (Coil, 6“ LR (Accu Simmer))
7Element, Surface (Coil, 8“ LF-RR)
8Cooktop Rod
9Medallion, (4)
9Medallion, (1) (Accu-Simmer)
