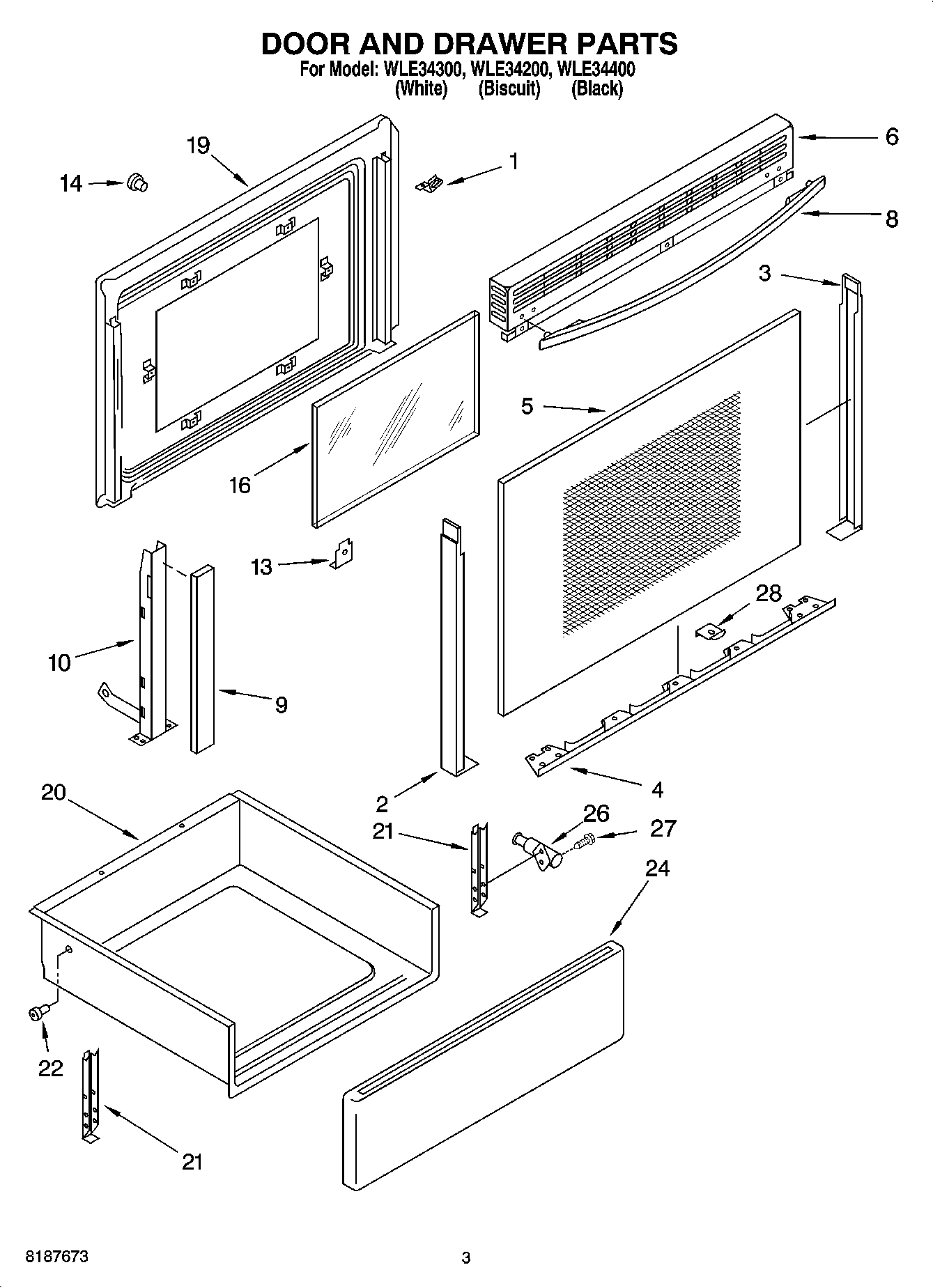

WLE34400 03 – DOOR AND DRAWER PARTS

Products

Position	Product
1	Retainer, Glass
2	Trim, Door-Left (White)
2	Trim, Door-Left (Biscuit)
2	Trim, Door-Left (Black)
3	Trim, Door-Right (White)
3	Trim, Door-Right (Biscuit)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Black)
4	Trim, Door Bottom (Biscuit)
4	Trim, Door Bottom (White)
5	Glass, Door Front (Black)
5	Glass, Door Front (Biscuit)
5	Glass, Door
6	Vent, Door (Gasket, Vent)
6	Vent, Door (White)
6	Vent, Door (Biscuit)
6	Vent, Door (Black)
8	Handle, Door (White)
8	WPW10001180 Whirlpool Refrigerator Screw
8	Handle, Door (Biscuit)
8	Handle, Door (Black)
9	Gasket, Door Glass
10	WP90296 Whirlpool Clip
10	Hinge, Door R or L
13	Retainer, Glass (4)
14	238614 Whirlpool Bumper Hinge
16	Inner Glass, Door
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
22	814229 Whirlpool Primary Roller
24	Screw (4) 10 x 1/2
24	Front, Drawer (White)
24	Front, Drawer (Black)
24	Front, Drawer (Biscuit)
26	Latch, Drawer
27	WPL 9780806
28	Spacer, Door (8)
28	WP4159387 Whirlpool Compactor Screw
