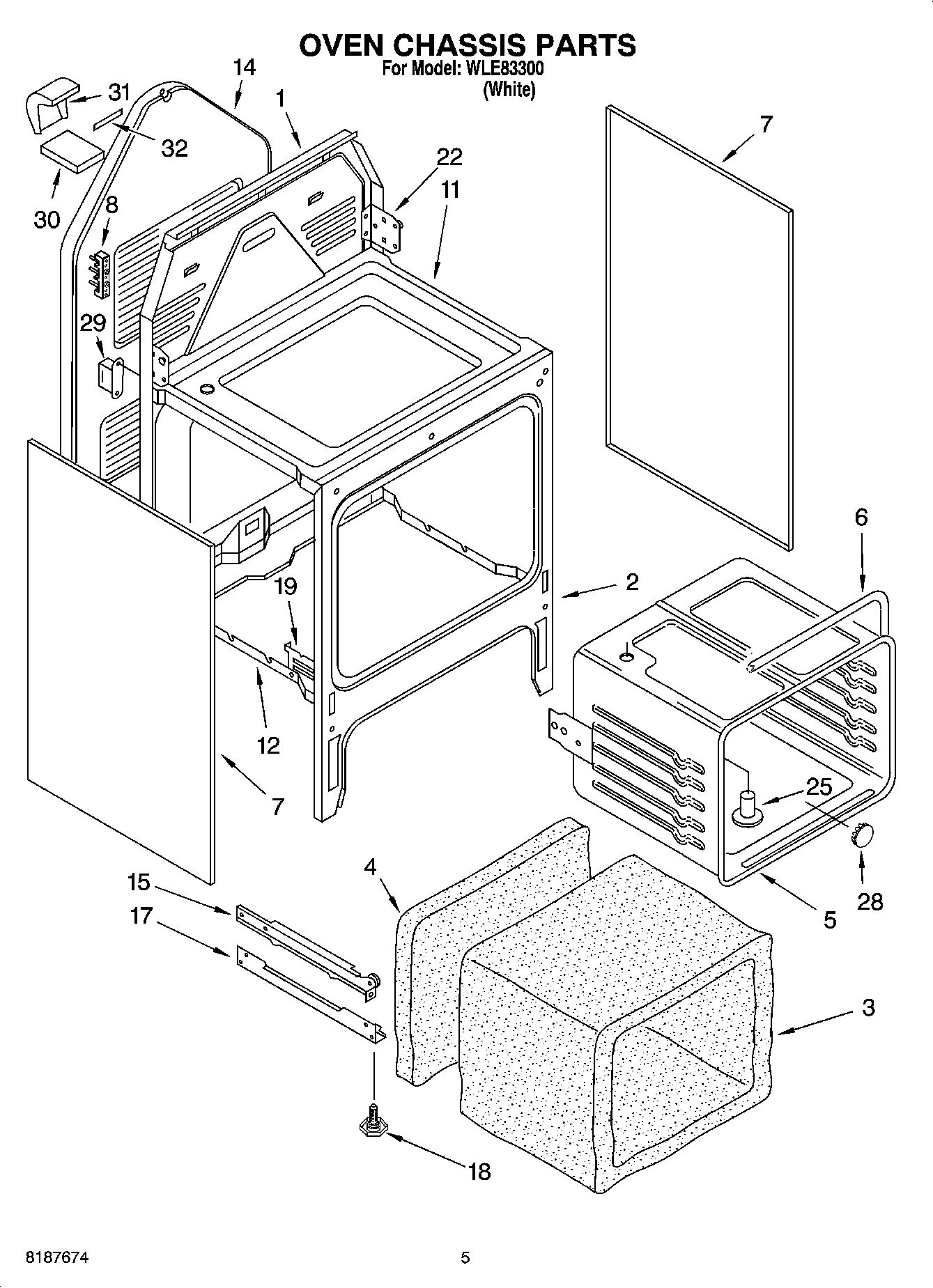

WLE83300 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	WP112432 Whirlpool Nut Assembly
8	Screw, (2) 10-16 x 1
8	WP8203546 Whirlpool Terminal Block
11	Screw, (2)
11	Burner Box
12	Oven Bottom
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
25	Vent Tube
28	Button, Plug
29	Ballast, Lamp
29	WP4159387 Whirlpool Compactor Screw
30	Cover, Vent
31	Back, Vent
32	Vent Gasket
