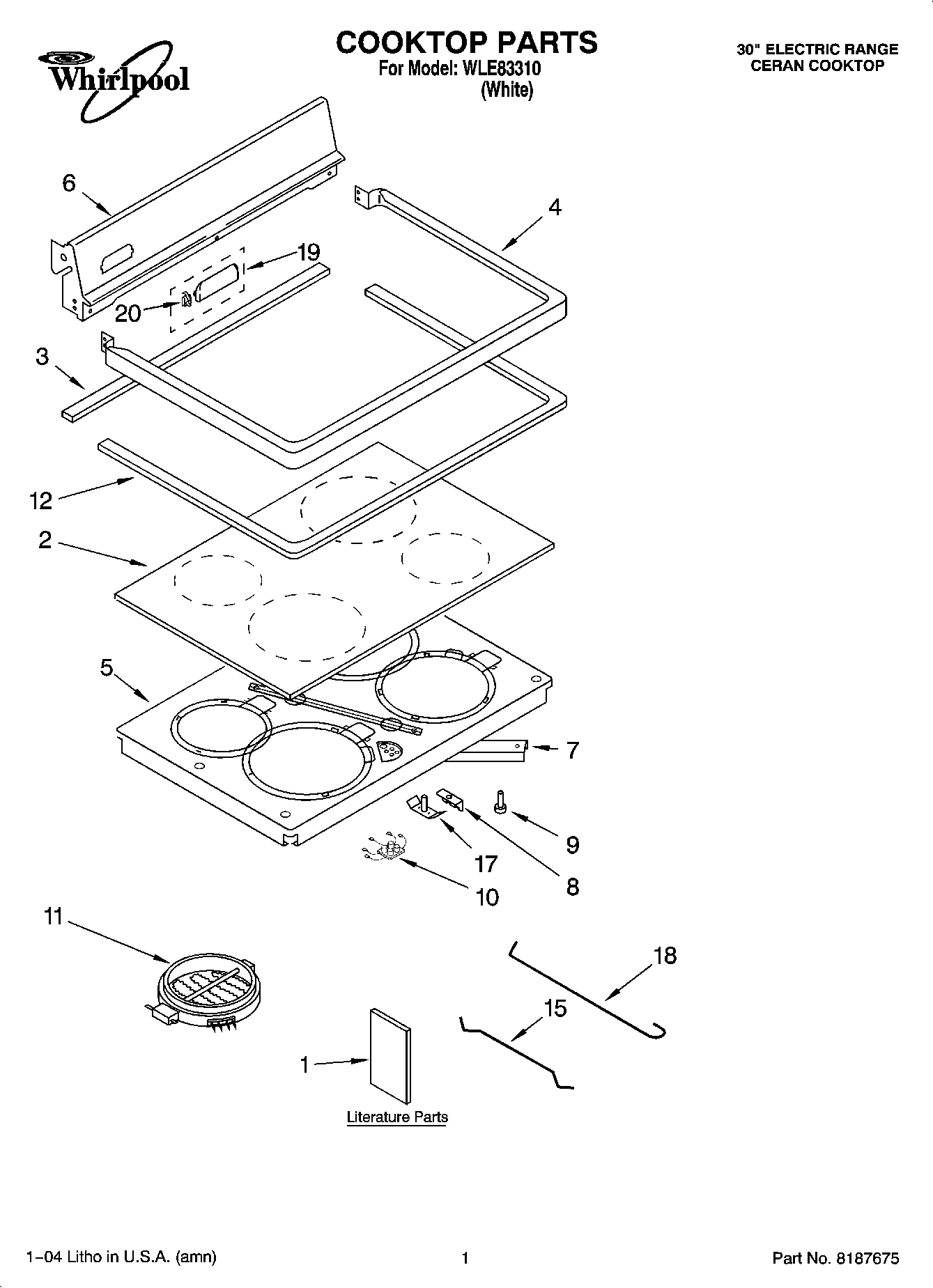

WLE83310 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Service Instructions)
1Literature Parts (Use & Care Guide)
1WPL LIT9752776
1WPL LIT9752768
2Cooktop, Ceran Front & Sides
3Rear Gasket
4Frame, Cooktop (White)
5Support, Element
6Back Splash (White)
6Back Splash (Screw (4) 10AB x 1/2“)
7Brace, Support
7Screw (4) 10 x 1/2
8Support Clips (4)
8Screw, (4) 10PH-B x 3/4
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823697 Whirlpool Surface Element
11W10823699 Whirlpool Right Front Surface Element
11W10823692 Whirlpool Dual Radiant Element
11W10823698 Whirlpool Surface Element Right Rear
12WP9780939 Whirlpool Cooktop Gasket
15Rod, Small Ceran Element
17WP9781235 Whirlpool Clip
18Rod, Large Ceran Element
19Cover, Vent (White)
20Clip, Vent Cover
20Seal, Pilot
