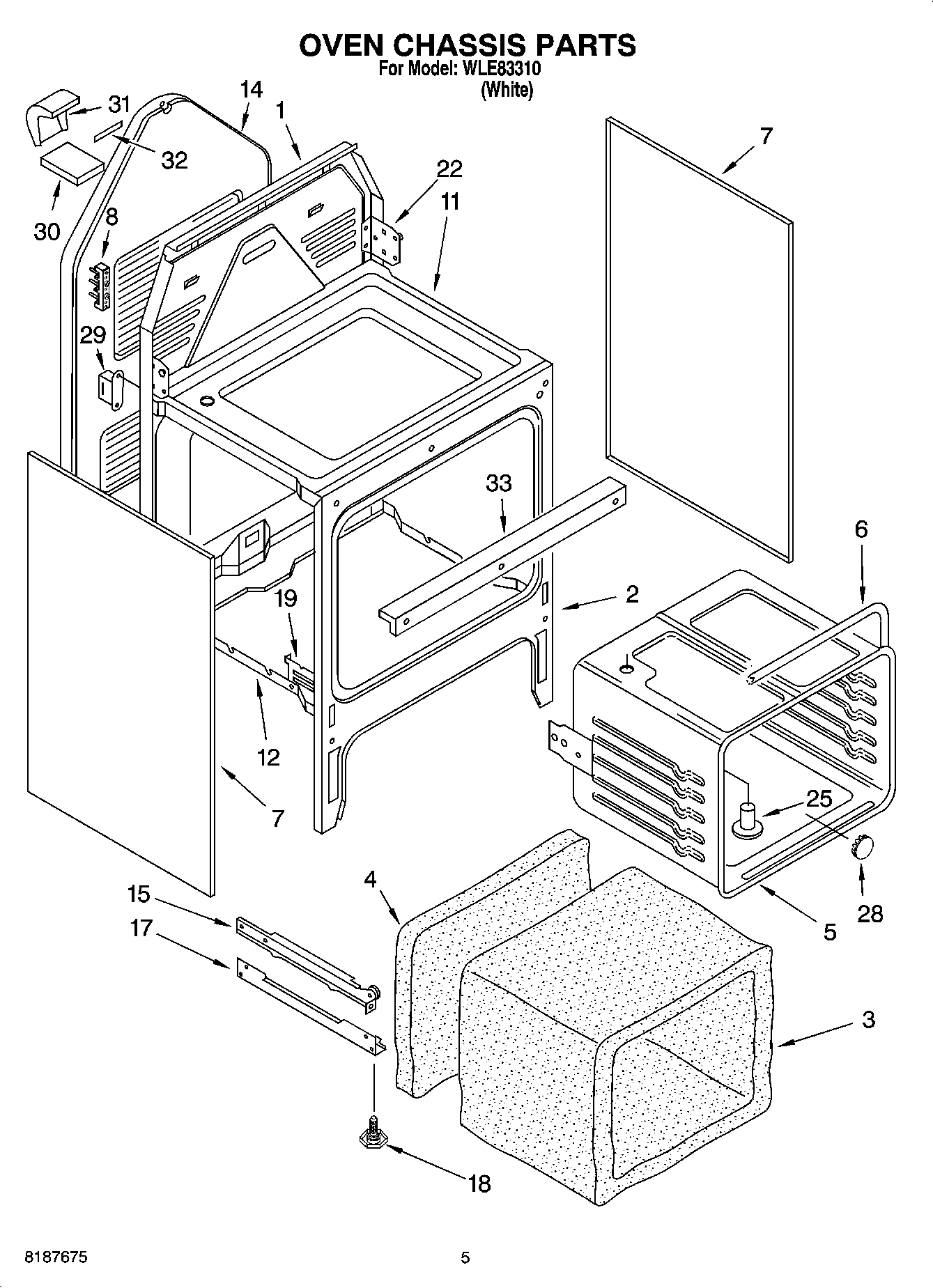

WLE83310 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Screw, (2) 10-16 x 1
8	WP8203546 Whirlpool Terminal Block
8	WP112432 Whirlpool Nut Assembly
11	Screw, (2)
11	Burner Box
12	Oven Bottom
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
22	Hinge, Cktp.-Right
22	Hinge, Cktp.-Left
25	Vent Tube
28	Button, Plug
29	WP4159387 Whirlpool Compactor Screw
29	Ballast
30	Cover, Vent
31	Back, Vent
32	Vent Gasket
33	Guard, Wire
