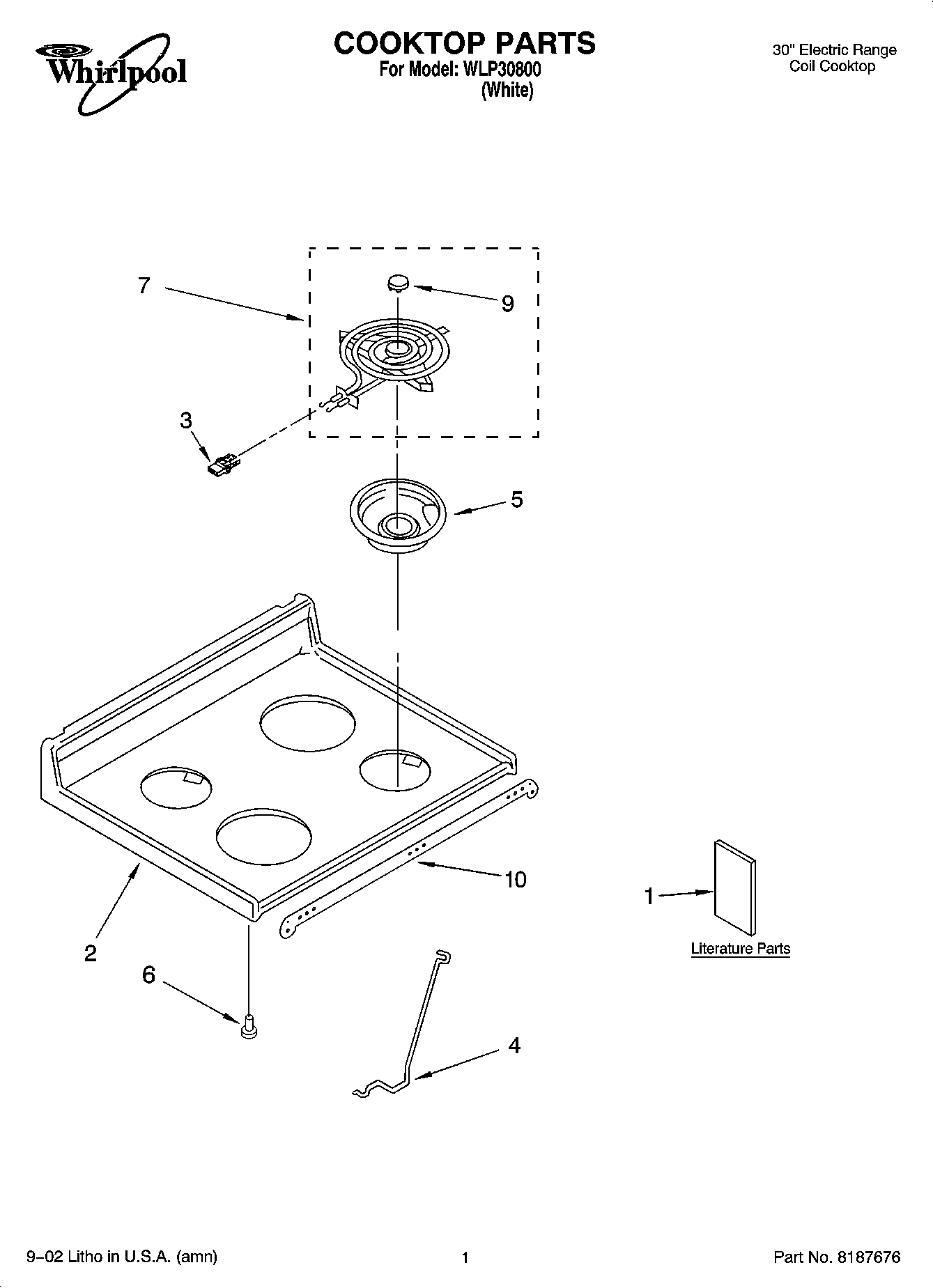

WLP30800 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1WPL LIT9752776
1Literature Parts (Service Instructions)
1Literature Parts (Installation Instructions)
2Cooktop, Coil
3Receptacle, Clip
3WP313808 Whirlpool Screw
4Cooktop Rod
5WPW10290350 Whirlpool Stove Drip Bowl
5WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6238614 Whirlpool Bumper Hinge
7Element, Surface (Coil, 8“ LF-RR)
7Element, Surface (Coil, 6“ RF)
9Medallion, (4)
10Guard, Wire
10Screw (2) 8 x 3/8
