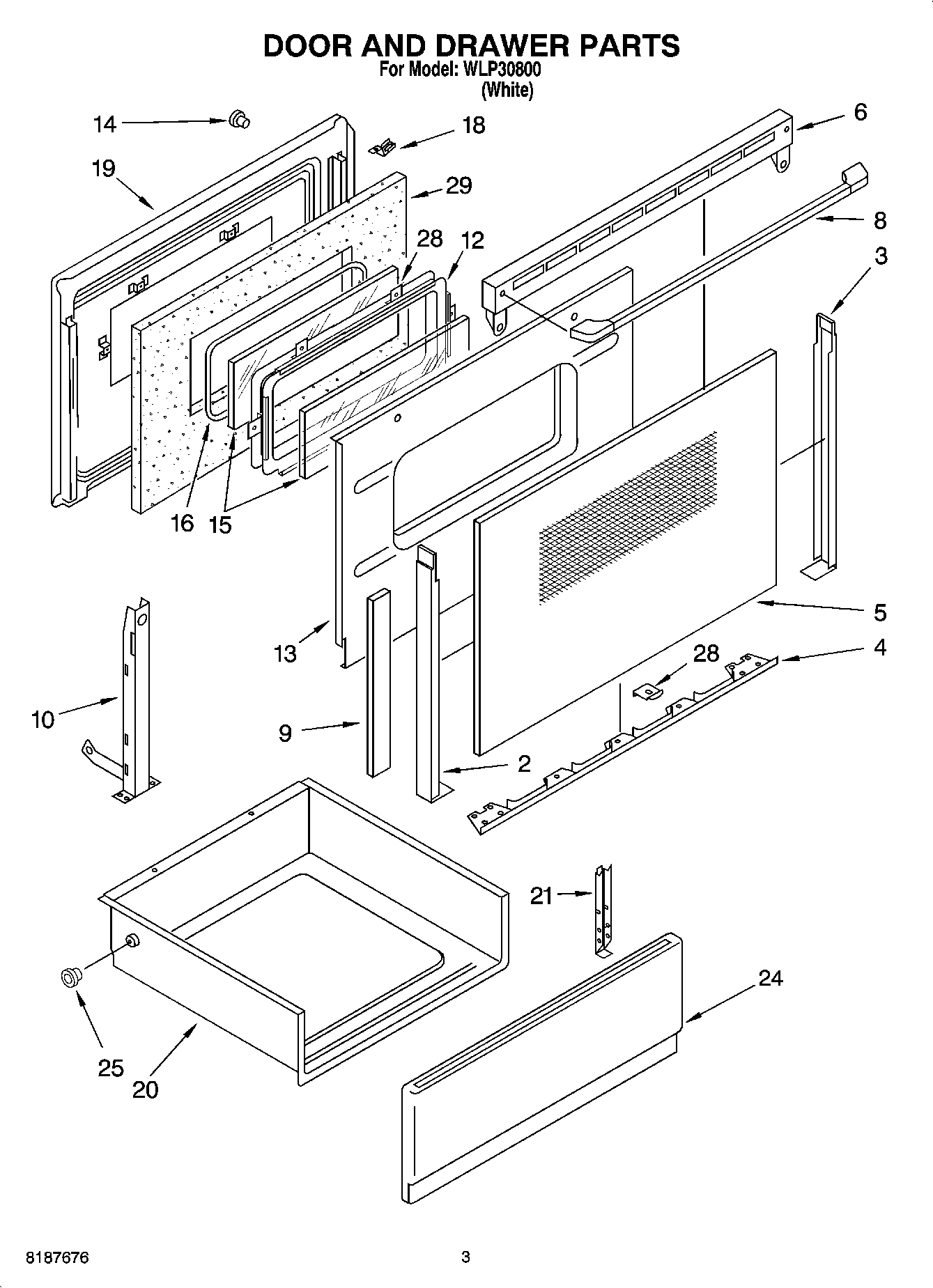

WLP30800 03 – DOOR AND DRAWER PARTSadmin2025-04-26T12:43:42+00:00WLP30800 03 – DOOR AND DRAWER PARTS
Products
| Position | Product |
|---|
| 2 | Trim, Door-Left (White) |
| 3 | Trim, Door-Right (White) |
| 4 | Trim, Door Bottom (White) |
| 5 | Glass, Door Front |
| 6 | Vent, Door (White) |
| 6 | Vent, Door (Gasket, Vent) |
| 8 | Handle, Door (White) |
| 8 | WPW10001180 Whirlpool Refrigerator Screw |
| 9 | Gasket, Door Glass |
| 10 | WP9782033 Whirlpool Door Hinge |
| 12 | Frame, Window |
| 13 | Shield Door |
| 14 | 238614 Whirlpool Bumper Hinge |
| 15 | WP9781654 Whirlpool Door Glass |
| 16 | Seal, Window |
| 18 | Retainer, Glass |
| 19 | Liner, Door |
| 20 | Drawer & Roller |
| 21 | Bracket, Drawer |
| 21 | WP90296 Whirlpool Clip |
| 21 | Screw (4) 10 x 1/2 |
| 24 | Front, Drawer (White) |
| 25 | 814229 Whirlpool Primary Roller |
| 28 | Spacer, Door (8) |
| 28 | WP4159387 Whirlpool Compactor Screw |
| 29 | Insulation, Door |
