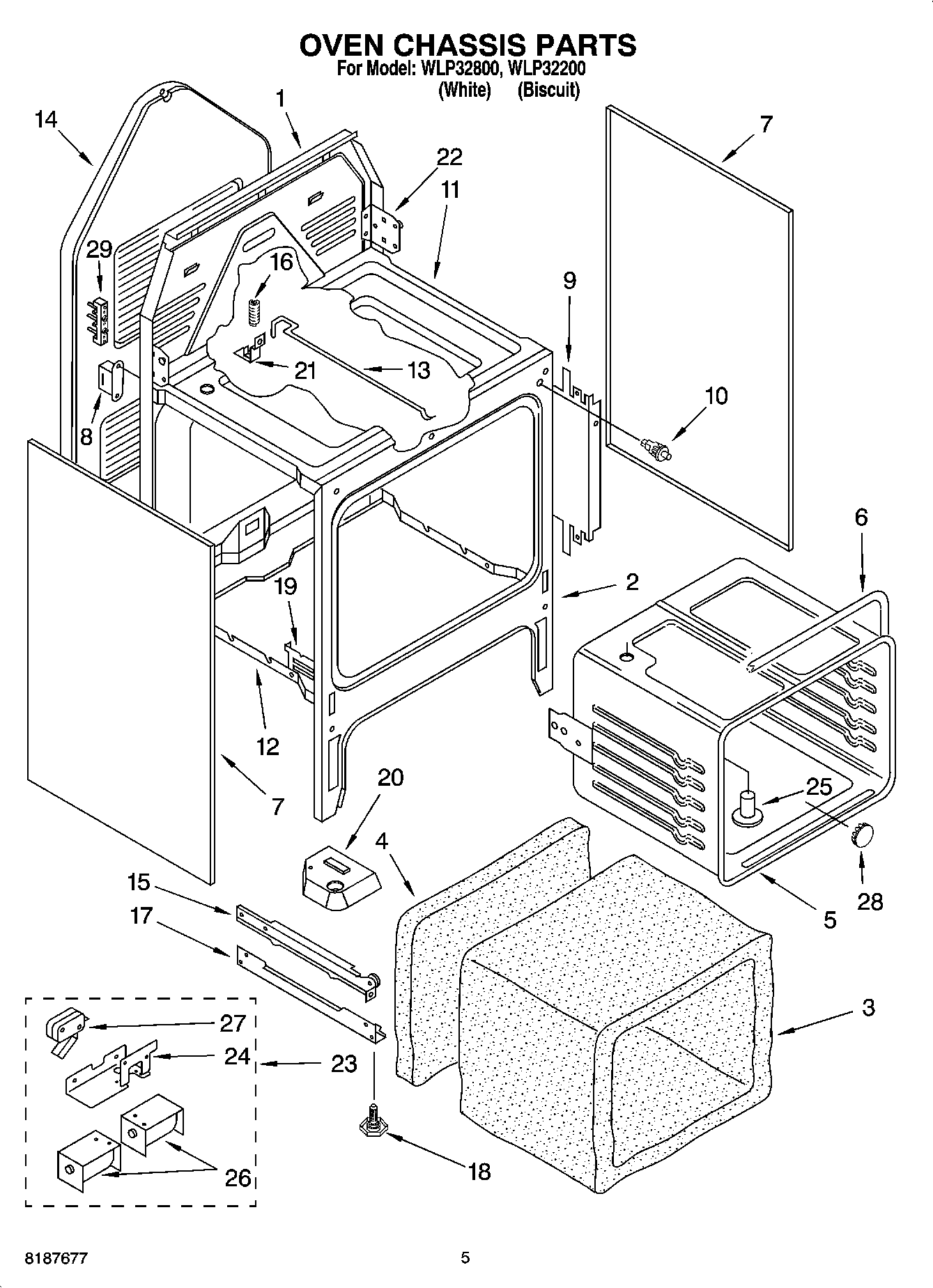

WLP32200 04 – OVEN CHASSIS PARTS

Products

PositionProduct
1Main Chassis, Back
2Chassis, Front
3Insulation, Wrap
4Insulation, Rear
5Oven Liner
6Gasket, Oven
7Body, Side (White)
7Body, Side (Biscuit)
8Ballast
9Shield, Insulation
10Door Switch (Oven Light)
11Screw, (2)
11Burner Box
11Washer (3)
12Oven Bottom
13Rod, Lock
14Panel, Rear
15Rail, Drawer (Right)
15Drawer Rail, Left
16Spring, Door Lock
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Base L or R
19Screw (4) 10 x 1/2
20Block, Balance
21Bracket, Spring
22Hinge, Cktp.-Left
22Hinge, Cktp.-Right
23Oven Lock Assembly
24Bracket, Lock
24WP4159387 Whirlpool Compactor Screw
25Vent Tube
26Washer (2)
26Screw (2) 10-32 x 5/16
26Solenoid
27Switch, Interlock
27Screw, (2)
27Nut (2)
28Button, Plug
29Screw, (2) 10-16 x 1
29WP112432 Whirlpool Nut Assembly
29WP8203546 Whirlpool Terminal Block
