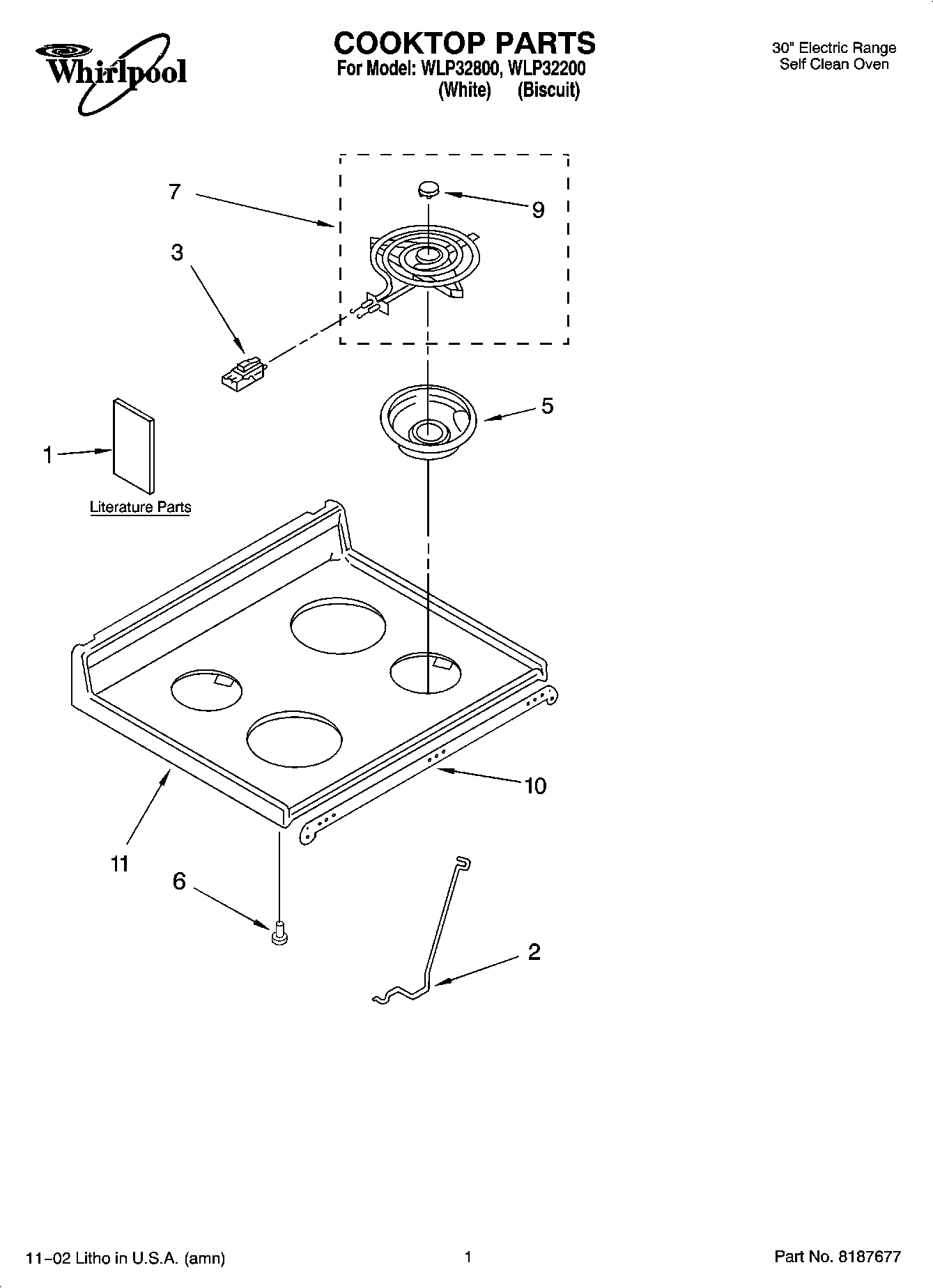

WLP32800 01 – COOKTOP PARTS
Written by
in
WLP32800 01 – COOKTOP PARTS
Products
Position
Product
1
Literature Parts (Wiring Diagram)
1
Literature Parts (Use & Care Guide)
1
WPL LIT9752776
1
Literature Parts (Service Instructions)
2
Cooktop Rod
3
WP313808 Whirlpool Screw
3
Receptacle, Clip
5
WPW10290350 Whirlpool Stove Drip Bowl
5
WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6
238614 Whirlpool Bumper Hinge
7
Element, Surface (Coil, 6“ LR (Accu Simmer))
7
Element, Surface (Coil, 8“ LF-RR)
7
Element, Surface (Coil, 6“ RF)
9
Medallion, (4)
9
Medallion, (1) (Accu-Simmer)
10
Guard, Wire
10
Screw (2) 8 x 3/8
11
Cooktop, Coil
11
Cooktop, Coil (Biscuit)
←
