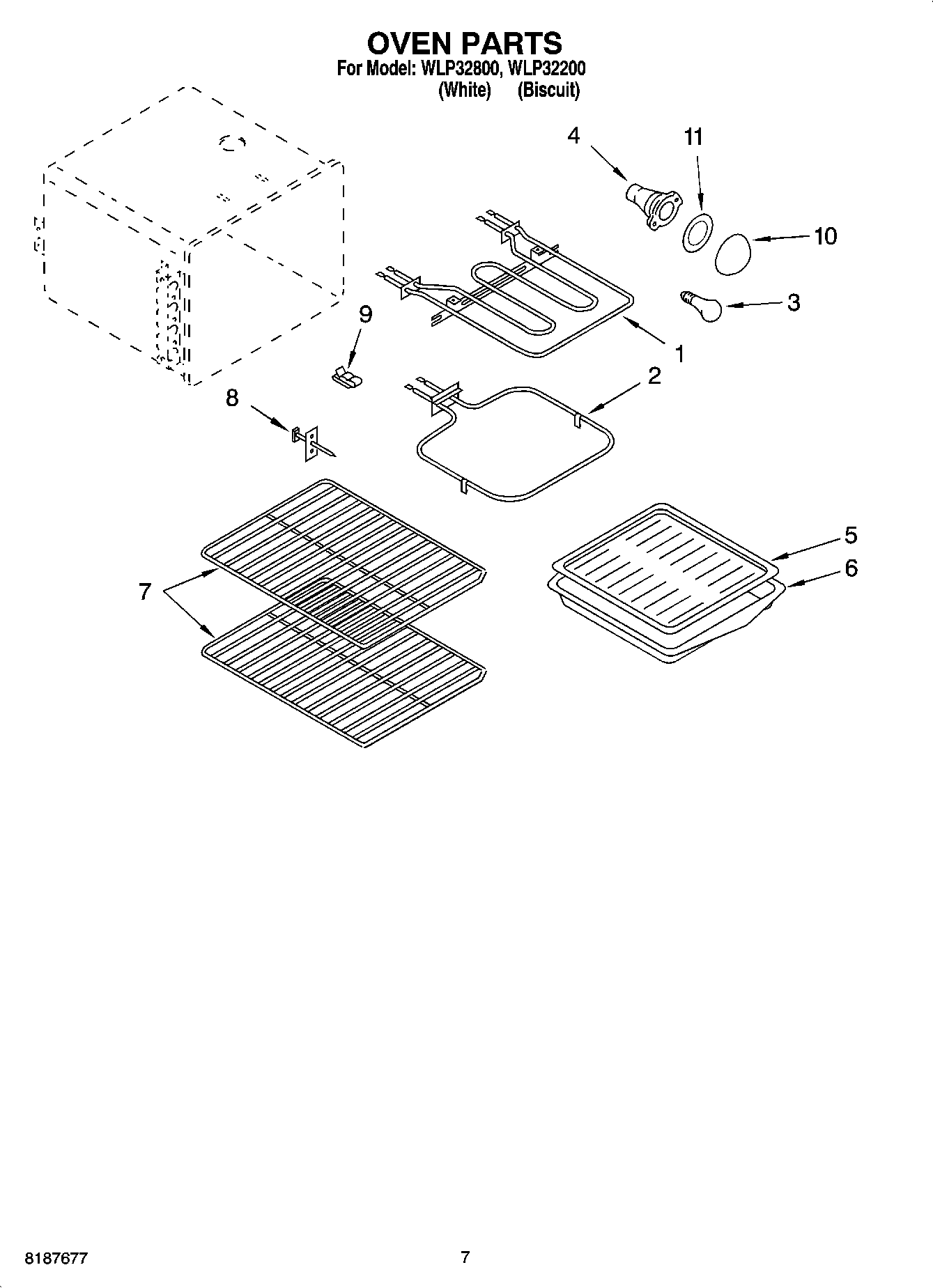

WLP32800 05 – OVEN PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI135939A
	8212471 Whirlpool Oven Paint
	WPL 9752771
	WPL 9750744
	Washer (2)
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	Grease
	WPL 9751003
	WPL ARI135938A
	WPL ARI135937A
	WPL ARI135936A
	WPL ARI135935A
	WPL 9753254
	WPL 9753253
	WPL 9755473
	WPL 9755472
	WPL 9752848
	PT400 Whirlpool Range Power Cord
	WPL 9781445
	WPL 9751014
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	WP90296 Whirlpool Clip
	WPL 799832
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10339879 Whirlpool Wire Tie
	SCREW
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	1
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	285006 Whirlpool Spray
	WPW10208653 Whirlpool Insulation
1	Element, Broil
2	Screw
2	340184 Whirlpool Screw
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
6	4396923 Whirlpool Broil Pan Set Gray Porcelain
7	Rack, Standard
8	WP4159387 Whirlpool Compactor Screw
8	Limit Switch, Saftey
9	98005642 Whirlpool Clip
10	WP9781049 Whirlpool Light Lens
11	WP3184533 Whirlpool Range Light Lens Gasket
