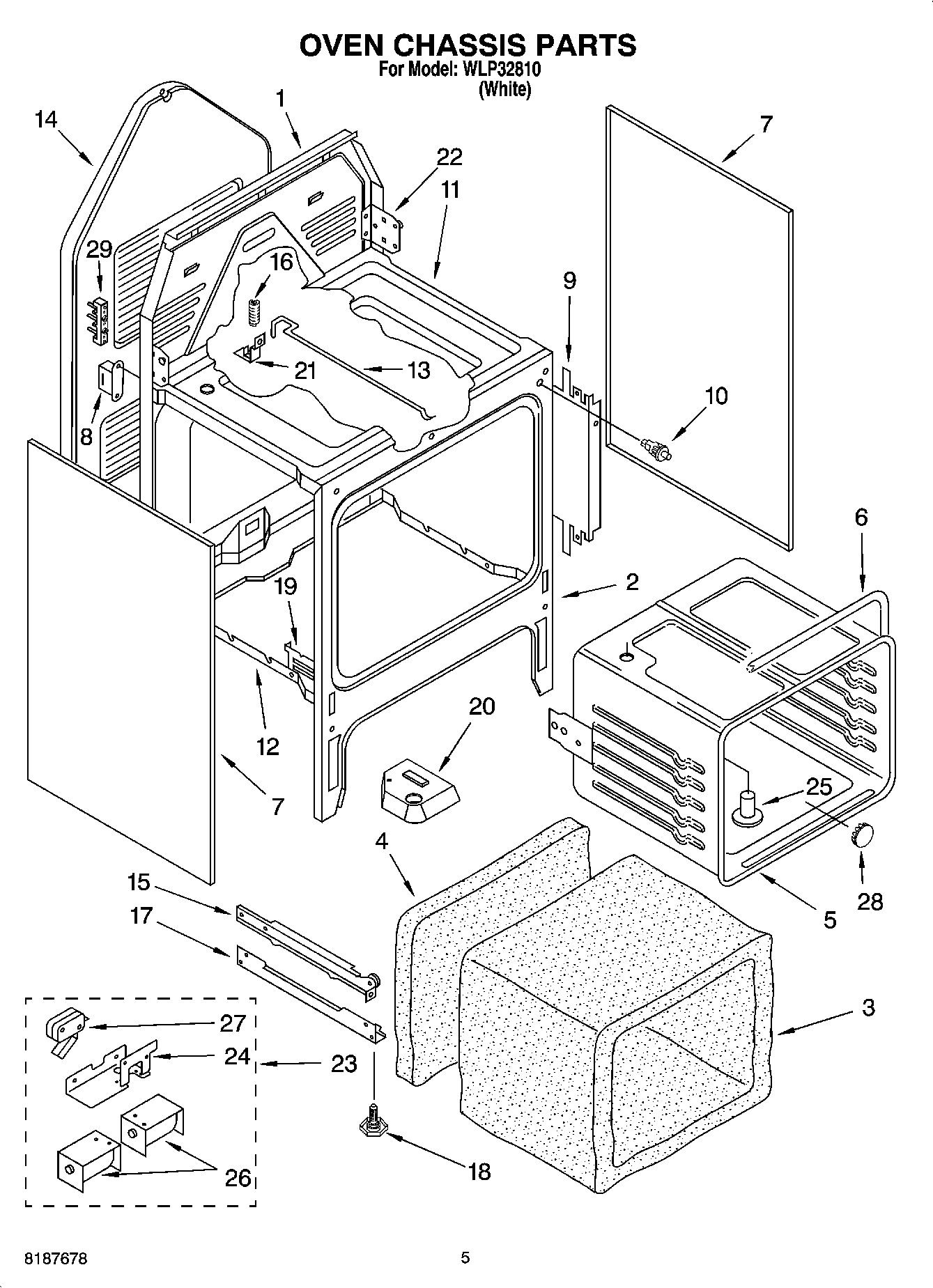

WLP32810 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Ballast
9	Shield, Insulation
10	Door Switch (Oven Light)
11	Washer (3)
11	Screw, (2)
11	Burner Box
12	Oven Bottom
13	Rod, Lock
14	Panel, Rear
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Spring, Door Lock
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (4) 10 x 1/2
19	Hinge, Base L or R
20	Block, Balance
21	Bracket, Spring
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Oven Lock Assembly
24	Bracket, Lock
24	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
26	Washer (2)
26	Solenoid
26	Screw (2) 10-32 x 5/16
27	Screw, (2)
27	Switch, Interlock
27	Nut (2)
28	Button, Plug
29	Screw, (2) 10-16 x 1
29	WP112432 Whirlpool Nut Assembly
29	WP8203546 Whirlpool Terminal Block
