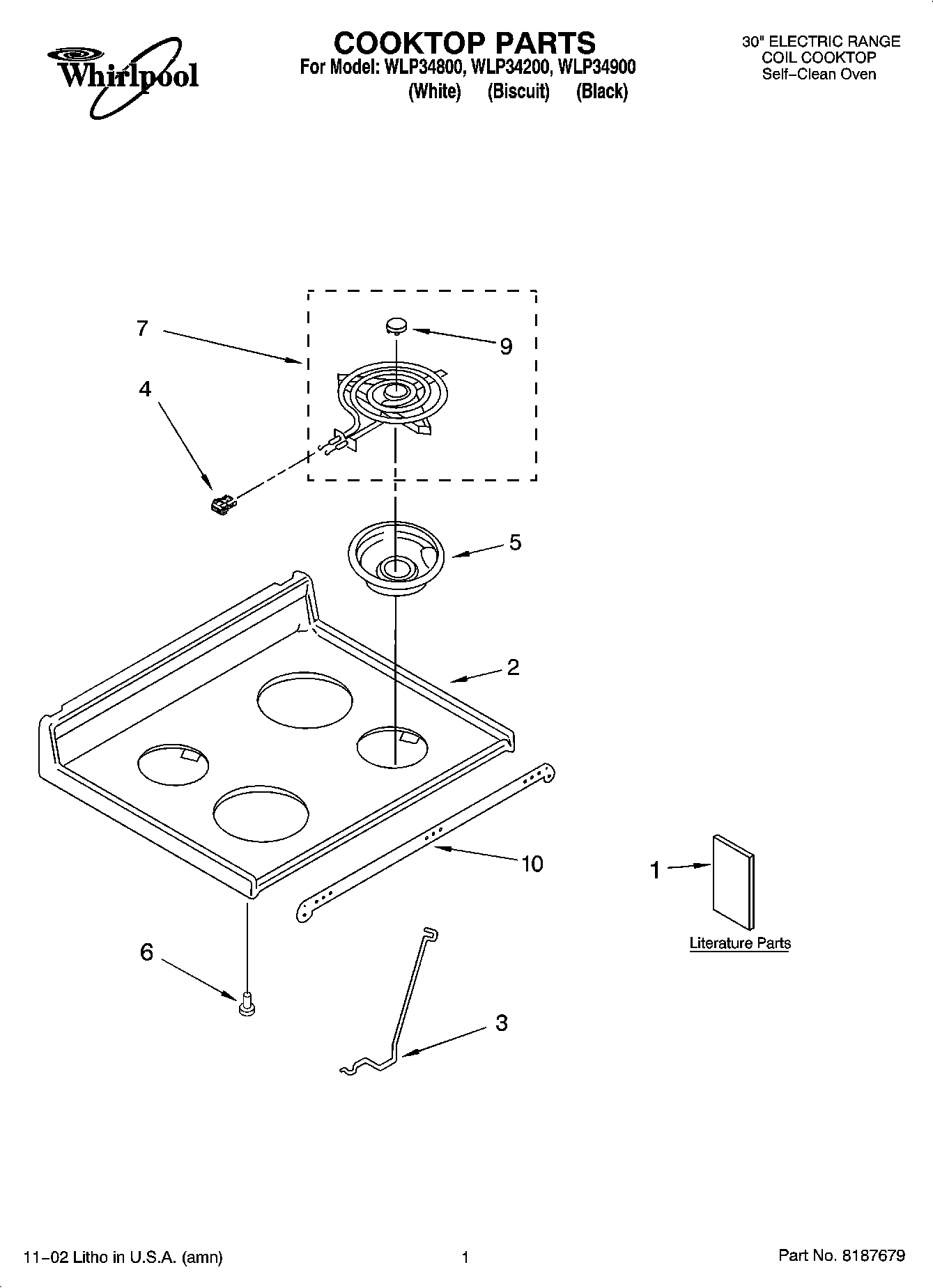

WLP34200 01 – COOKTOP PARTS

WLP34200 01 – COOKTOP PARTS

Written by

in

WLP34200 01 – COOKTOP PARTS

Products

PositionProduct
1WPL LIT9752776
1Literature Parts (Service Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
2Cooktop, Coil
2Cooktop, Coil (Biscuit)
2Cooktop, Coil (Black)
3Cooktop Rod
4Receptacle, Clip
4WP313808 Whirlpool Screw
5WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
5WPW10290350 Whirlpool Stove Drip Bowl
6238614 Whirlpool Bumper Hinge
7Element, Surface (Coil, 6“ LR (Accu Simmer))
7Element, Surface (Coil, 8“ LF-RR)
7Element, Surface (Coil, 6“ RF)
9Medallion, (1) (Accu-Simmer)
9Medallion, (4)
10Guard, Wire
10Screw (2) 8 x 3/8
