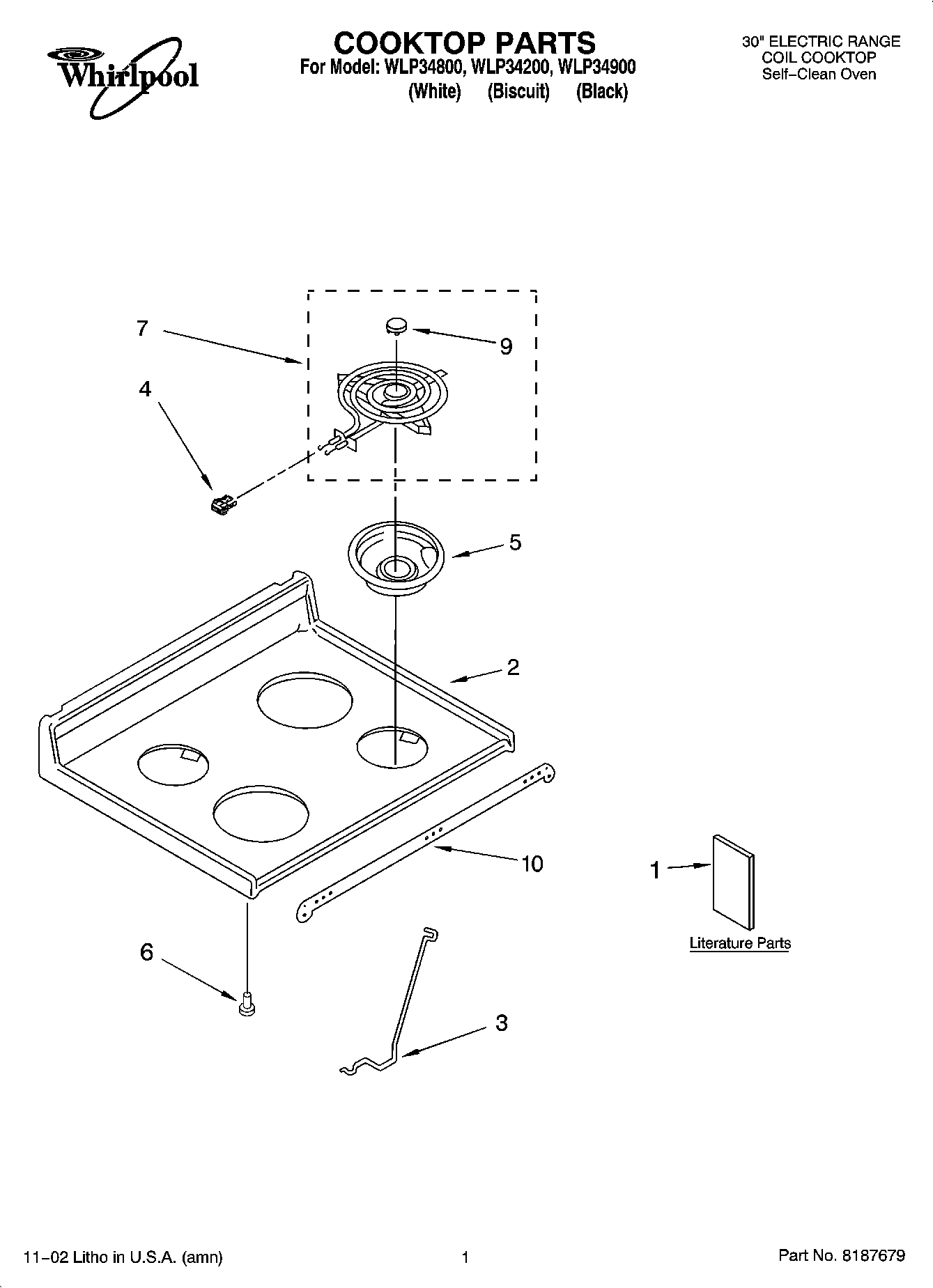

WLP34900 01 – COOKTOP PARTSadmin2025-04-26T12:40:30+00:00WLP34900 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | WPL LIT9752776 |
| 1 | Literature Parts (Service Instructions) |
| 1 | Literature Parts (Wiring Diagram) |
| 1 | Literature Parts (Use & Care Guide) |
| 2 | Cooktop, Coil |
| 2 | Cooktop, Coil (Biscuit) |
| 2 | Cooktop, Coil (Black) |
| 3 | Cooktop Rod |
| 4 | Receptacle, Clip |
| 4 | WP313808 Whirlpool Screw |
| 5 | WPW10290353 Whirlpool Drip Bowl 6" ClimaTek |
| 5 | WPW10290350 Whirlpool Stove Drip Bowl |
| 6 | 238614 Whirlpool Bumper Hinge |
| 7 | Element, Surface (Coil, 6`` LR (Accu Simmer)) |
| 7 | Element, Surface (Coil, 8`` LF-RR) |
| 7 | Element, Surface (Coil, 6`` RF) |
| 9 | Medallion, (1) (Accu-Simmer) |
| 9 | Medallion, (4) |
| 10 | Guard, Wire |
| 10 | Screw (2) 8 x 3/8 |
