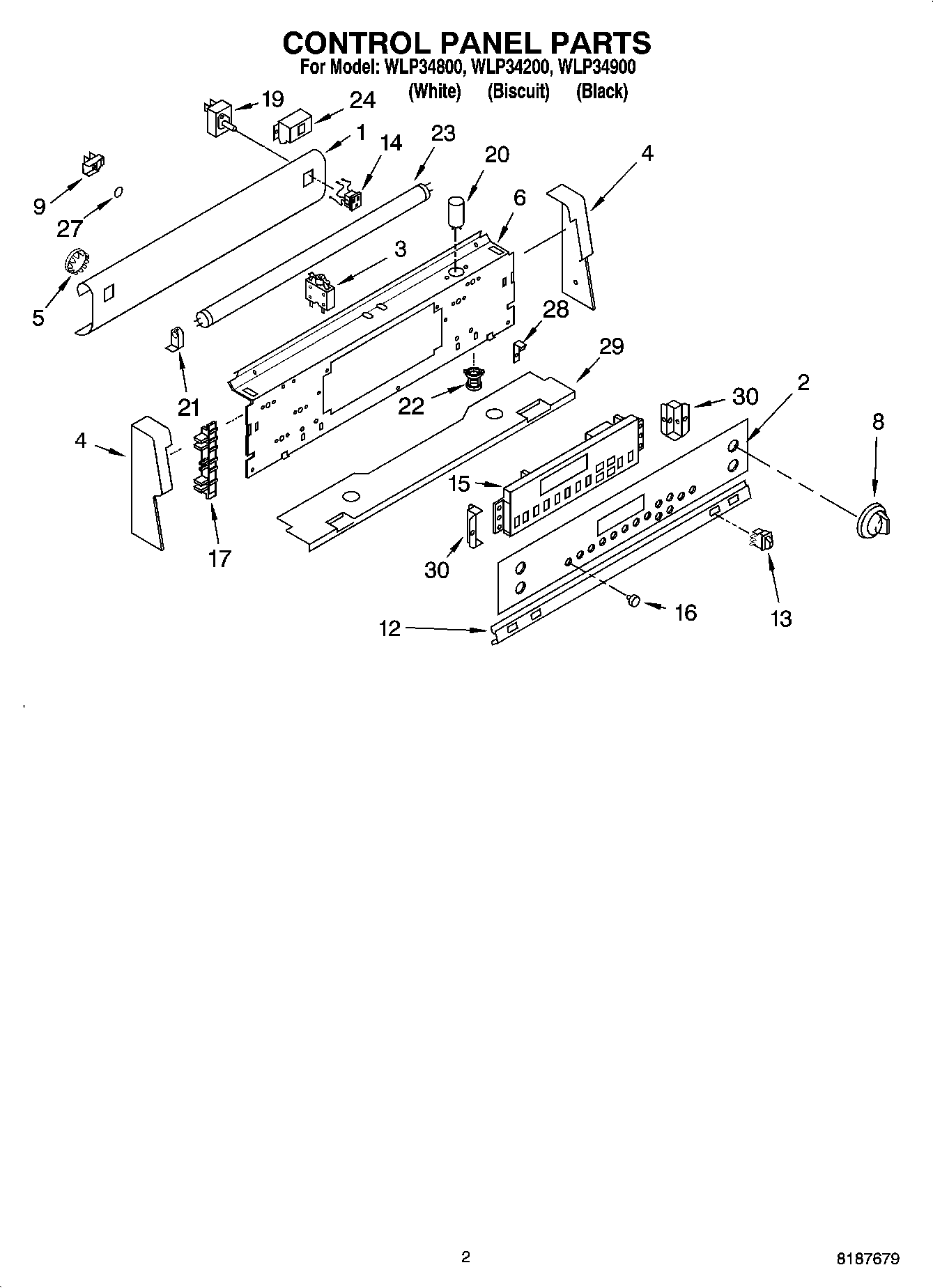

WLP34900 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover (Biscuit)
1	Lamp Cover (Black)
1	Lamp Cover (White)
2	Console-Glass (White)
2	Console-Glass (Biscuit)
2	Console-Glass (Black (Control Panel))
3	Breaker, 15 Amp
4	End Cap (Biscuit Right)
4	End Cap (Black, Right)
4	End Cap (Right)
4	End Cap (Left)
4	End Cap (Biscuit Left)
4	End Cap (Black, Left)
5	Button Plug (8 mm (2))
6	Panel, Control (Screw, (2) 8 x 3/8)
6	Panel, Control
8	WP9752405FW Whirlpool Knob
8	Knobs, Control (4) (Biscuit)
8	Knobs, Control (4) (Black)
9	Light, Indicator (Surface Unit (2))
12	Trim Strip (Black)
12	Trim Strip
12	Trim Strip (Biscuit)
13	Switch, Oven Light (Black)
13	Switch, Oven Light (Biscuit)
13	Switch, Oven Light (White)
14	Outlet, Untimed (2) (Black)
14	Outlet, Untimed (2) (Biscuit)
14	Outlet, Untimed (2) (White)
15	Timer
15	Spacer, Timer
16	Knob, Timer (17) (White)
16	Knob, Timer (17) (Biscuit)
16	Knob, Timer (17) (Black)
17	Insert (2) (Biscuit)
17	Insert (2) (White)
17	Insert (2) (Black)
19	WP3400882 Whirlpool Screw
19	WP9750643 Whirlpool Infinite Switch
19	WP9750646 Whirlpool Infinite Switch
20	Starter, Light
21	Lampholder (2)
22	Starter, Holder
23	WPL 9755491
24	WPL 9755353PB
24	WPL 9755353PC
24	WPL 9755353PW
27	WP9750343 Whirlpool Light Lens
28	WPL 9753017
29	WP3400832 Whirlpool Screw
29	Base, Console
30	WP4159387 Whirlpool Compactor Screw
30	WPL 9753304
