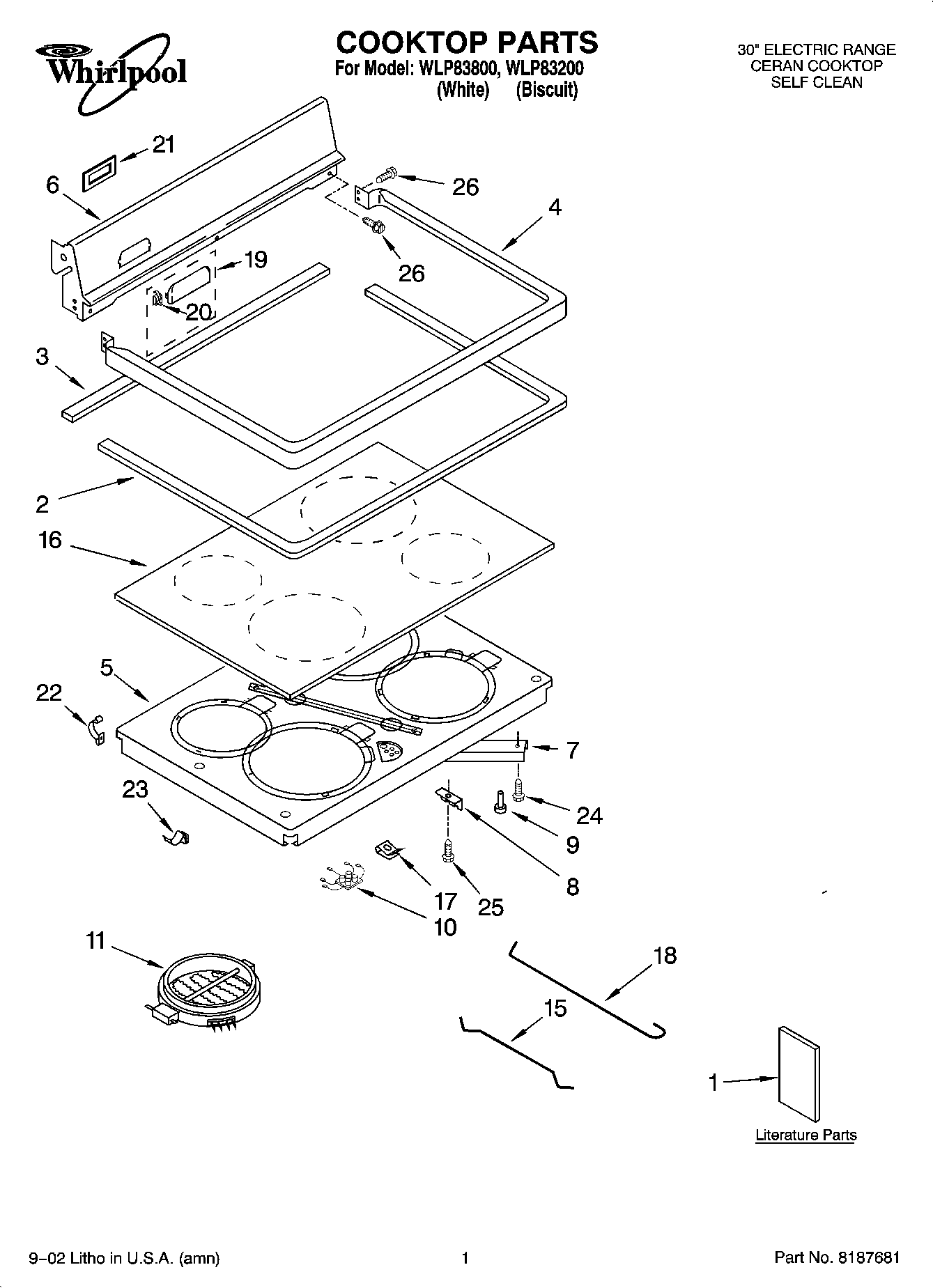

WLP83800 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1WPL LIT9752776
1Literature Parts (Wiring Diagram)
1Literature Parts (Service Instructions)
1Literature Parts (Installation Instructions)
2WP9780939 Whirlpool Cooktop Gasket
3Rear Gasket
4Frame, Cooktop (Biscuit)
4Frame, Cooktop (White)
5Support, Element
6Back Splash (White)
6Back Splash (Biscuit)
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823699 Whirlpool Right Front Surface Element
11W10823697 Whirlpool Surface Element
11W10823696 Whirlpool Radiant Surface Element
11W10823698 Whirlpool Surface Element Right Rear
15Rod, Small Ceran Element
16Cooktop, Ceran (Biscuit)
16Cooktop, Ceran (White)
17WP9781235 Whirlpool Clip
18Rod, Large Ceran Element
19Cover, Vent (White)
19Cover, Vent (Biscuit)
20Clip, Vent Cover
21Vent Gasket
228528351 Whirlpool Clip
23WP90016 Whirlpool Clip
24Screw (4) 10 x 1/2
25Screw, (4) 10PH-B x 3/4
26Back Splash (Screw (4) 10AB x 1/2“)
