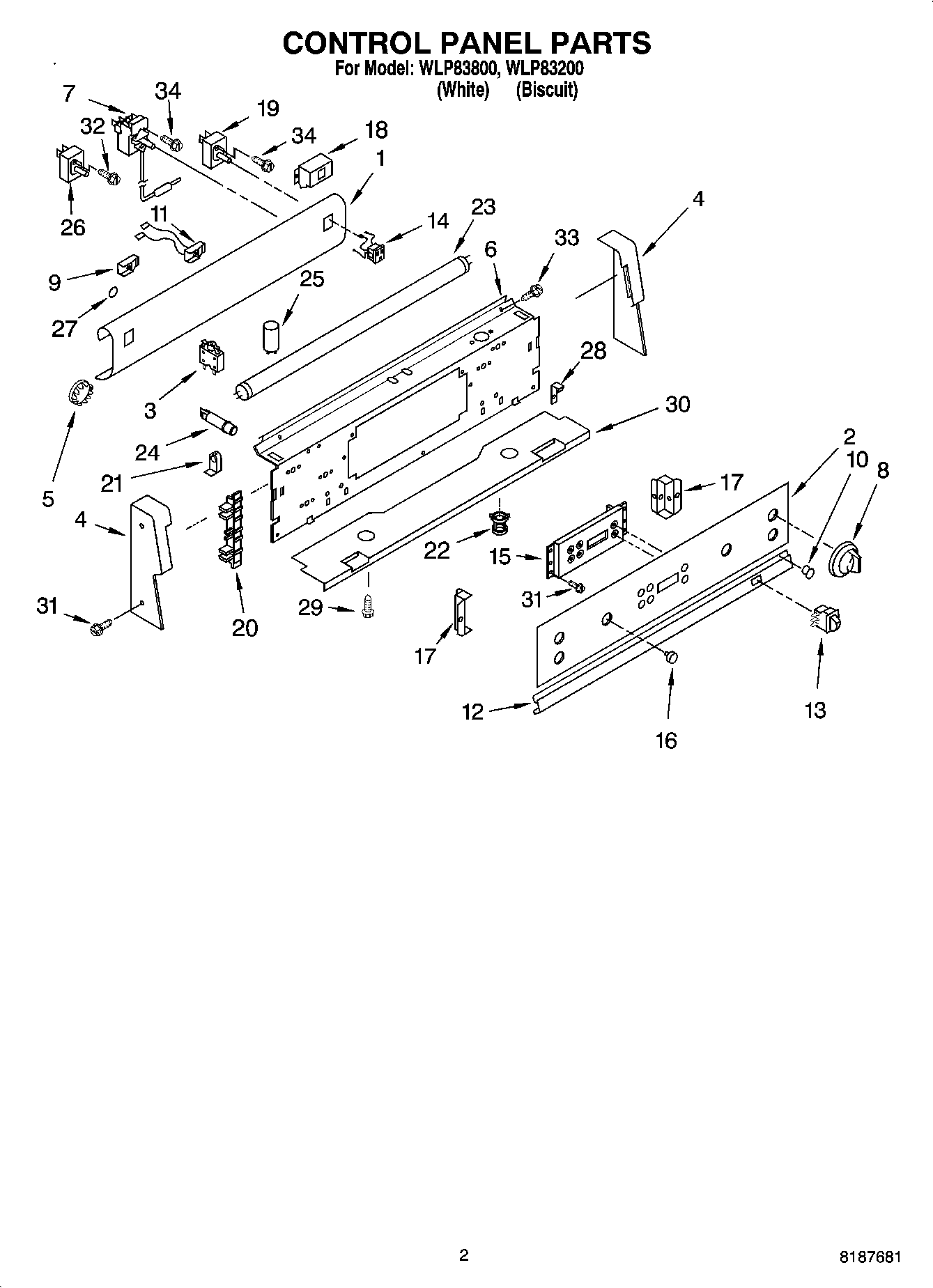

WLP83800 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover (White)
1	Lamp Cover (Biscuit)
2	Console-Glass (Control Panel)
3	Breaker, 15 Amp
4	End Cap (Right)
4	End Cap (Biscuit Right)
4	End Cap (Biscuit Left)
4	End Cap (Left)
5	Button Plug (8 mm (2))
6	Panel, Support
6	Spacer, Timer
7	Thermostat
8	Knobs, Control (4) (Biscuit)
8	WP9752405FW Whirlpool Knob
9	Light, Indicator (Surface Unit (2))
10	Len`s Indicator (4)
11	Light Module (2)
12	Trim Strip
12	Trim Strip (Biscuit)
13	Switch, Oven Light (White)
13	Switch, Oven Light (Biscuit)
14	Outlet, Untimed (2) (White)
14	Outlet, Untimed (2) (Biscuit)
15	Timer
16	Knob, Timer (17) (Biscuit)
16	Knob, Timer (17) (White)
17	WPL 9753304
18	WPL 9755353PC
18	WPL 9755353PW
19	WP9750646 Whirlpool Infinite Switch
19	Infinite Switch (1800W)
19	WP9750643 Whirlpool Infinite Switch
20	Insert (2) (Biscuit)
20	Insert (2) (White)
21	Lampholder (2)
22	Starter, Holder
23	WPL 9755491
24	Light, Pilot
25	Starter, Light
26	Switch, Selector
27	WP9750343 Whirlpool Light Lens
28	WPL 9753017
29	WP3400832 Whirlpool Screw
30	Base, Console
31	WP4159387 Whirlpool Compactor Screw
32	W11245710 Whirlpool Refrigerator Screw
33	Panel, Control (Screw, (2) 8 x 3/8)
34	WP3400882 Whirlpool Screw
