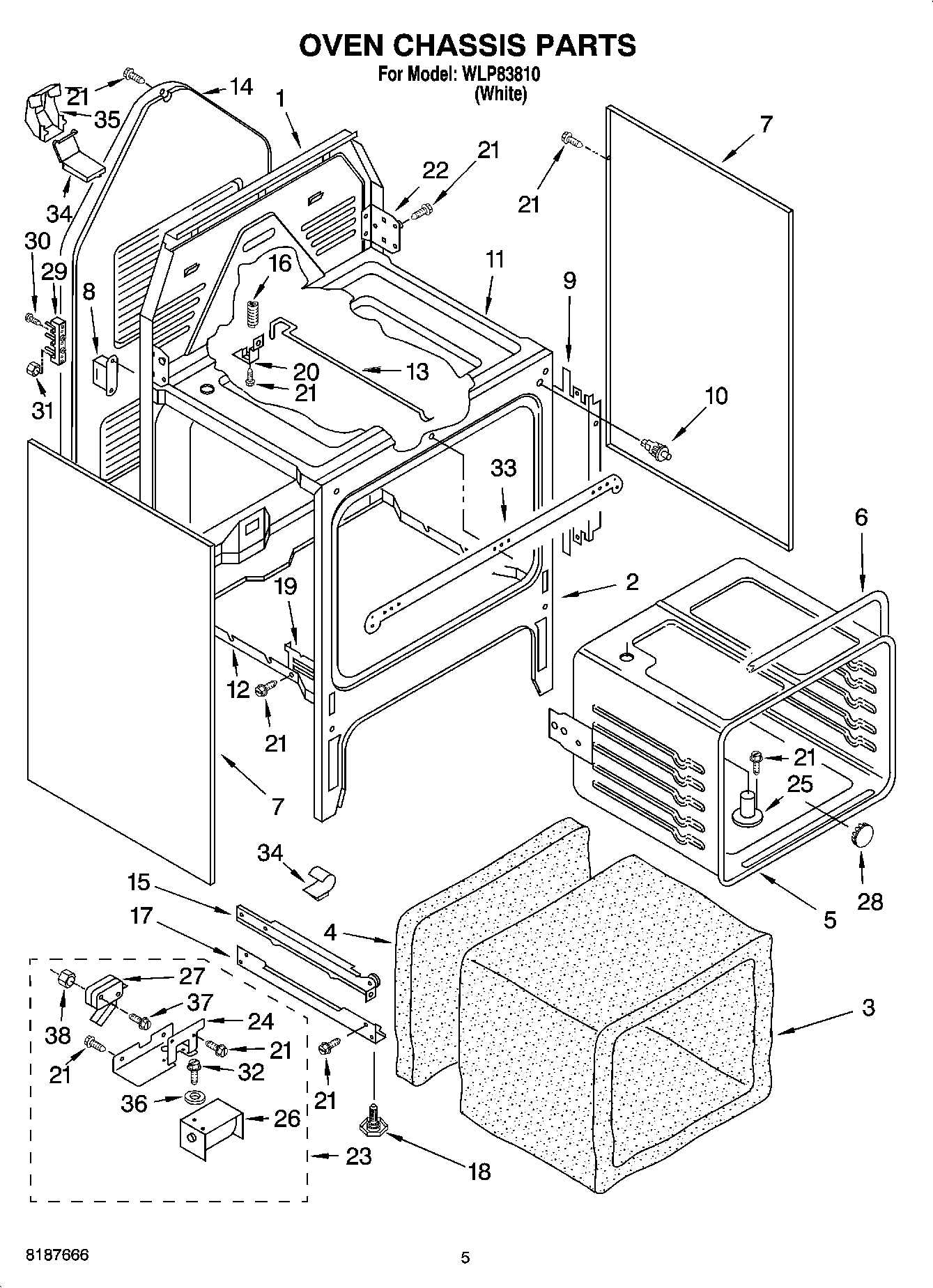

WLP83810 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Ballast
9	Shield, Insulation
10	Door Switch (Oven Light)
11	Burner Box
12	Oven Bottom
13	Rod, Lock
14	Panel, Rear
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Spring, Door Lock
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Bracket, Spring
21	WP4159387 Whirlpool Compactor Screw
22	Hinge, Cktp.-Right
22	Hinge, Cktp.-Left
23	Oven Lock Assembly
24	Bracket, Lock
25	Vent Tube
26	Solenoid
27	Switch, Interlock
28	Button, Plug
29	WP8203546 Whirlpool Terminal Block
30	Screw, (2) 10-16 x 1
31	WP112432 Whirlpool Nut Assembly
32	Screw (2) 10-32 x 5/16
33	Guard, Wire
34	Cover, Vent
35	Back, Vent
36	Washer (2)
37	Screw, (2)
38	Nut (2)
