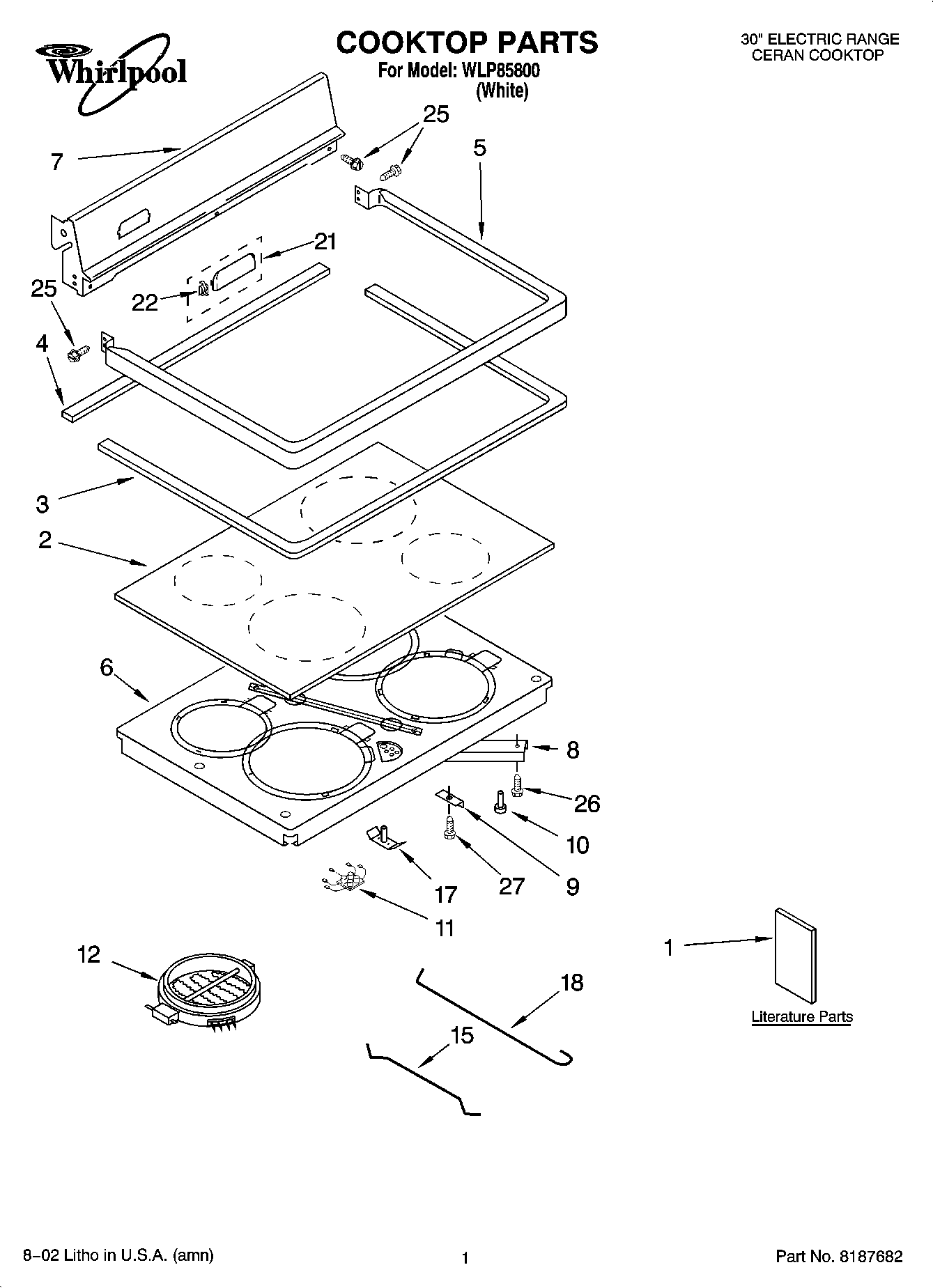

WLP85800 01 – COOKTOP PARTS

WLP85800 01 – COOKTOP PARTS

Written by

in

WLP85800 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Service Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1WPL LIT9752776
2Cooktop, Ceran
3WP9780939 Whirlpool Cooktop Gasket
4Rear Gasket
5Frame, Cooktop (White)
6Support, Element
7Back Splash (White)
8Brace, Support
9Support Clips (4)
10238614 Whirlpool Bumper Hinge
11Hot Light
12Element, Surface (1800/800W Right)
12W10823699 Whirlpool Right Front Surface Element
12WP8523700 Whirlpool Surface Element
12W10823692 Whirlpool Dual Radiant Element
15Rod, Small Ceran Element
17WP9781235 Whirlpool Clip
18Rod, Large Ceran Element
21Cover, Vent (White)
22Clip, Vent Cover
22Spring, Warm Zone Element
25Back Splash (Screw (4) 10AB x 1/2“)
26Screw (4) 10 x 1/2
27Screw, (4) 10PH-B x 3/4
