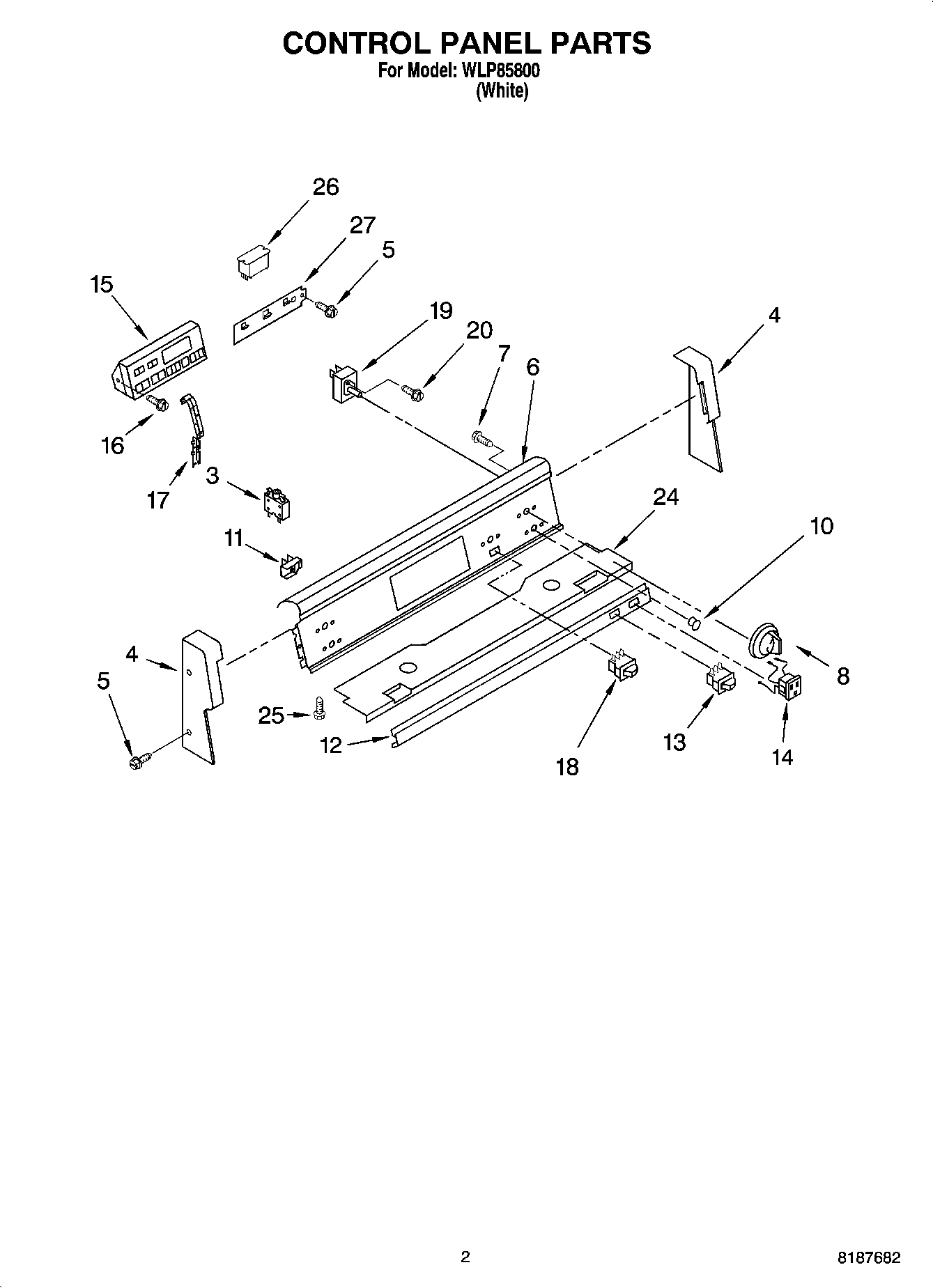

WLP85800 02 – CONTROL PANEL PARTS

WLP85800 02 – CONTROL PANEL PARTS

Written by

in

WLP85800 02 – CONTROL PANEL PARTS

Products

PositionProduct
3Breaker, 15 Amp
4End Cap (Left)
4End Cap (Right)
5WP4159387 Whirlpool Compactor Screw
6Panel, Control
7Panel, Control (Screw, (2) 8 x 3/8)
8Knobs, Control (5)
10WP9750343 Whirlpool Light Lens
11Light, Indicator (Surface Unit (2))
12Trim Strip
13Switch, Oven Light
14Outlet, Untimed
15Timer
16Screw (4) 10 x 1/2
17Bracket, Timer
18Switch, Warm Zone (White)
19WP9750639 Whirlpool Infinite Switch
19WP9750638 Whirlpool Infinite Switch
19WP9755173 Whirlpool Infinite Switch
20WP3400882 Whirlpool Screw
24Base, Console
25WP3400832 Whirlpool Screw
26WP9752759 Whirlpool Relay
27Support. Relay
