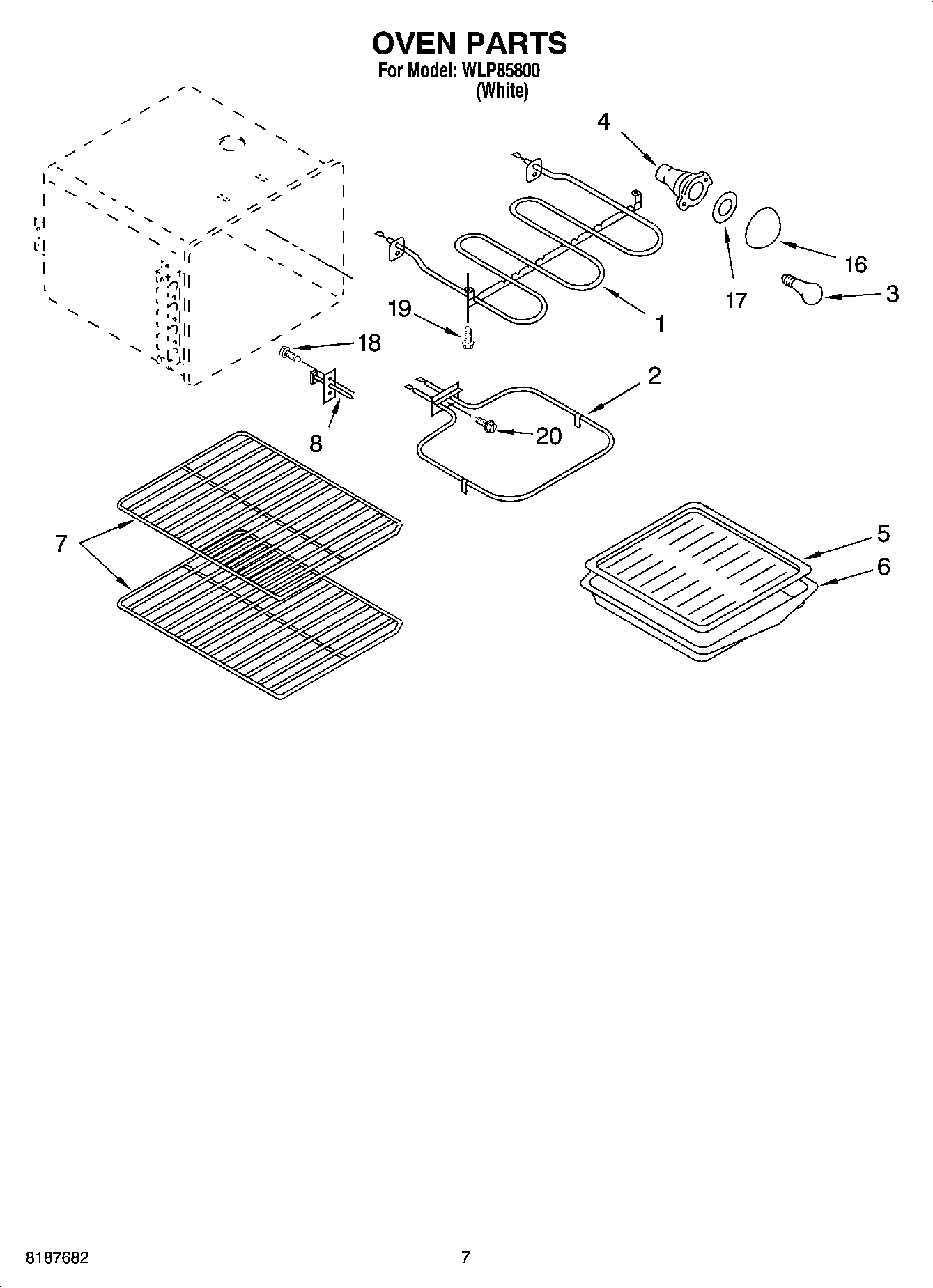

WLP85800 05 – OVEN PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI135987A
	WP9782182 Whirlpool Wire
	WPL 9753682
	WPL 9753680
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	8212471 Whirlpool Oven Paint
	Grease
	WPL ARI135986A
	WPL ARI135985A
	WPL ARI135984A
	WPL 9782133
	WPL 9781096
	WPL 9754100
	WPL 9752612
	WPL 9781291
	WPL 9752848
	PT400 Whirlpool Range Power Cord
	WPL ARI135988A
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP72107 Whirlpool Touchup
	FOIL, ALUMINUM OVEN (18“ X 25 )
	Almond (Uncut)
	SCREW
	WPW10208653 Whirlpool Insulation
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	Wire, 25“ Roll (White 14 GA.)
	WPW10339879 Whirlpool Wire Tie
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	WPL 9752771
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
1	Element, Broil
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
6	4396923 Whirlpool Broil Pan Set Gray Porcelain
7	Rack, Standard
8	Sensor
16	WP9781049 Whirlpool Light Lens
17	WP3184533 Whirlpool Range Light Lens Gasket
18	WP4159387 Whirlpool Compactor Screw
19	Screw
20	340184 Whirlpool Screw
