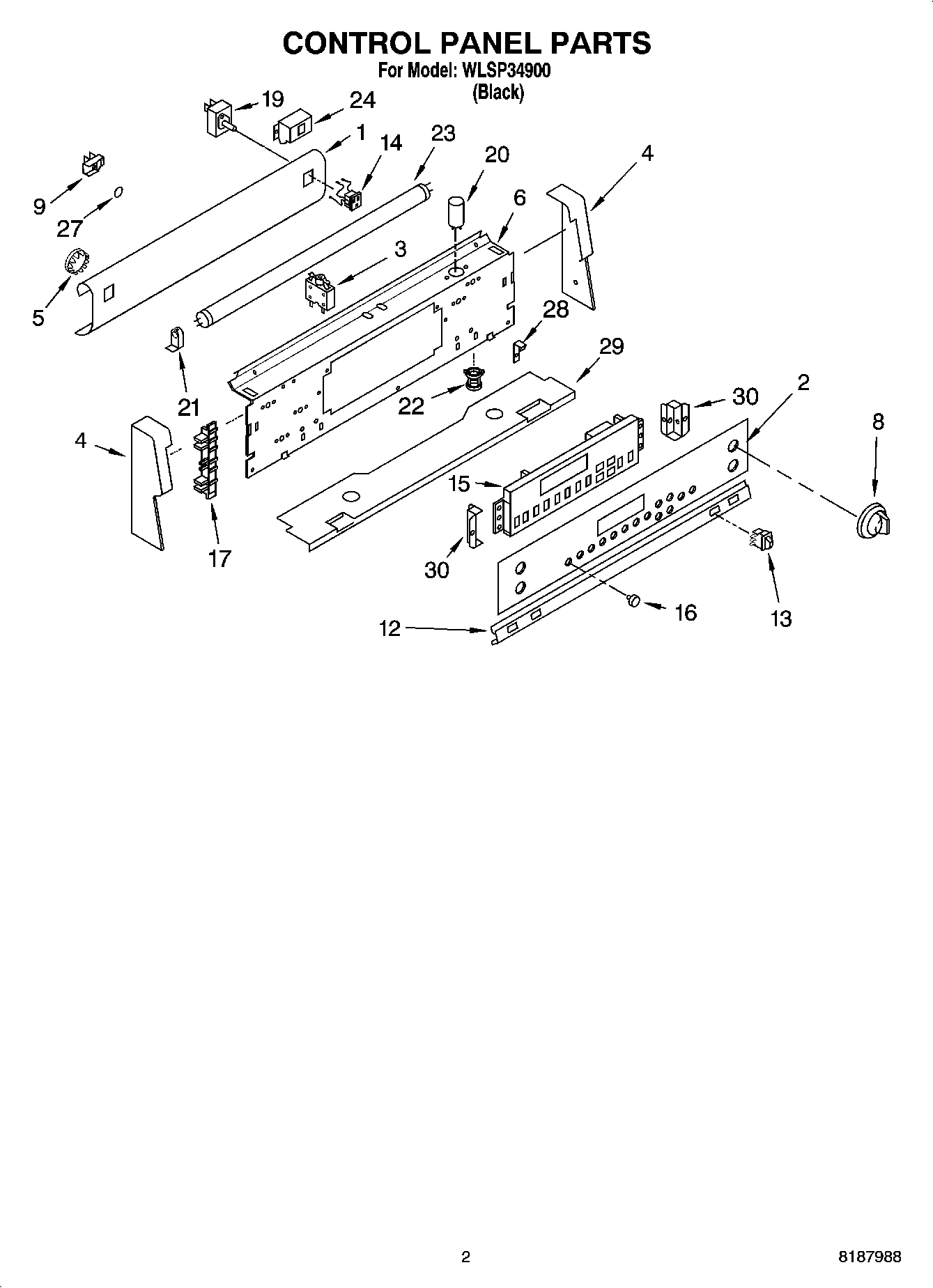

WLSP34900 02 – CONTROL PANEL PARTS

WLSP34900 02 – CONTROL PANEL PARTS

Written by

in

WLSP34900 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Lamp Cover (Black)
2Console-Glass (Black (Control Panel))
3Breaker, 15 Amp
4End Cap (Black, Right)
4End Cap (Black, Left)
5Button Plug (8 mm (2))
6Panel, Control
8Knobs, Control (4) (Black)
9Light, Indicator (Surface Unit (2))
12Trim Strip (Black)
13Switch, Oven Light (Black)
14Outlet, Untimed (2) (Black)
15Spacer, Timer
15Timer
16Knob, Timer (17) (Black)
17Insert (2) (Black)
19WP9750646 Whirlpool Infinite Switch
19WP3400882 Whirlpool Screw
19WP9750643 Whirlpool Infinite Switch
20Starter, Light
21Lampholder (2)
22Starter, Holder
23WPL 9755491
24WPL 9755353PB
27WP9750343 Whirlpool Light Lens
28WPL 9753017
29Base, Console
29WP3400832 Whirlpool Screw
30WPL 9753304
30WP4159387 Whirlpool Compactor Screw
