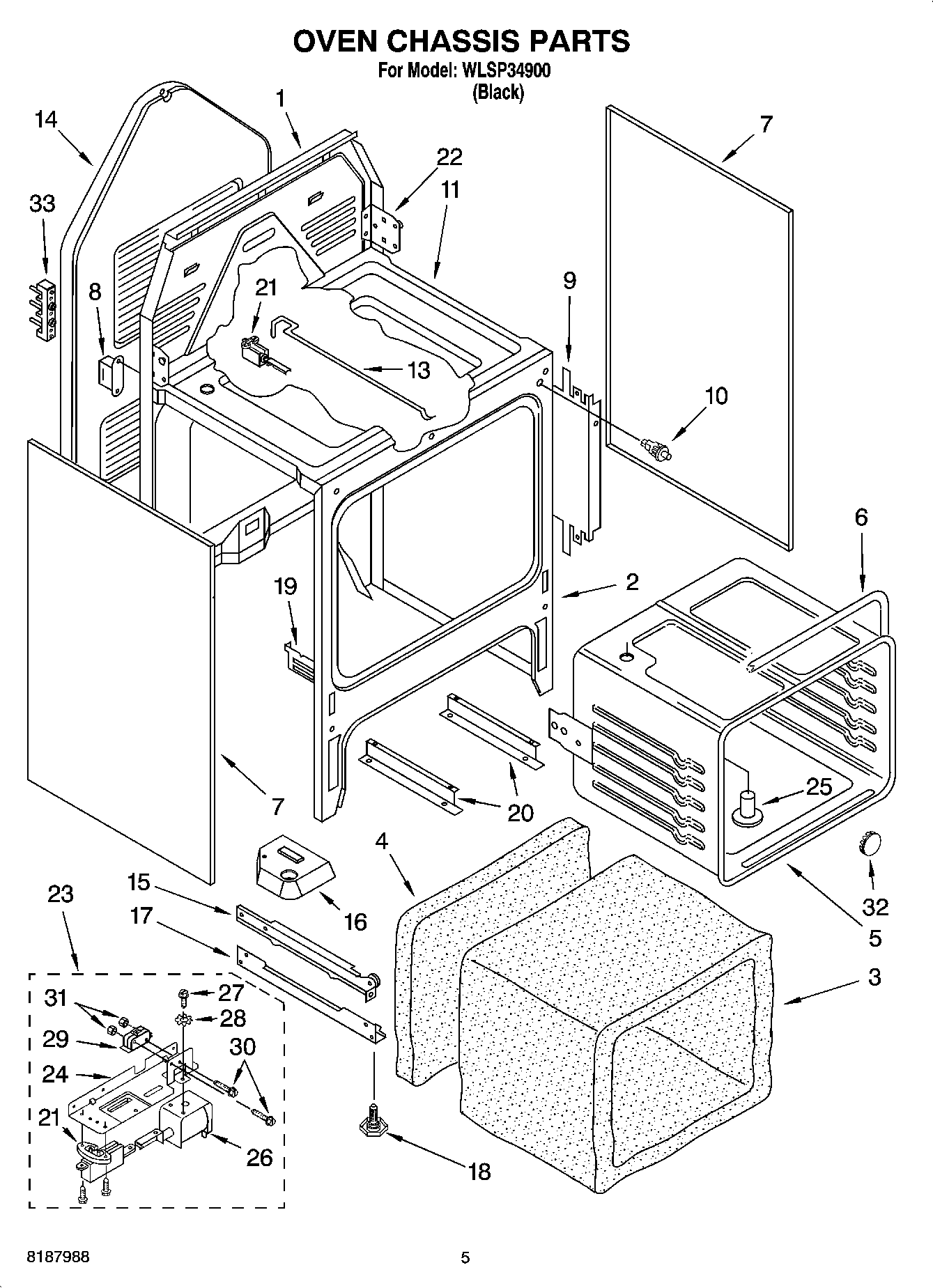

WLSP34900 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
8	Ballast
9	Shield, Insulation
10	Door Switch (oven Light)
11	Burner Box
11	Washer (3)
11	Screw, (2)
13	Rod, Lock
14	Panel, Rear
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Block, Balance
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Screw (4) 10 x 1/2
19	Hinge, Base L or R
20	Support Rail
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
23	Oven Lock Assembly (Includes No.21)
24	WP4159387 Whirlpool Compactor Screw
24	Bracket, Lock
25	Vent Tube
26	Solenoid
27	Screw (2) 10-32 x 5/16
28	Washer (2)
29	Switch, Interlock
30	Screw, (2)
31	Nut (2)
32	Button, Plug
33	WP8203546 Whirlpool Terminal Block
33	Screw, (2) 10-16 x 1
33	WP112432 Whirlpool Nut Assembly
