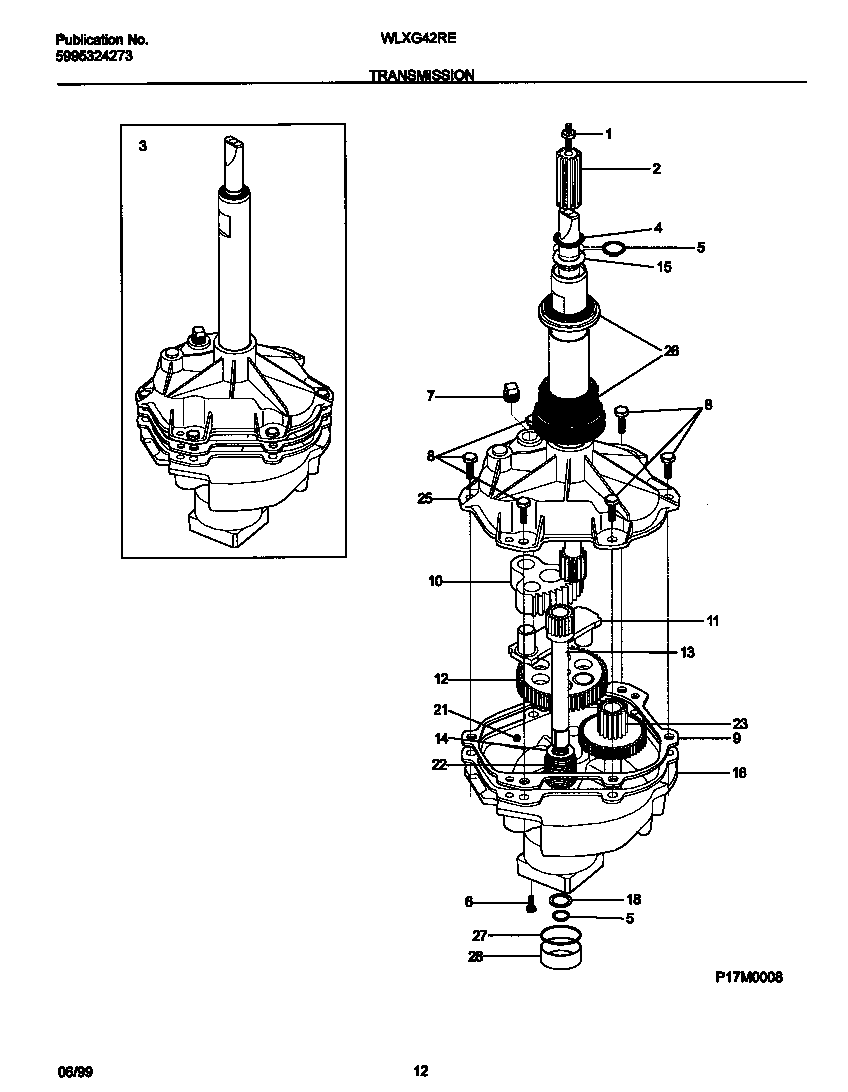

WLXG42RED0 07 – P17M0008 TRANSMISSION

Products

Position	Product
*62488	WCI 131661200
*62487	WCI 131381400
1	WCI 131206800
2	134418700 Frigidaire Agitator Drive Hub
3	134735700 Frigidaire Transmission Assembly
4	5303161307 Frigidaire Dryer Seal Assembly
5	WCI 5303161223
6	134197900 Frigidaire Screw
7	WCI 5303161224
8	WCI 5308002804
9	GASKET
10	WCI 5308011268
11	WCI 131632701
12	WCI 5308015496
13	WCI 5308014905
14	WCI 5303161226
15	THRUST WASHER
16	WCI 131557800
18	WCI 5308002475
21	OIL-TRANSMISSION (1 QT)
22	WCI 131417600
23	WCI 5303161175
25	WCI 131586600
26	SEAL-TUB
27	WCI 131784300
28	131784400 Frigidaire Spacer Transmission Bearing
