WM3570HVA 0

Products

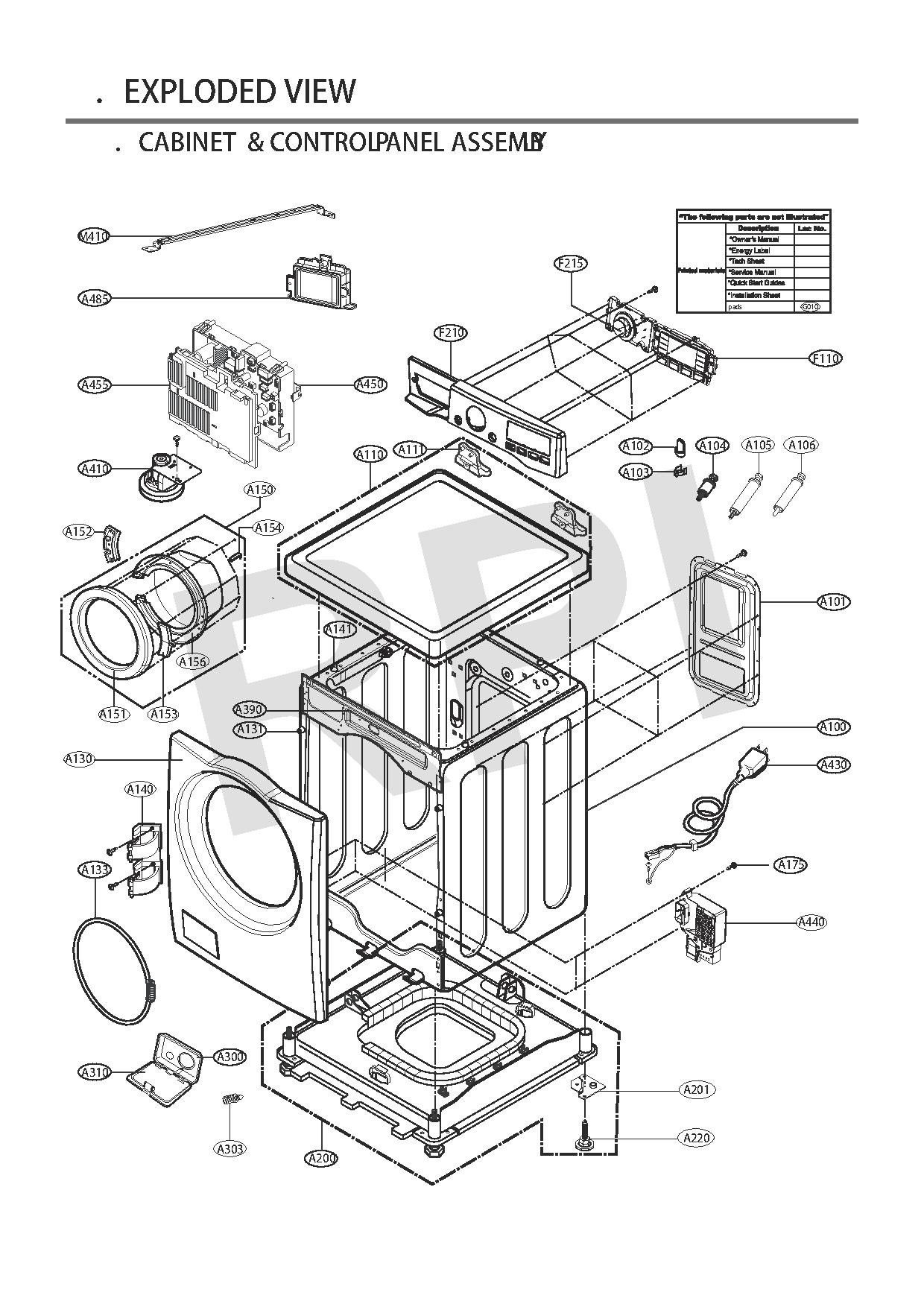

Position	Product
F110	EBR78534405 LG Control Board Assembly Power Display
A300	Case
A390	ADV74430502 LG Frame Assembly
M410	MDQ64376301 LG Body Frame
A200	AAN74468803 LG Cabinet Base Assembly
G010	Sheet,Installation
A156	AEJ74840001 LG Washer Holder Assembly
A485	EAM60991309 LG Filter Assembly
A154	MFG63099101 LG Locker Hook
A130	MCK67662703 LG Cabinet Cover
A140	AEH71610401 LG Washer Door Hinge Assembly
A450	PCB Assembly,Main
A450	EBR80360702 LG Main PCB Assembly
A153	MEB63234001 LG Handle
A152	MDQ62136701 LG Inner Door Frame
A150	ADC74545701 LG Door Panel
A151	MDQ63856301 LG Outer Door Frame Assembly
F210	Panel Assembly,Control
F110	EBR78534409 LG Display Power Control PCB Assembly
A455	3550ER1032A LG Protective Cover
A430	EAD61246487 LG Power Cord Assembly
A410	6601ER1006G LG Washer Pressure Switch Water Level Sensor
A105	FAA30992202 LG Washer Bolt Assembly
A104	FAA31690701 LG Washer Transit Shipping Bolt Assembly
A103	4930EN3007A LG Holder Assembly
A102	MBF62784301 LG Bush
A101	3550EN1023K LG Rear Cover
A100	ABJ73888505 LG Cabinet Assembly
A440	EBF61315802 LG Washer Lid Lock Switch Assembly
F215	4941ER3005A LG Dryer Control Knob
A106	FAA31690705 LG Washer Bolt Assembly
A110	AGU73909707 LG Top Plate Assembly
A310	MBL62818303 LG Cover Cap
A303	5006EN3015A LG Washer Drain Hose Cap
A220	AFC72909305 LG Washer Leg Assembly
A201	4810ER3006A LG Base Bracket
A175	AGM75390001 LG Parts Assembly
A141	AEJ33026401 LG Holder Assembly
A133	ACA56078801 LG Washer Front Boot Seal Gasket Clamp Assembly
A111	MAZ63472802 LG Hinge Bracket
A131	AEJ33026601 LG Holder Assembly
