WM3770HVA 0

WM3770HVA 0

Written by

in

WM3770HVA 0

Products

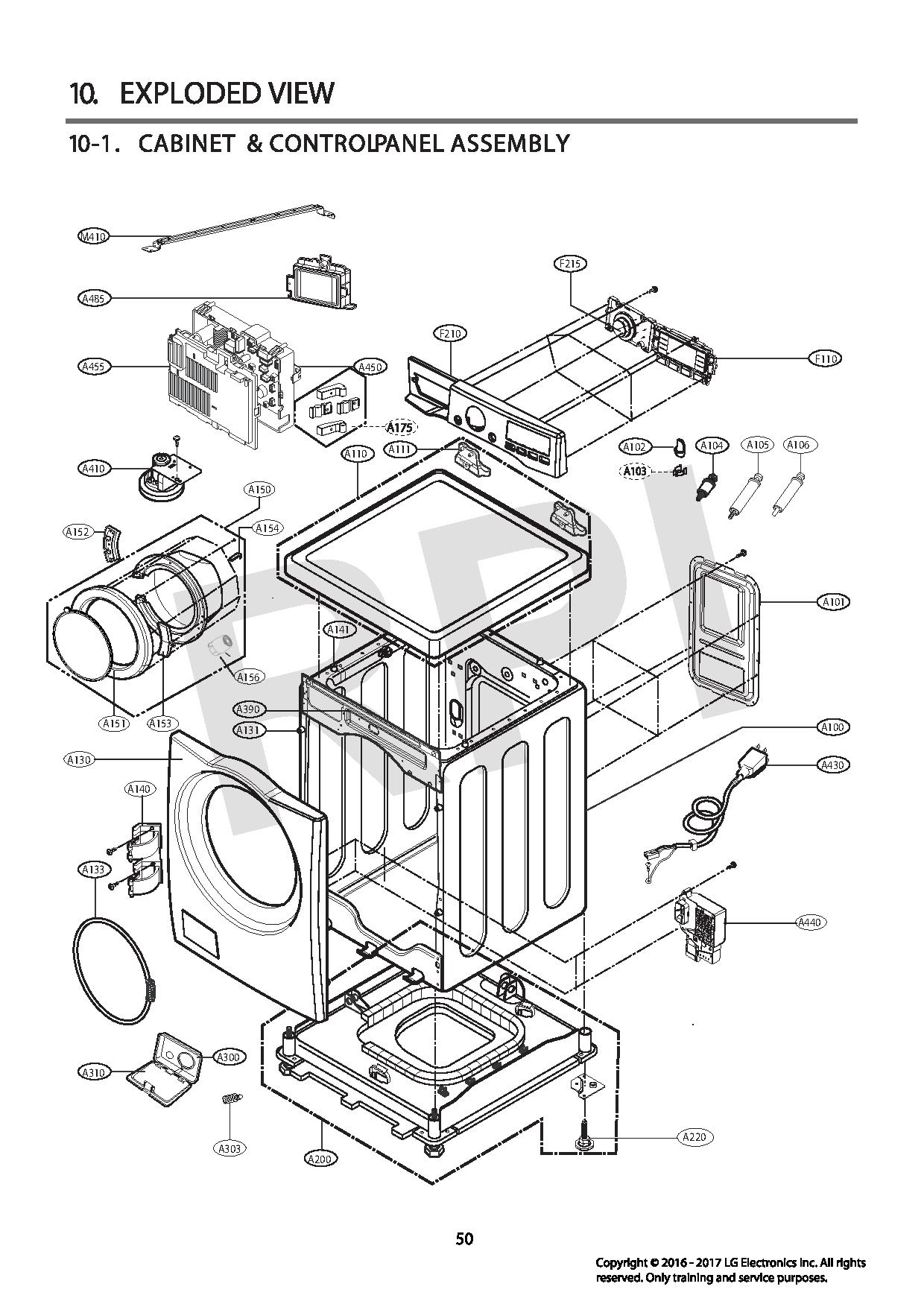

PositionProduct
F210AGL74115146 LG Control Panel Assembly
A300Case
A130MCK58110501 LG Cabinet Cover
A105FAA31690703 LG Washer Long Bolt
A1024830ER3001A LG Bushing
A1013550ER1028A LG Back Cover
A200AAN74468825 LG Cabinet Base Assembly
A152Package Assembly,C/SKD
A156AEJ74840001 LG Washer Holder Assembly
A1114810ER3021C LG Washer Hinge Bracket
A100ABJ30921785 LG Cabinet Assembly
A300MBN47927902 LG Case
A110AGU73909710 LG Top Plate Assembly
F210AGL74115130 LG Control Panel Assembly
F110EBR78898205 LG Display Power Control Board Assembly
A450EBR81785202 LG Main Assembly PCB
A450EBR79950226 LG Main PCB Assembly
A390ADV76031501 LG Frame Assembly
A200AAN74468810 LG Cabinet Base Assembly
A157MDQ63518001 LG Inner Door Frame
A153MEB61914501 LG Handle
A151MDQ63856301 LG Outer Door Frame Assembly
A150ADC74154907 LG Door Panel
A154MFG63099101 LG Locker Hook
A4553550ER1032A LG Protective Cover
A102MBF62784301 LG Bush
A175AGM73409001 LG Washer Door Hinge Bushing Kit
A485EAM60991315 LG Washer Machine Noise Filter Assembly
A440EBF61315802 LG Washer Lid Lock Switch Assembly
A140Hinge Assembly
A104FAA31690704 LG Short Washer Bolt
A1034930EN3005A LG Holder
A1013550ER1028M LG Rear Cover
A4306411ER1005B LG Power Cord Assembly
F2154941ER3005A LG Dryer Control Knob
A3903211ER1001Z LG Frame Assembly
A430EAD61246431 LG Power Cord Assembly
A4106601ER1006G LG Washer Pressure Switch Water Level Sensor
A310MBL62818303 LG Cover Cap
A3035006EN3015A LG Washer Drain Hose Cap
A220AFC72909305 LG Washer Leg Assembly
A141AEJ33026401 LG Holder Assembly
A133ACA56078801 LG Washer Front Boot Seal Gasket Clamp Assembly
M410MDQ63616301 LG Body Frame
A110AGU73909707 LG Top Plate Assembly
A106FAA31690705 LG Washer Bolt Assembly
M4103210ER1318A LG Frame Body
A131AEJ33026601 LG Holder Assembly
