WM3997HWA 1

WM3997HWA 1

Written by

in

WM3997HWA 1

Products

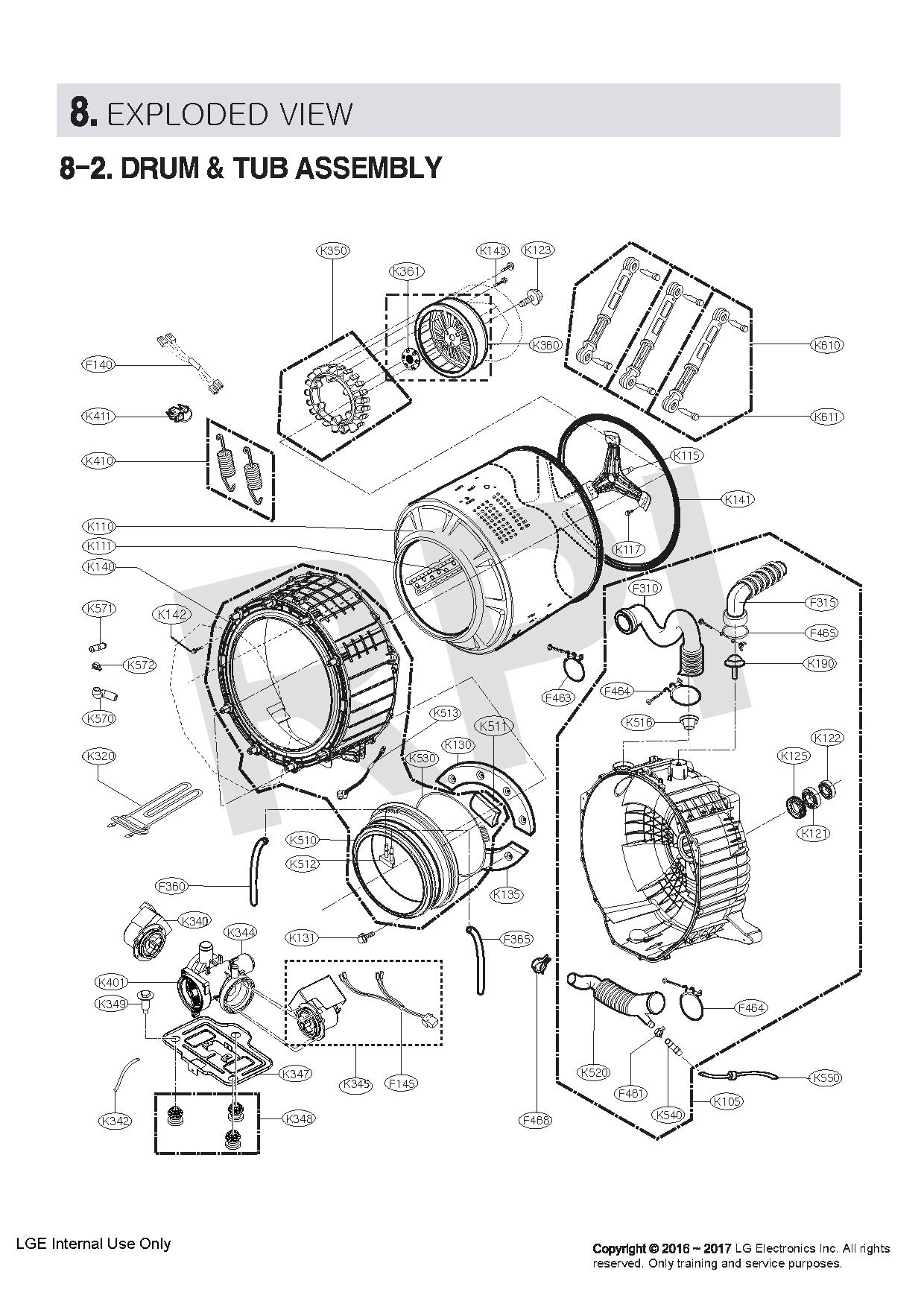

PositionProduct
K5505214FR4125N LG Inlet Hose
F140HARNESS-MULTI
K3504417EA1002Y LG Washer Stator Assembly
K6114774FR3118B LG Washer Shock Absorber Locking Pin
K610383EER3001V LG Washer Damper Shock Absorber Assembly
K5714932ER4007B LG Washer Drain Pump Hose Connector
K5403504ER3002A LG Washer Pressure Switch Air Chamber
K5164974ER3008A LG Water Guide
K513EAQ61400802 LG Washer LED Lamp
K512MCD62387102 LG Nozzle Connector
K5705214FR4058Y LG Washer Tub to Pump Hose
K5304861ER2001J LG Washer Door Boot Spring Clamp Assembly
K520BELLOWS ASSY
F1406877ER1016U LG Multi Harness
F3104738ER1004A LG Washer Bellows Drain Hose
K5114974ER2003A LG Water Guide
K510MDS63711203 LG Gasket
K340AGM74189101 LG Parts Assembly
K1414036ER4001B LG Washer Tub Gasket Seal
K140MCK47123502 LG Tub Cover
K135MAG47123701 LG Washer Balance Weight
K1304866ER1013A LG Washer Balance Weight
K1174011FA4353E LG Washer Common Bolt
K115MHW61841105 LG Spider
K111AFH72909001 LG Washer Lifter Assembly
K110AJQ54138214 LG Drum Assembly Inner Tub
K105AJQ73413804 LG Outer Tub Assembly
K349FAA30153701 LG Washer Common Bolt
K347MAZ41498201 LG Pump Bracket
K361MBF62845201 LG Rotor Bushing
K1224280FR4048Z LG Washer Tub Bearing Seal
F360MEJ62484601 LG Hose Connector
K1214280FR4048N LG Washer Tub Ball Bearing Set
K1234040FR4051C LG Washer Bolt Assembly
F3154738ER2002A LG Washer Drain Bellows
F4684861FR3068E LG Clamp Assembly
F4654860FR3092D LG Clamp
F4644860FR3092C LG Clamp
K401383EER2001F LG Assembly Parts
F1456877ER3003B LG Harness Assembly
K4114930FR3040A LG Washer Hinge Spring Holder
K4104970FR2084Z LG Washer Door Hinge Spring
F365MEJ62484602 LG Hose Connector
K125MDS62058301 LG Washer Rear Tub Gasket Seal
K360AHL72914401 LG Washer Rotor Assembly
K350STATOR ASSY
K345EAU61383503 LG Washer Circulation Pump AC Motor
K348MCQ41502701 LG Damper
K3443108ER1001E LG Washer Pump Casing
K342HOSE-CONNECTOR
K1434011FA4353B LG Washer Bolt
K3404681EA2001T LG Washer Drain Pump and Motor
K1421SZZFA4362C LG Customized Screw
K320AEG33121501 LG Washer Heater Assembly
K190FLOAT ASSY
K1311SZZER4002A LG Customized Screw
K5724861FR3068A LG Washer Hose Clamp
