WM4270HWA 0

WM4270HWA 0

Written by

in

WM4270HWA 0

Products

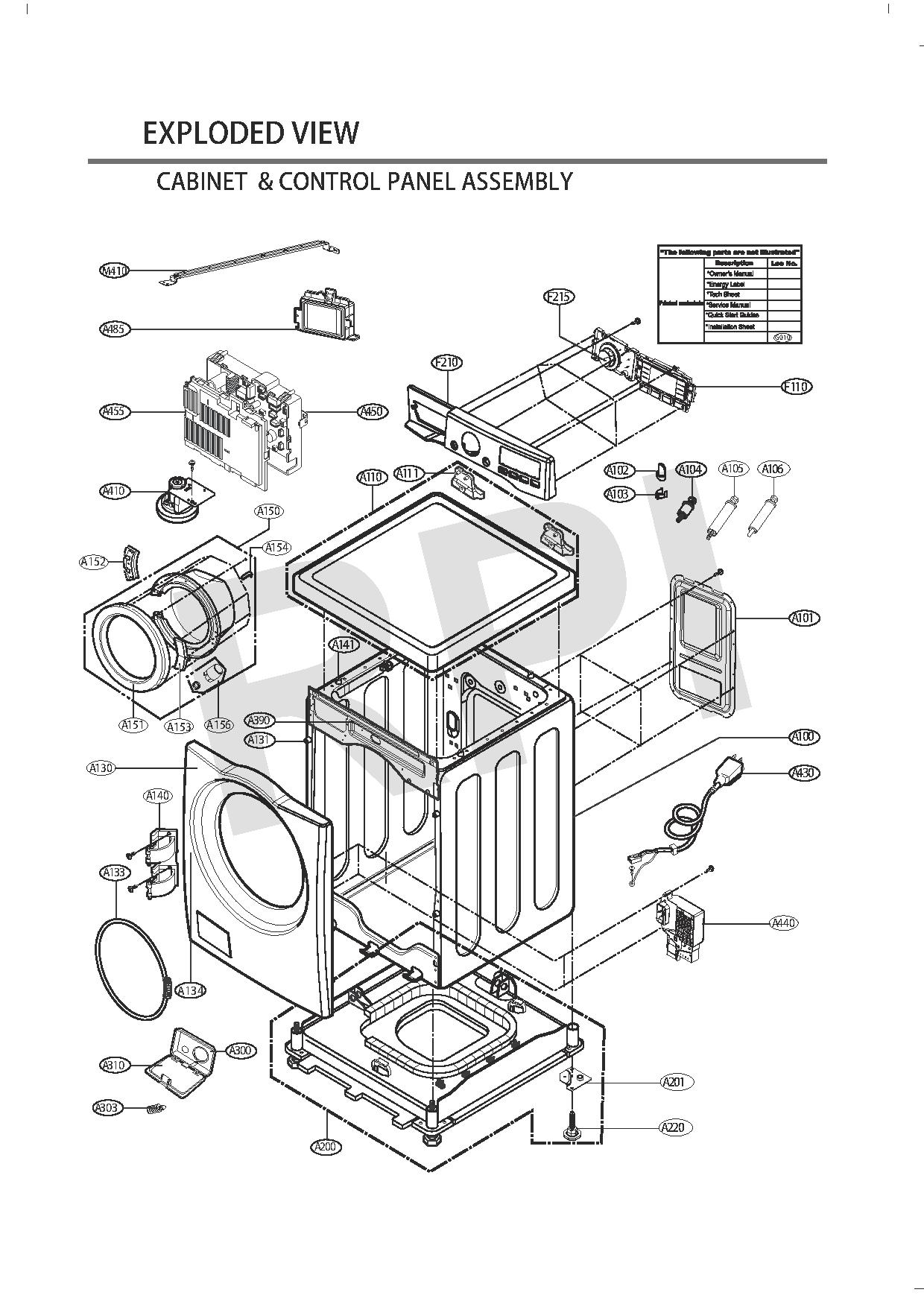

PositionProduct
F210AGL74773301 LG Control Panel Assembly
A151Frame,Door(Outer)
A150ADC73906101 LG Door Assembly
A140AEH75076301 LG Hinge Assembly
A134MAZ47156206 LG Hinge Bracket
A1114810ER3021A BRACKET-HINGE
A390ADV74430502 LG Frame Assembly
M410MDQ64376301 LG Body Frame
A200AAN74468803 LG Cabinet Base Assembly
A152Frame,Door(Inner)
A153MEB63874801 LG Handle
F110EBR78534406 LG Display Power Control Board Assembly
A450PCB Assembly,Main
A130MCK47135510 LG Cabinet Cover
A310MBL62818309 LG Cap Cover
A100ABJ73888504 LG Cabinet Assembly
F110EBR78534408 LG Refrigerator Display Power Control Board Assembly
A450EBR80360701 LG Washer Main PCB Assembly
A300Case
G010Sheet,Installation
A156AEJ74840001 LG Washer Holder Assembly
A485EAM60991309 LG Filter Assembly
A105FAA30992202 LG Washer Bolt Assembly
A104FAA31690701 LG Washer Transit Shipping Bolt Assembly
A1034930EN3007A LG Holder Assembly
A102MBF62784301 LG Bush
A1013550EN1023K LG Rear Cover
A440EBF61315802 LG Washer Lid Lock Switch Assembly
A110AGU73909705 LG Top Plate Assembly
F2154941ER3005A LG Dryer Control Knob
A106FAA31690705 LG Washer Bolt Assembly
A133ACA56078801 LG Washer Front Boot Seal Gasket Clamp Assembly
A154MFG63099101 LG Locker Hook
A4553550ER1032A LG Protective Cover
A430EAD61246487 LG Power Cord Assembly
A4106601ER1006G LG Washer Pressure Switch Water Level Sensor
A3035006EN3015A LG Washer Drain Hose Cap
A220AFC72909305 LG Washer Leg Assembly
A2014810ER3006A LG Base Bracket
A141AEJ33026401 LG Holder Assembly
A131AEJ33026601 LG Holder Assembly
