WM9000HVA 1

WM9000HVA 1

Written by

in

WM9000HVA 1

Products

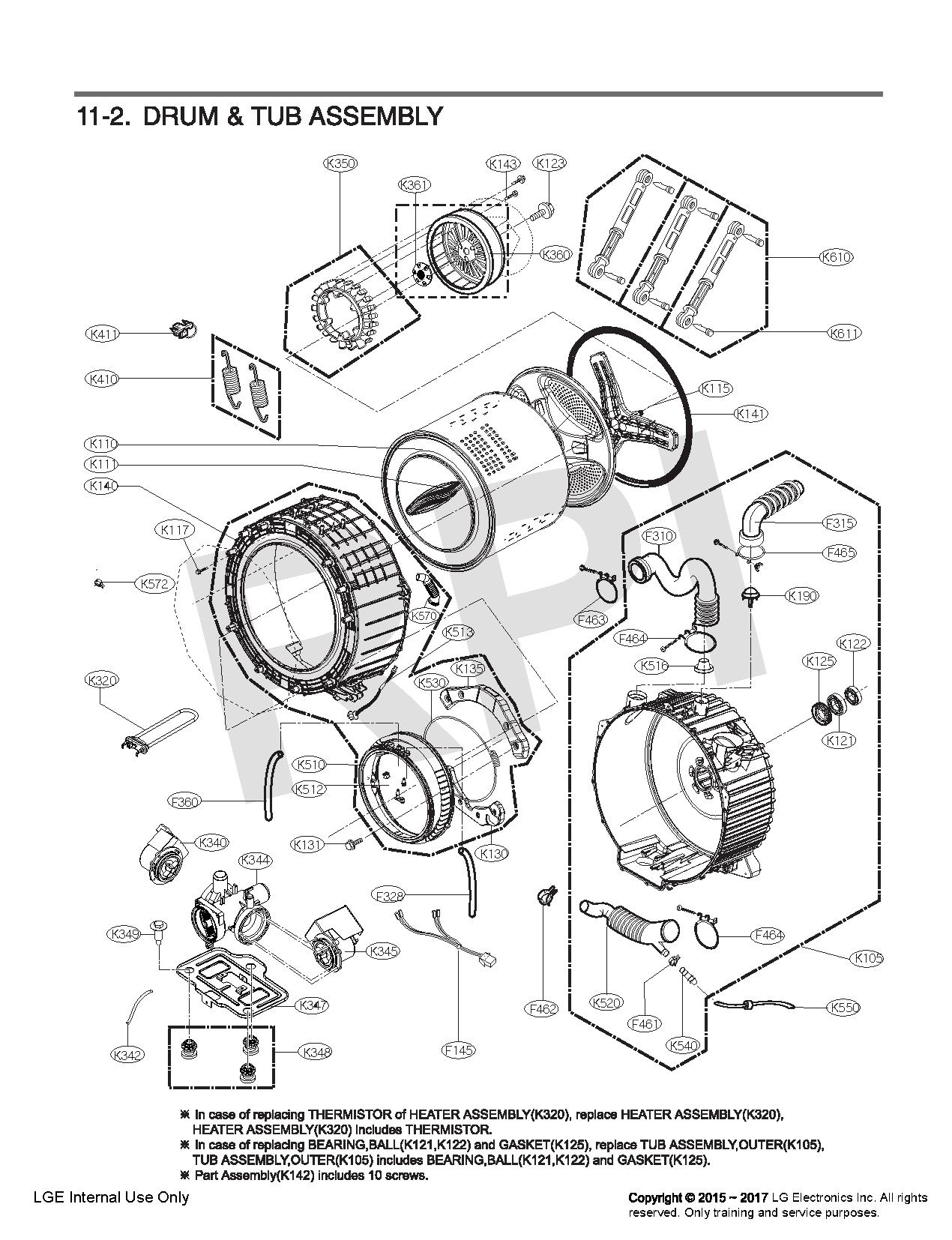

PositionProduct
K510MDS64974802 LG Gasket
K360AHL72914402 LG Washer Rotor Assembly
K5304861ER2001J LG Washer Door Boot Spring Clamp Assembly
K520BELLOWS ASSY
K350AJB73816005 LG Stator Assembly
K349FAA30153701 LG Washer Common Bolt
K347MAZ41498201 LG Pump Bracket
K345EAU61383503 LG Washer Circulation Pump AC Motor
K348MCQ41502701 LG Damper
K3443108ER1001E LG Washer Pump Casing
K342HOSE-CONNECTOR
K361Bush,Rotor
K410MHY62805901 LG Spring Hinge
K411MEG64919202 LG Holder
K140MCK66703602 LG Tub Cover
K5724860ER4001C LG Clamp Assembly
K5704738ER3002A LG Bellows
K6114774FR3118B LG Washer Shock Absorber Locking Pin
K610383EER3001V LG Washer Damper Shock Absorber Assembly
K550MEJ62305103 LG Inlet Hose
K5403504ER3002A LG Washer Pressure Switch Air Chamber
K5164974ER3008A LG Water Guide
K513EAQ61400802 LG Washer LED Lamp
K512MCD62387102 LG Nozzle Connector
K1434011FA4353B LG Washer Bolt
K3404681EA2001T LG Washer Drain Pump and Motor
F3104738ER1004B LG Washer Fill Hose Bellows
K111MFE61881101 LG Washer Lifter
K110AJQ73314402 LG Washer Inner Tub Assembly
K105AJQ73314202 LG Outer Tub Assembly
F4614861FR3068E LG Clamp Assembly
F4654860FR3092D LG Clamp
F4644860FR3092C LG Clamp
F328MEJ62484604 LG Hose Connector
F360MEJ62484603 LG Hose Connector
F1456877ER3003B LG Harness Assembly
F3154738ER2002A LG Washer Drain Bellows
K115MHW61901302 LG Spider
K1234040FR4051C LG Washer Bolt Assembly
K320AEG33121501 LG Washer Heater Assembly
K1414036ER4001E LG Gasket
K190FLOAT ASSY
K135MAG62142801 LG Balance Weight
K1311SZZER4002A LG Customized Screw
K125MDS62058301 LG Washer Rear Tub Gasket Seal
K130MAG62142901 LG Washer Balance Weight
K1174000FR4031C LG Screw Customized
K1224280FR4048Z LG Washer Tub Bearing Seal
K1214280FR4048N LG Washer Tub Ball Bearing Set
F4624861FR3068A LG Washer Hose Clamp
