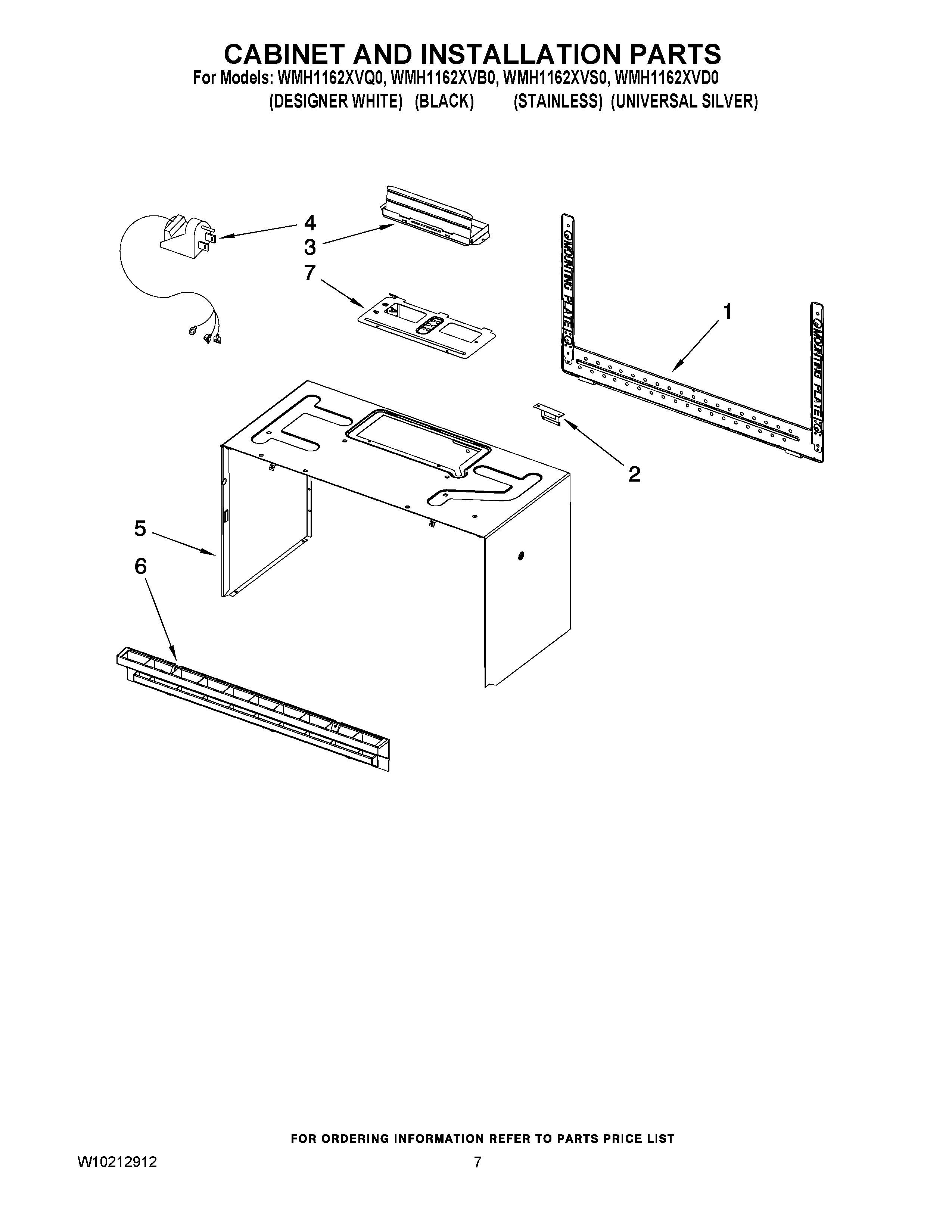

WMH1162XVB0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	Main Harness
NI	W10470168 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	Grnd Wire, Filter
NI	H.V. Wire Assy
NI	W10138802 Whirlpool Microwave Screw
NI	MISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY
NI	Hdlmp/TT Wire Assy
NI	W10821385 Whirlpool Hardware Kit
NI	W10539842 Whirlpool Microwave Harness Wire
1	WPW10269225 Whirlpool Bracket Mounting
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	8206388 Whirlpool Microwave Power Cord
5	CASE, OUTER (WHITE)
5	CASE, OUTER (BLACK)
6	W10269471 Whirlpool Microwave Vent Grille
6	W10259625 Whirlpool Microwave Vent Grille
7	COVER, HOOD FAN MOTOR
