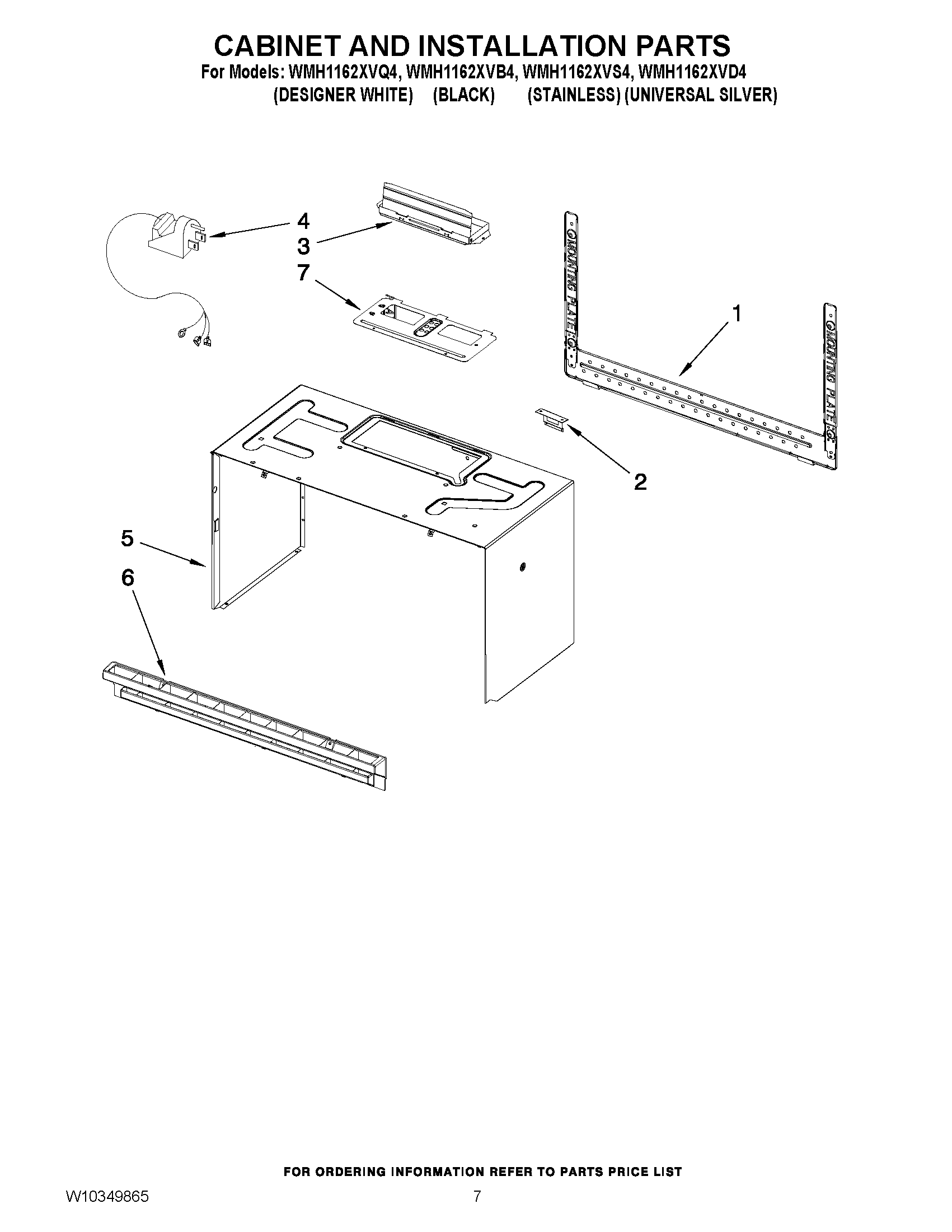

WMH1162XVB4 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NI	W10539842 Whirlpool Microwave Harness Wire
NI	MISCELLANEOUS PARTS, TEMPLATE, UPPER
NI	H.V. Wire Assy
NI	W10138802 Whirlpool Microwave Screw
NI	W10540464 Whirlpool Microwave Wire Harness
NI	W10821385 Whirlpool Hardware Kit
NI	W10539840 Whirlpool Microwave Wire Harness
NI	MISCELLANEOUS PARTS, HARNESS, WIRE TITAN
NI	W10539841 Whirlpool Microwave Wire Harness
1	WPW10269225 Whirlpool Bracket Mounting
2	8206385 Whirlpool Microwave Wire Clip
3	W10843943 Whirlpool Microwave Vent Damper
4	W10708076 Whirlpool Microwave Power Cord
5	CASE, OUTER (BLACK)
5	CASE, OUTER (WHITE)
6	W10269471 Whirlpool Microwave Vent Grille
6	W10259625 Whirlpool Microwave Vent Grille
7	COVER, HOOD FAN MOTOR
