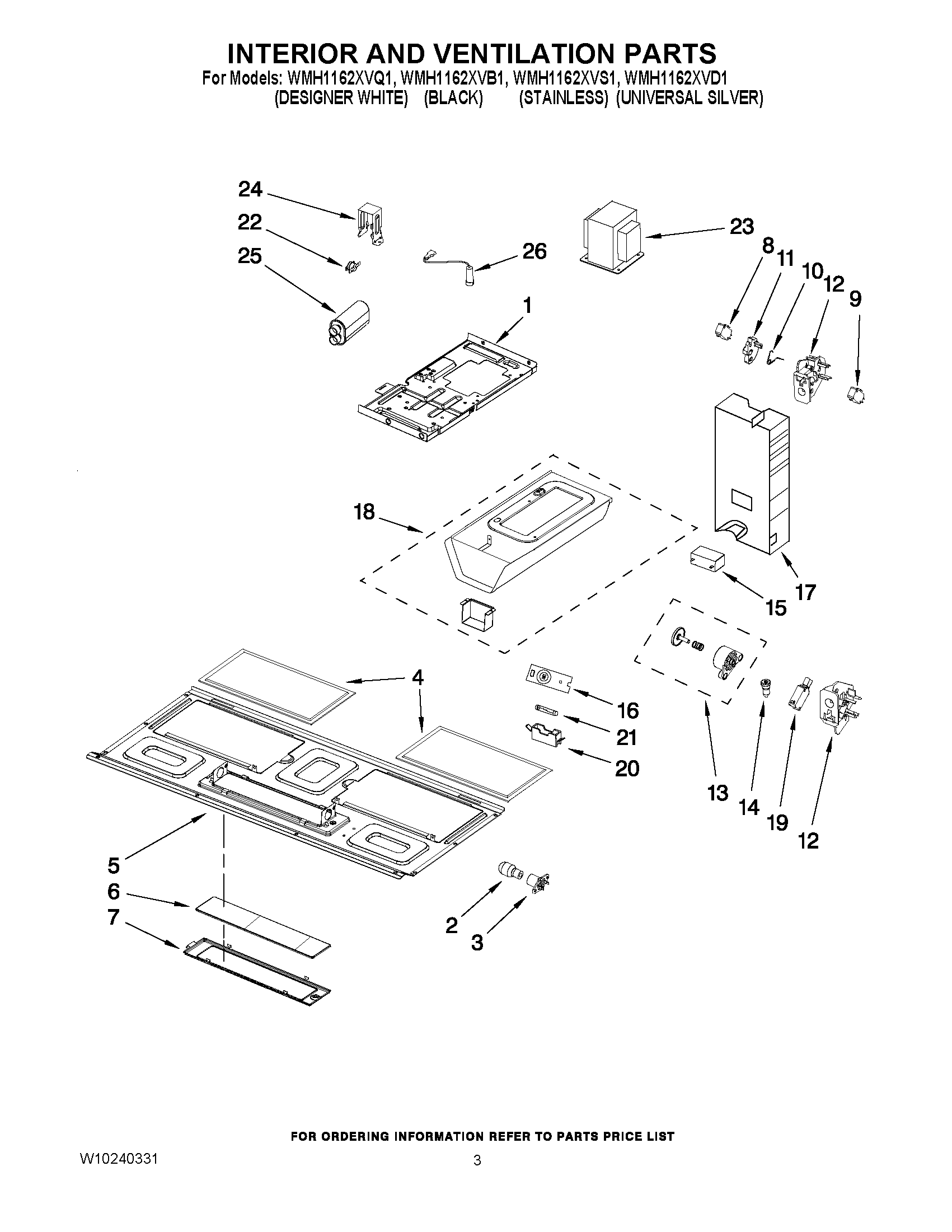

WMH1162XVD1 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	Chassis
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10181505 Whirlpool Grease Filter
5	PLATE, BOTTOM
6	WPW10210875 Whirlpool Microwave Lamp Glass Cover
7	HOLDER, GLASS
8	W10211972 Whirlpool Microwave Switch
9	W10269458 Whirlpool Microwave Door Switch
10	W10156812 Whirlpool Spring
11	W10562613 Whirlpool Microwave Interlock Cam Assembly
12	WP8206419 Whirlpool Microwave Top Interlock Support
12	WPW10156813 Whirlpool Microwave Bottom Interlock Support
13	W10197758 Whirlpool Microwave Piston
14	8206180 Whirlpool Microwave Screw
15	W11405832 Whirlpool Microwave Capacitor
16	W10163422 Whirlpool Microwave Thermistor
17	PLATE, SIDE
18	CHASSIS ASSEMBLY
19	W10211974 Whirlpool Microwave Door Interlock Micro Switch
20	HOLDER, FUSE
21	FUSE-THRML
22	W10269232 Whirlpool Microwave Thermostat Fix
22	Terminal Cvr, Lamp
23	Transformer, H.V.
24	W10532063 Whirlpool Microwave Bracket
25	CAPACTR-MG
26	W11256462 Whirlpool Microwave Diode
